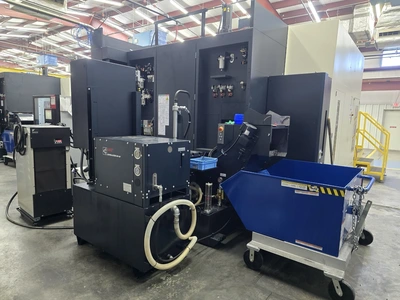

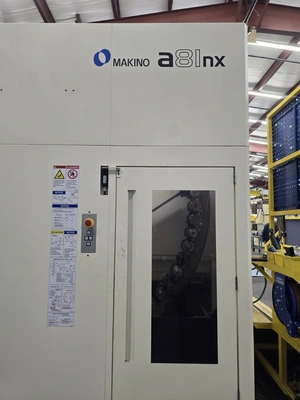

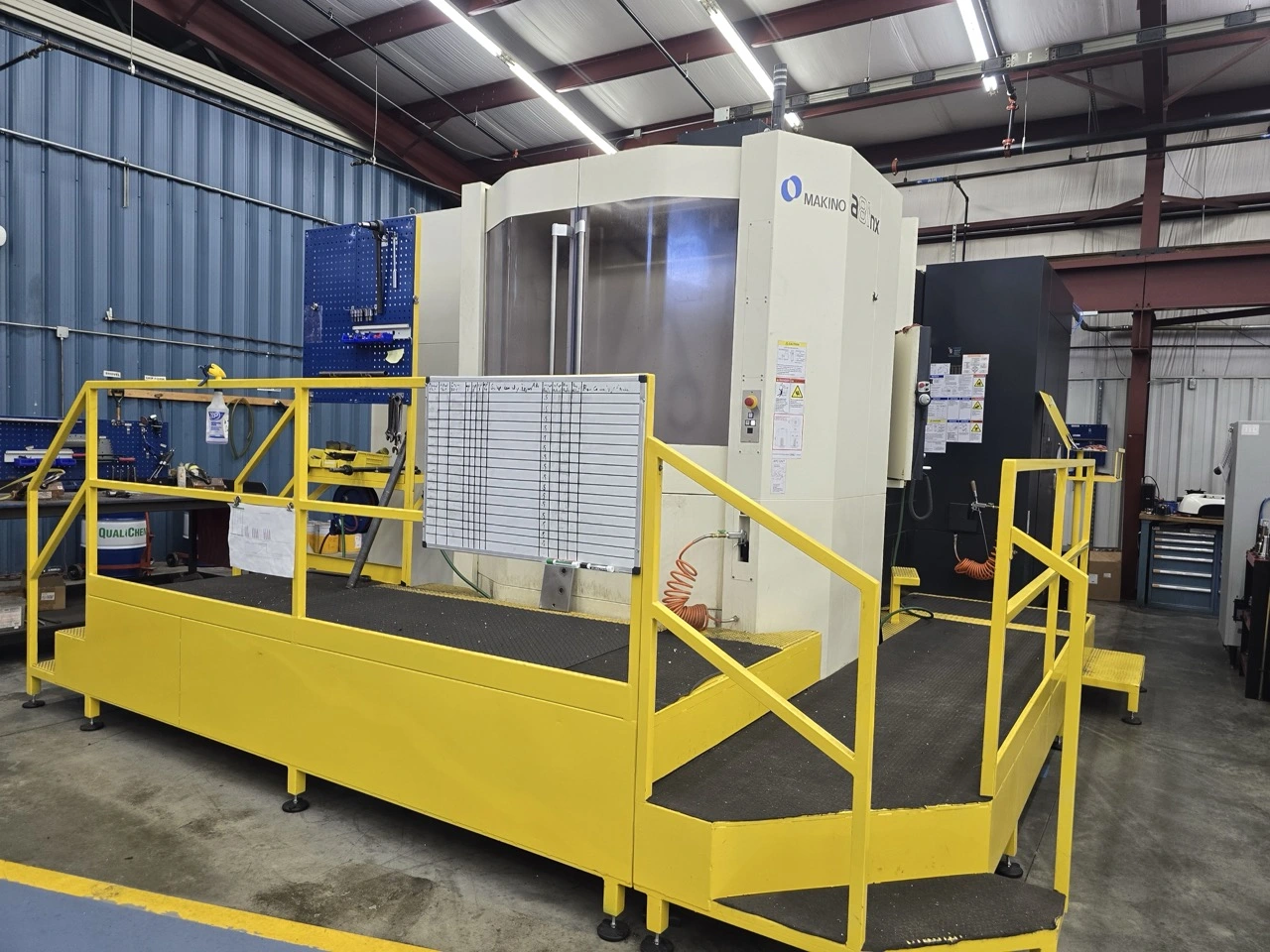

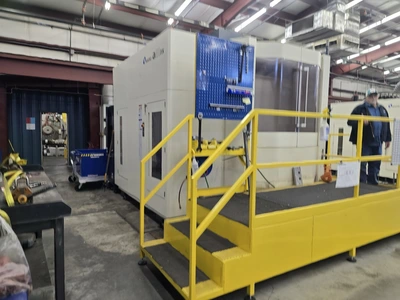

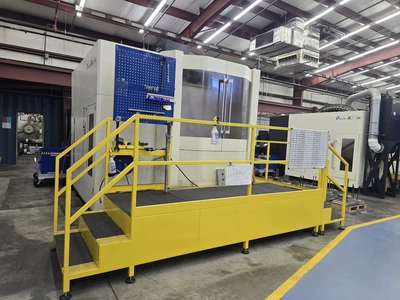

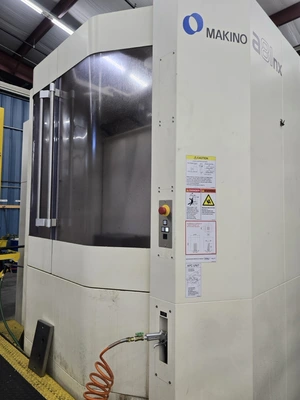

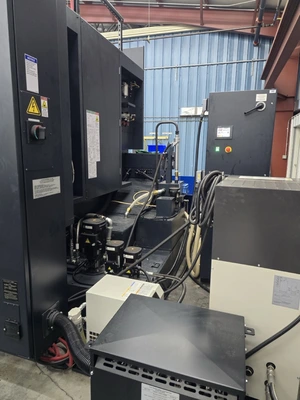

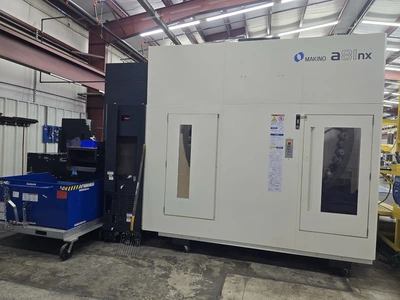

USED 2023 MAKINO A81NX

X-Axis Travel: 35.4″
Y-Axis Travel: 35.4″
Z-Axis Travel: 40.2″
B-Axis: 360° (full 4th Axis, bi-directional)
Pallet Size: 24.8″ x 24.8″
Pallet Count: 2
Spindle Taper: CAT 50
Spindle Speed: 50 – 10,000 RPM
Spindle Power: 60 HP (35 HP continuous)
Rapid Traverse: 1,968 in/min
Cutting Feedrate: 1,968 in/min
Max Workpiece: 39.4″ x 51.2″
Max Table Load: 2,645 lbs

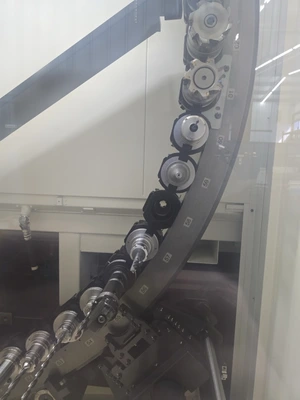

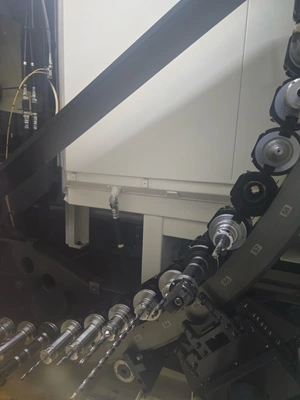

Auto Tool Changer: 60 Tools
Tool to Tool: 1.7 sec (12 kg tool)
Chip to Chip: 3.7 sec
Maximum Tool Length (Cat): 27.2″
Maximum Tool Diameter: 14.0″
Max Tool Weight: 66 lbs
Equipped with:

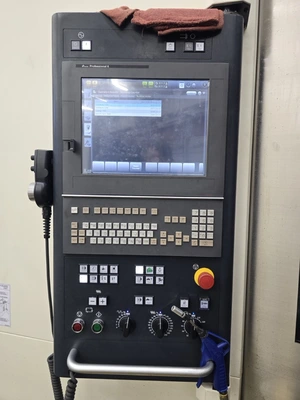

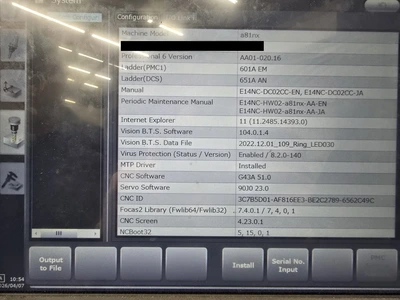

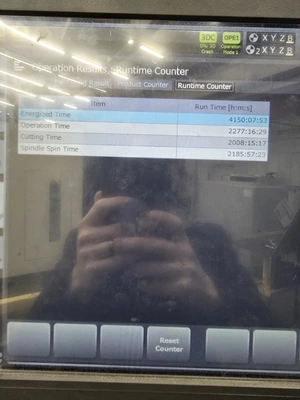

Pro6 CNC Control
Full 4th Axis- Bi-directional
Workpiece Wash Gun

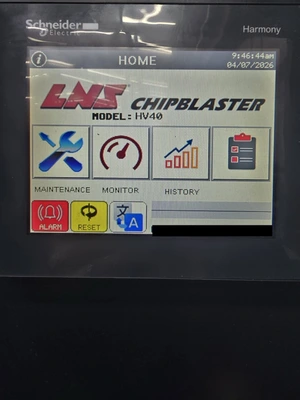

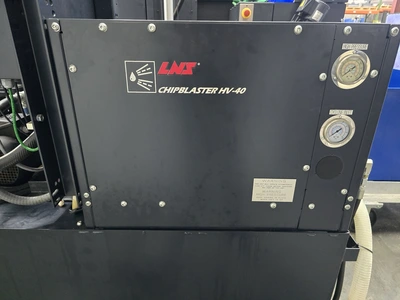

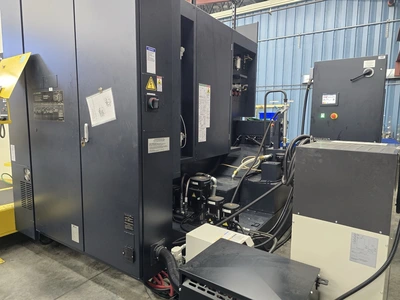

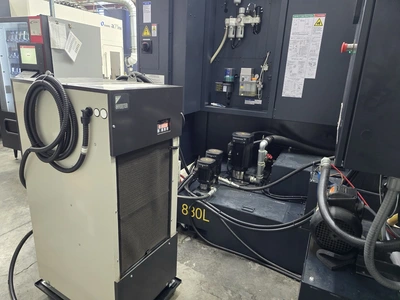

ChipBlaster HV40 1,000 psi Through Spindle Coolant
Rigid Tap
Full build sheet available at request
