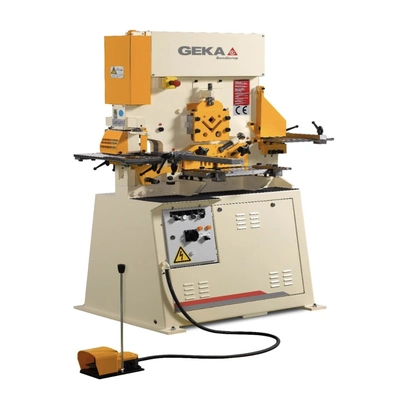

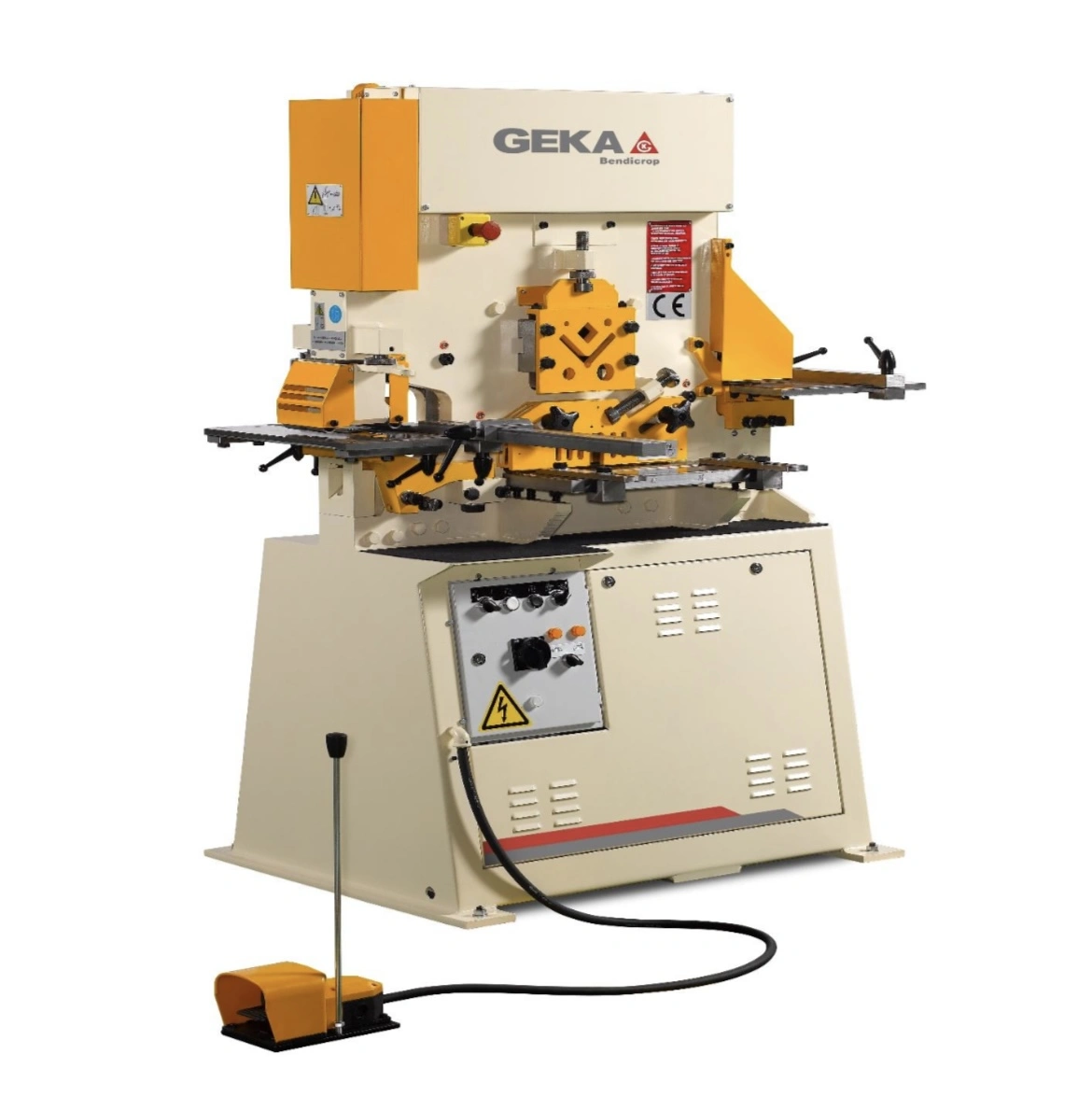

USED 2021 GEKA BENDICROP 50

Capacity: 55 Ton

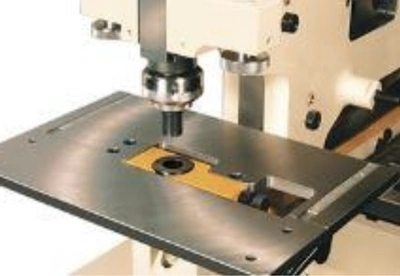

Punching
– Capacity: 55 Tons
– Throat Depth: 6-7/8”
– Working Height: 37-13/16”

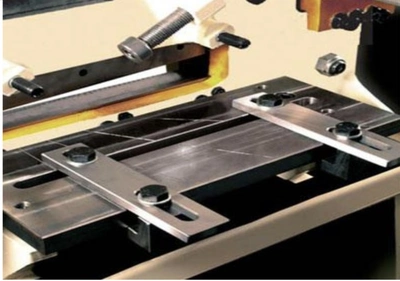

Flat Shearing Station
– Working Height: 34”
– Length of Blade: 14”
– Capacities: 14″ x 3/8” at 2o rake angle
14” x 9/16” at 4o rake angle

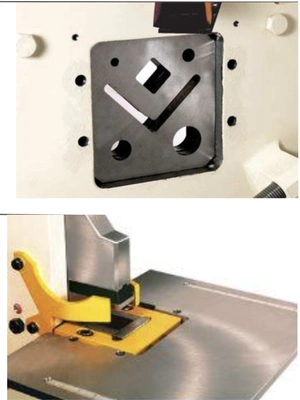

Angle and Shearing Station
– Tonnage: 55 Us Tons
– Working Height: 42-5/8”
– Capacities: 3” x 3” x 5/16”
– Openings for 3/8”, 9/16”,7/8”, 1-3/8” Round
– Opening for Square of 1-1/8”
Notching Station
– Width: 1-9/16”
– Depth: 3-1/2”
– Thickness: 3/8”
– Working Height 40-1/4”

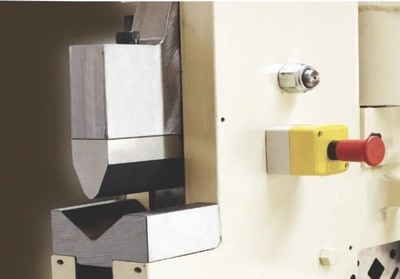

Bending Station
– Working Height 51-1/4”
– Maximum Thickness: 3/8”
Depth: 4”
– Width 1-5/8” (40mm) & 2-3/4” (70mm) V dies
