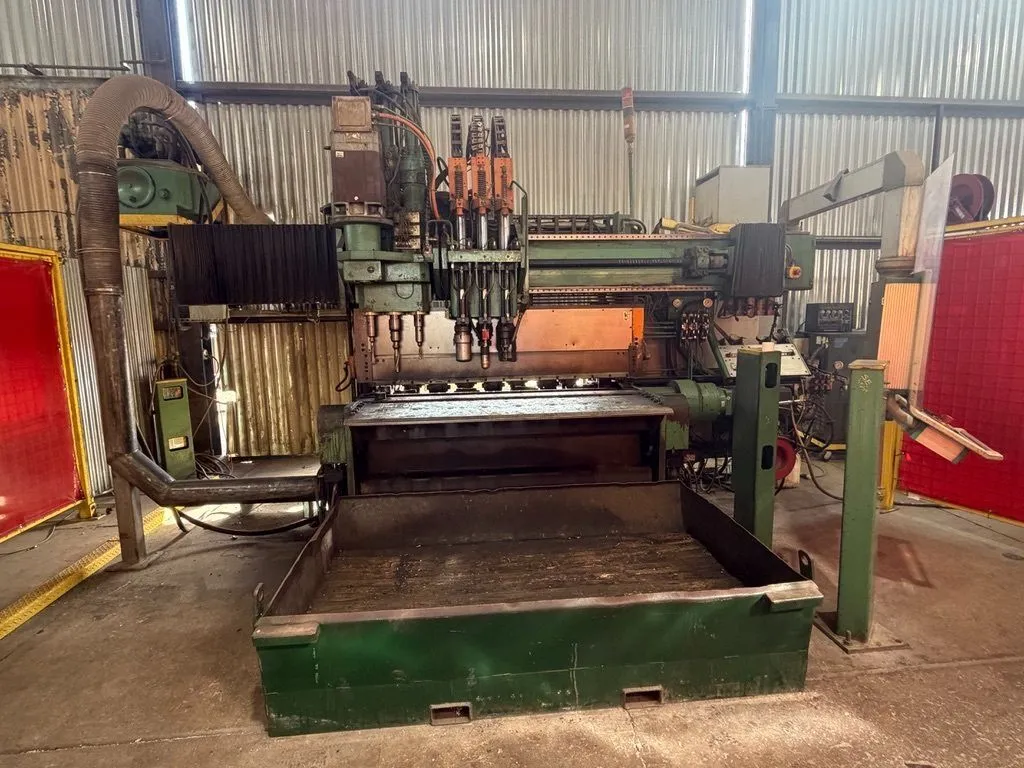

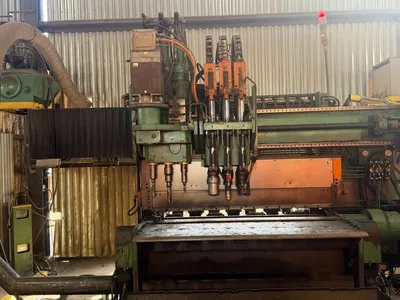

USED PEDDINGHAUS FDB 1500

Processing Capacity
Plate width: 80 – 1500 mm (≈ 3" – 59")

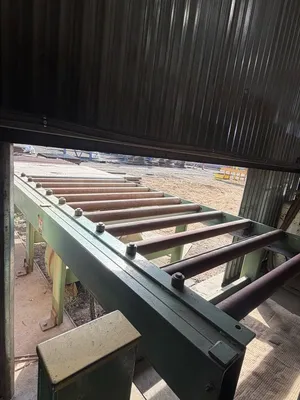

Plate length: Up to 6000 mm (≈ 20 ft), extendable with roller system
Plate thickness:
Min: 5–6 mm (≈ 3/16")
Max: 50 mm (≈ 2")
Max plate size: 1500 × 6000 mm

Drilling Specs

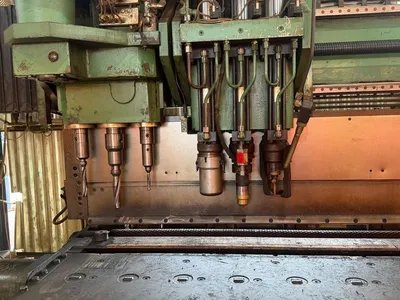

Number of spindles: 3 (standard configuration)
Drill diameter capacity:
Min: 8 mm (≈ 5/16")
Max: 40 mm (≈ 1.57")
Max drill size (manual spec): up to ~51 mm (2") depending on setup
Spindle power: ~15 HP (11.2 kW) per spindle
Spindle speeds (3-spindle setup):
Slow: ~62–623 RPM
Medium: ~75–757 RPM
Fast: ~90–907 RPM
Feed rates: ~1–12 in/min (25–300 mm/min)

Cutting System
Type: Oxy-fuel (autogen) torch standard

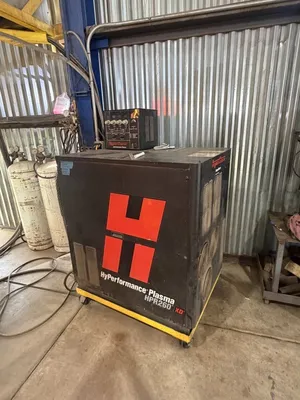

Optional: Plasma cutting systems (200–400 amp)
Integrated exhaust system under torch area

Machine & Power
Total power requirement: ~25 kW
Machine weight: ~6.5 tons
Machine dimensions (approx.):
2 m × 2.3 m × 2.8 m
