USED CINCINNATI M-4896

Equipped With

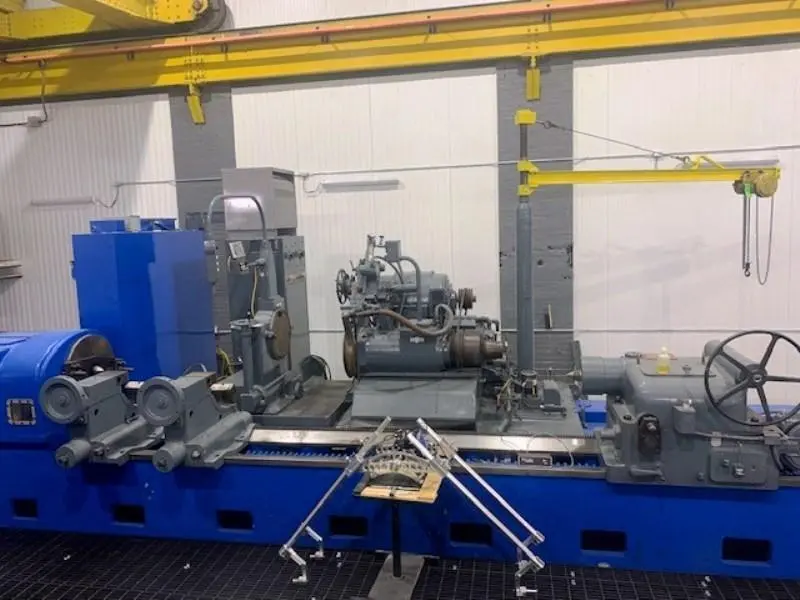

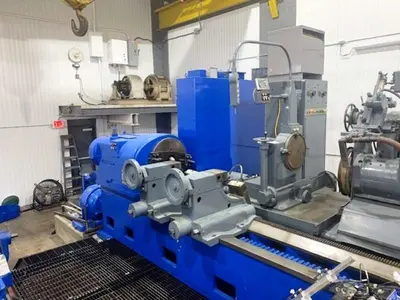

36" X 192" CINCINNATI ROLL GRINDER
Serial No. 58G-403447-1
Specifications:
Maximum swing over bed                    36”
Maximum Roll Length                         192”

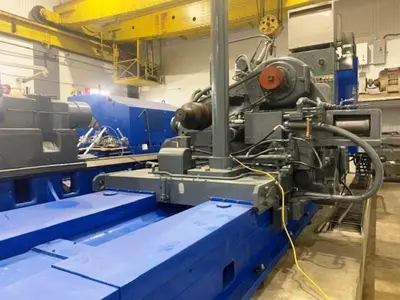

Wheelhead
Size of grinding wheel – std.                 36” X 4” X 20”
Grinding wheel speeds                          600-1800 RPM
Weight of wheelhead without motor      14,500 lbs.

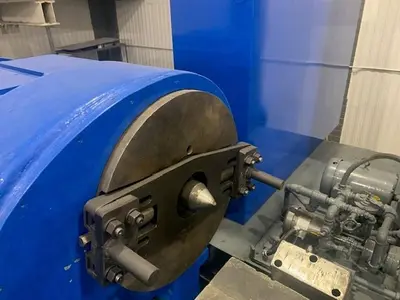

Headstock
Headstock speeds                                 9-32 rpm
Headstock horsepower                          15 hp DC
Weight of Headstock                            14000 lbs

Infeed
Infeed increments, programmable         .0000 10” - .004”
Maximum infeed rate (Rapid)               30 ipm
Grinding Carriage
Weight of carriage assembled, completely with motor 45,000 lbs

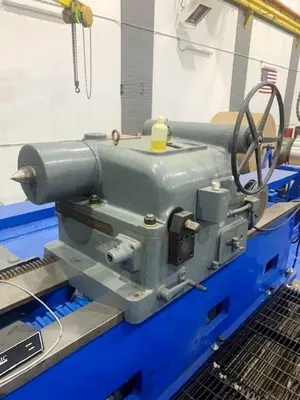

Footstock
Work Center Diameter X Length          6” X 20 1/8”
Maximum Longitudinal Movement       5”
Weight                                                 6,600 Lbs.

Accessories

1 Pair journal Rests
1 Wheel Hub
2 Centers
1 Equalizer Drive
New Fagor Digital readout on the infeed slide
Way Covers
