| X | 19.7" | 500.38 mm |
| Y | 17.7" | 449.58 mm |
| Z | 15.7" | 398.78 mm |
| # Axis | 5 | 5 |
| Power | 20 hp | 14.9 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT-40 | CAT-40 |
| Control | CNC (Siemens ERGOline CNC Control) | CNC (Siemens ERGOline CNC Control) |
| Dimensions | 216.5″ x 135″ x 106″ High Approx. | 216.5″ x 135″ x 106″ High Approx. |
| Weight | 10,604 lbs. Approx. | 10,604 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

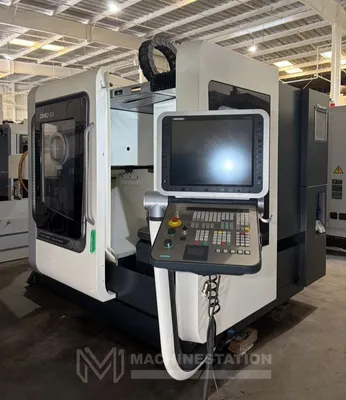

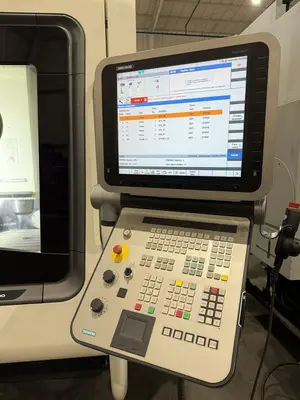

Siemens ERGOline CNC Control
10,737 Hours Cutting Time
5 Axis Simultaneous Machining
MPG Handwheel Control
PCMCIA Card Slot
Spindle Orientation
Helical Interpolation
Rigid Tapping
Travels:
X – Axis: 19.7″
Y – Axis: 17.7″
Z – Axis: 15.7″
B Axis: -35° +110° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Rapid X Y & Z: 945 Inch Per Minute
Feed Rate : 945 Inch Per Minute
Table:
Table size: ø 24.8″ × 19.7″
Max Weight on Table: 661 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 18,000 RPM
Spindle Power: 20 HP
Automatic Tool Changer
Capacity: 60 Tools
Taper: CAT-40
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 17.63 lbs.
General:
Air Required: 80 psi, 4 scfm

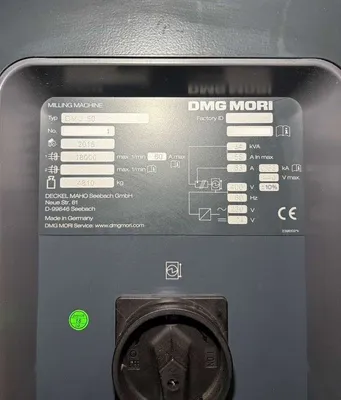

Power: 400 v / 60 hz / 34 kva
Overall Dimensions: 216.5″ x 135″ x 106″ High Approx.
Weight: 10,604 lbs. Approx.

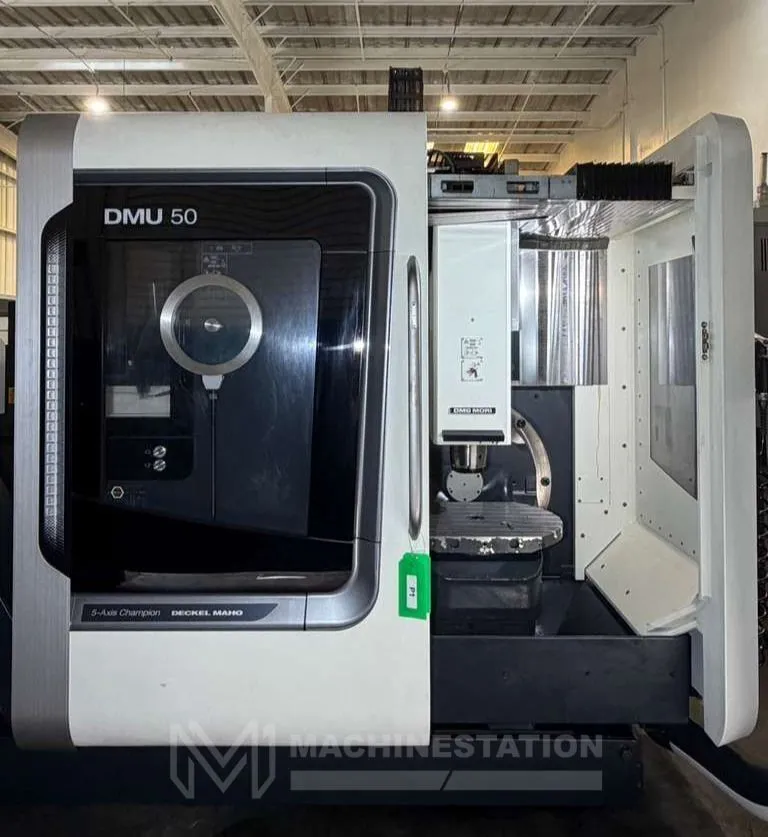

ø 24.8″ × 19.7″ Trunnion Table
18,000 RPM High Speed Spindle
60 Station Automatic Tool Changer
Through Spindle Coolant

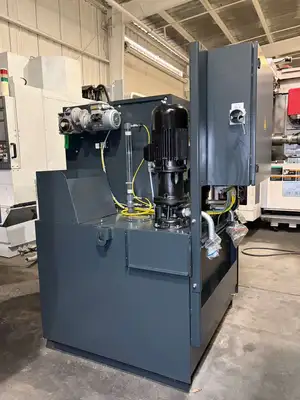

Micron Paper Filteration Coolant System

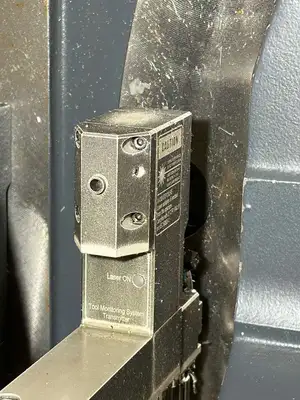

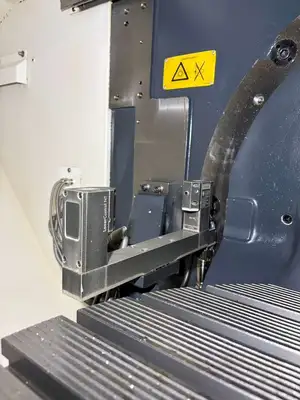

DMG Mori Power Probing System (Tool Probe Included)
Internal Window Coolant Wiper

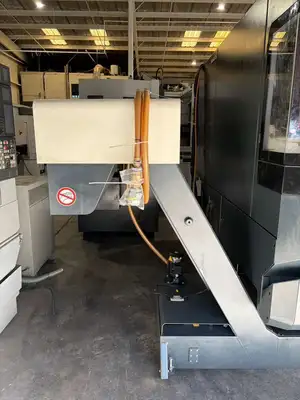

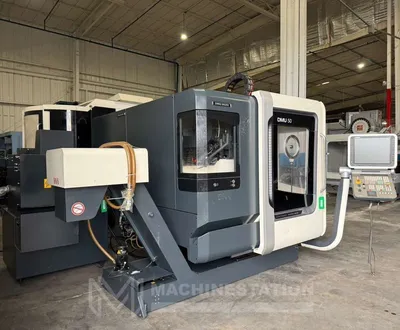

Chip Conveyor
