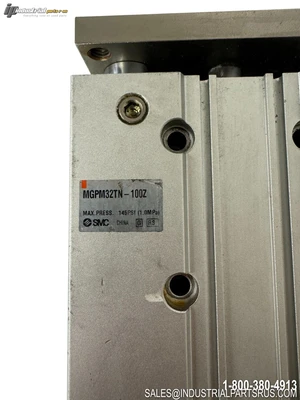

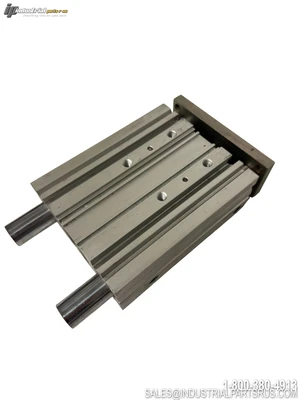

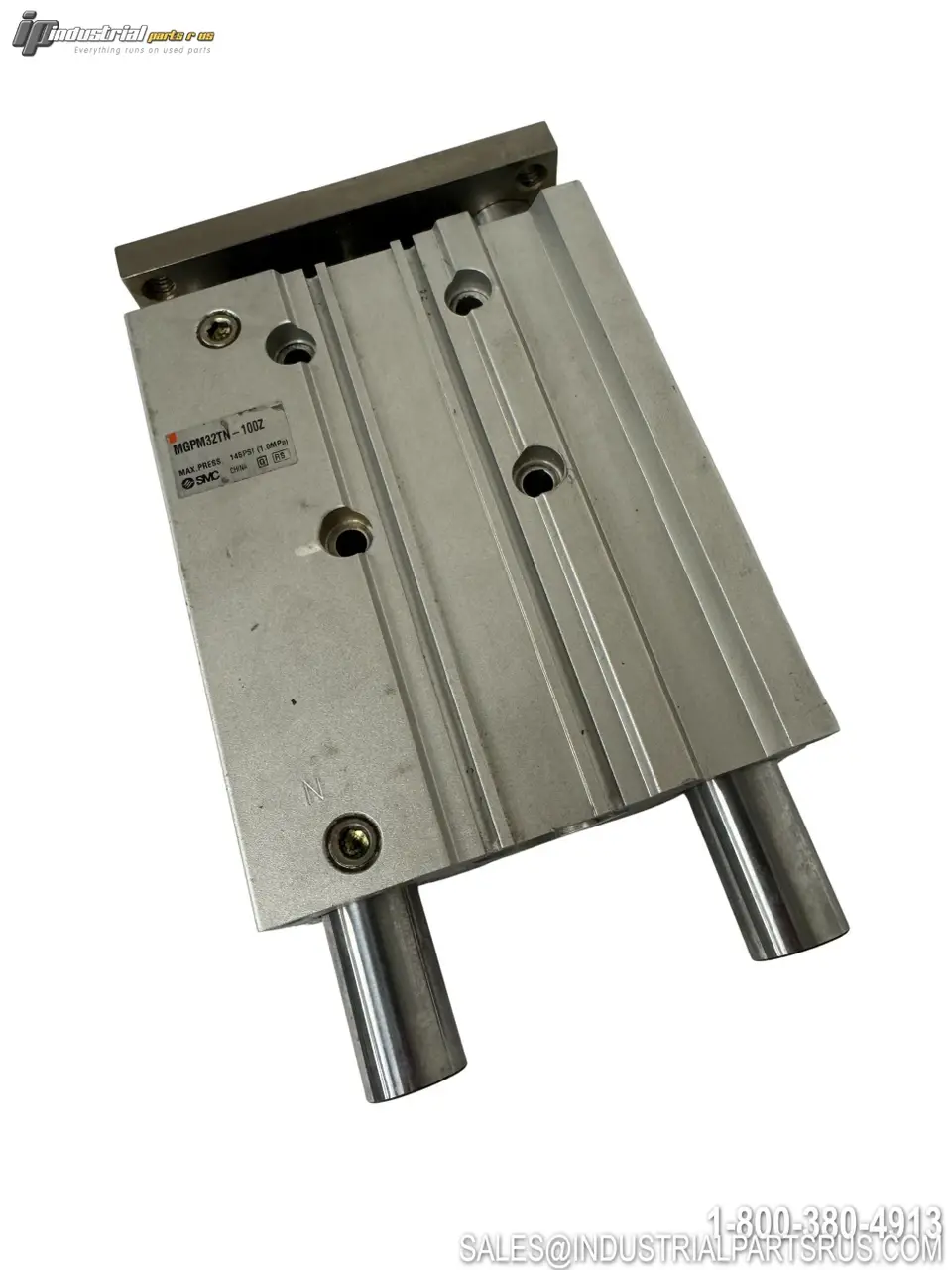

USED SMC MGPM32TN-100Z
Overview
Description
The SMC MGPM32TN-100Z is a compact guided pneumatic cylinder from the MGP series featuring a 32mm bore and 100mm stroke length. This double-acting cylinder incorporates slide bearing technology for lateral stability and includes built-in magnets for switch mounting applications.
Specification
Value
Brand
SMC
Model/Part Number
MGPM32TN-100Z
Series
MGP
Cylinder Type
Compact Guided Cylinder
Action
Double Acting
Bore Diameter
32mm
Stroke Length
100mm
Bearing Type
Slide Bearing
Port Thread Type
NPT 1/8"
Maximum Operating Pressure
1.0 MPa (145 PSI)
Proof Pressure
1.5 MPa (218 PSI)
Minimum Operating Pressure
0.1 MPa (14.5 PSI)
Piston Speed
50-500 mm/s
Seal Material
NBR
Operating Temperature
-10°C to +60°C
Built-in Magnet
Yes
Cushioning
Rubber Bumpers (both ends)
Fluid
Compressed Air
Non-rotating Accuracy
±0.06°
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 5.00 LBS | 5.00 LBS |
|---|
SKU: AI1471
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: MGPM32TN-100Z
Shelf: K-62
Bore Diameter: 32 mm
Model: MGPM32TN-100Z
MPN: MGPM32TN-100Z
Type: Pneumatic Cylinder
Country/Region of Manufacture: China
