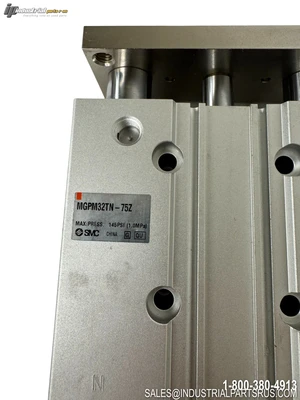

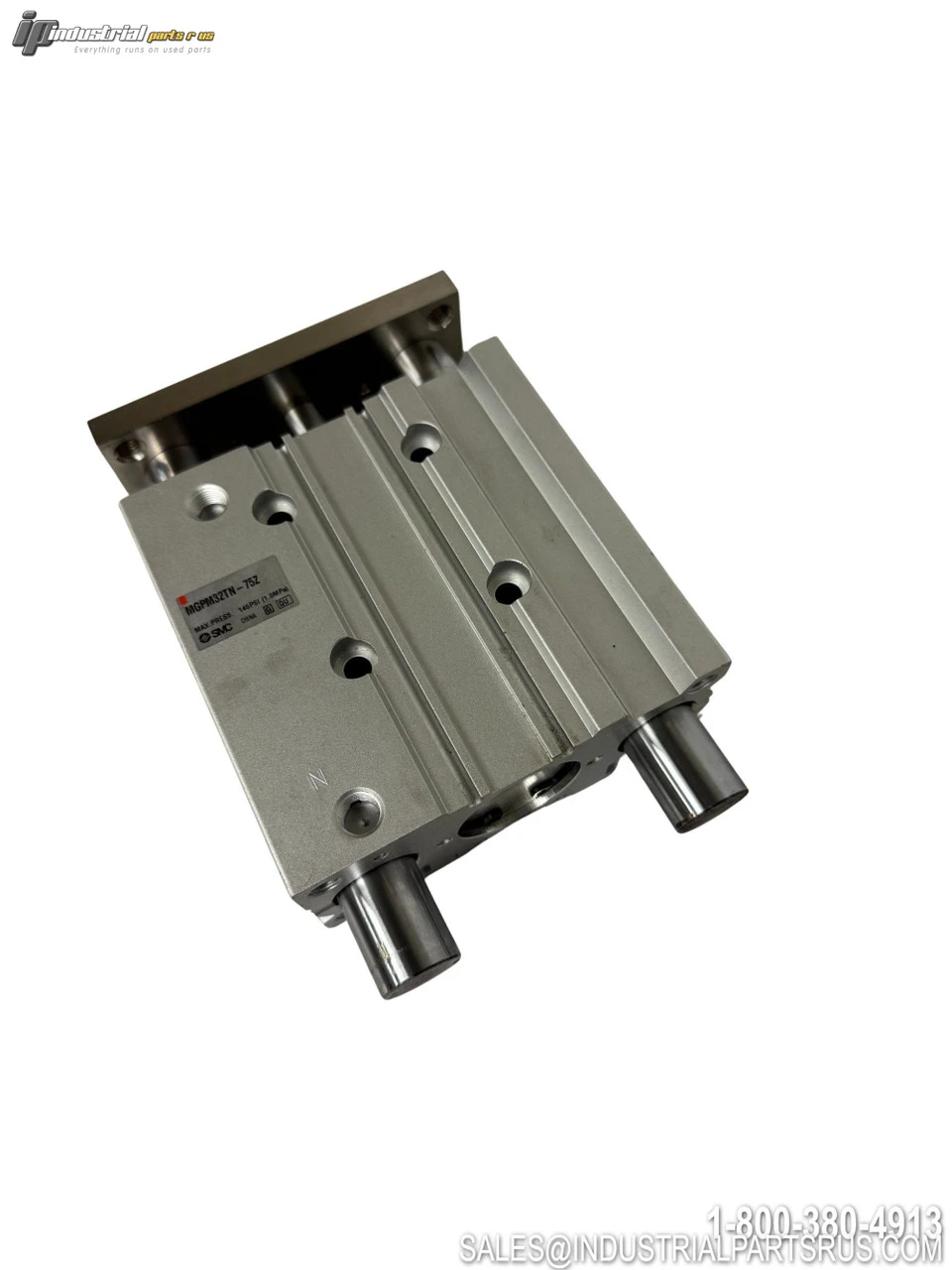

USED SMC MGPM32TN-75Z
Overview
Description
The SMC MGPM32TN-75Z is a compact guided pneumatic cylinder from SMC's MGP series, featuring a 32mm bore size with 75mm stroke length and slide bearing design. This cylinder features a shortened guide rod that saves space by reducing the guide rod length by a maximum 22mm, reducing the machining required to create space between the bottom of the cylinder body and the equipment. Round type and magnetic field resistant auto switches can be mounted directly without spacers.
Specification
Value
Brand
SMC
Model/Part Number
MGPM32TN-75Z
Product Series
MGP-Z
Cylinder Type
Compact Guided Cylinder
Bearing Type
Slide Bearing
Bore Size
32mm
Stroke Length
75mm
Port Thread Type
NPT
Port Size
1/8" NPT
Cylinder Action
Double Acting
Operating Pressure Max
1.0 MPa (145 psi)
Operating Pressure Min
0.1 MPa (14.5 psi)
Proof Pressure
1.5 MPa (218 psi)
Piston Speed
50-500 mm/s
Seal Material
NBR
Weight
3.49 kg
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 5.00 LBS | 5.00 LBS |
|---|
SKU: AI1472
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SMC
Part Number: MGPM32TN-75Z
Shelf: K-60
Bore Diameter: 32 mm
Model: MGPM32TN-75Z
MPN: MGPM32TN-75Z
Type: Pneumatic Cylinder
