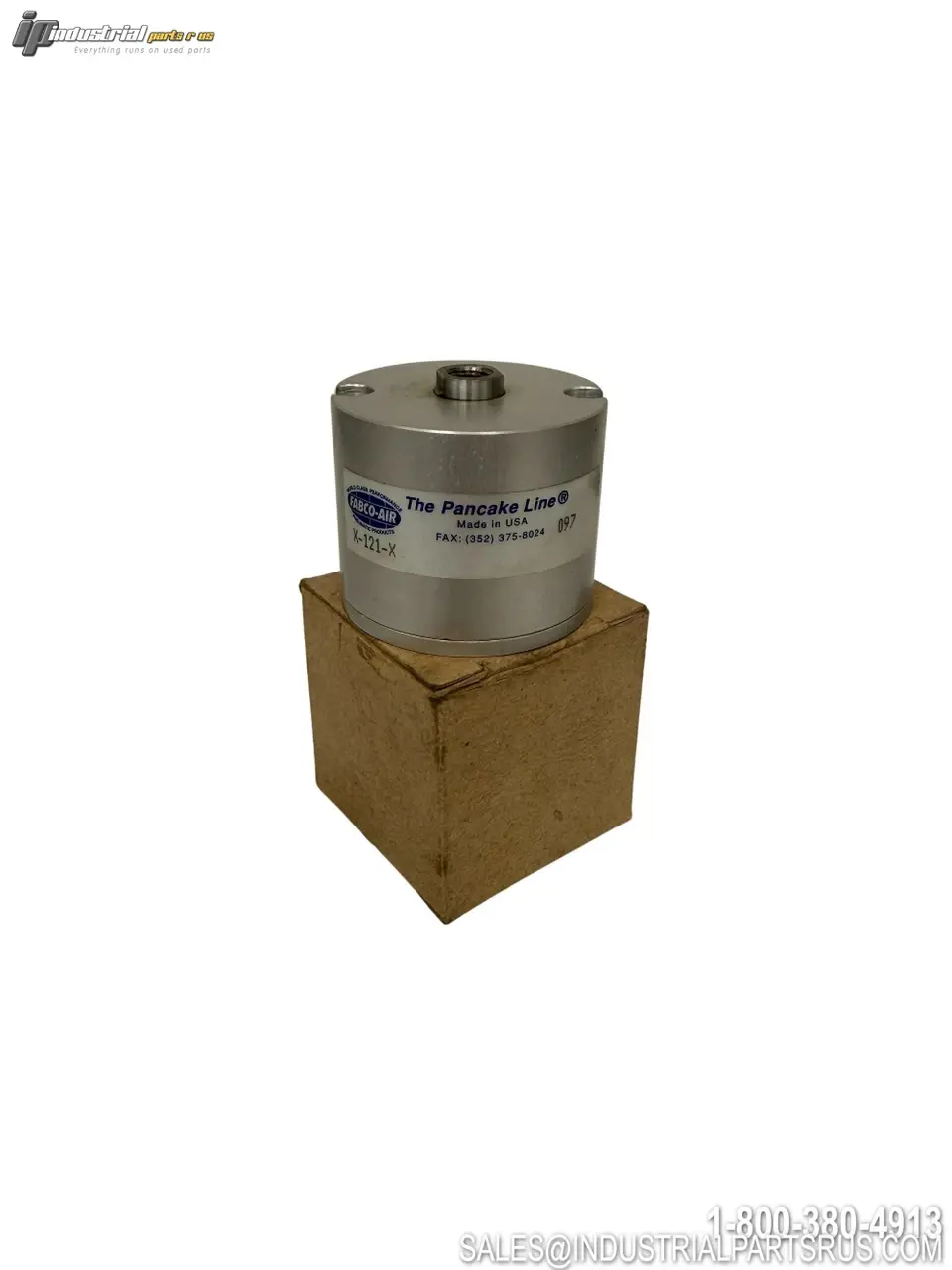

NEW FABCO-AIR X-121-X

The Fabco-air X-121-x is a double-acting original compact round air cylinder actuator with single rod from the Pancake original series. This pneumatic cylinder features a 1-1/8" bore, 3/4" stroke, and is designed for through-hole mounting with clear anodized aluminum body and hard chrome-plated stainless steel piston rod.
Specification
Value
Brand
Fabco-air
Model/Part Number
X-121-x
Product Series
Pancake Original Series
Cylinder Type
Double-acting
Bore Diameter
1-1/8" (28.5mm)
Stroke Length
3/4"
Rod End Thread
5/16"-24 UNF-2B female threaded
Port Size
2 x 1/8" NPT threaded
Mounting Type
Through-hole mounting
Body Material
Clear anodized aluminum
Piston Rod
Hard chrome-plated stainless steel
Seals
Standard Buna-N
Pressure Rating
4.5 PSI - 250 PSI
Operating Temperature
-25°F to +250°F (-31°C to +121°C)
Shape
Round cylindrical
Design
Single rod
We warranty all items for 30 days from date of purchase.

SKU: AI1454
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Fabco-Air
Part Number: X-121-X
Shelf: K-3
Bore Diameter: 1-1/8 in
Model: X-121-X
MPN: X-121-X
Type: Pneumatic Cylinder
