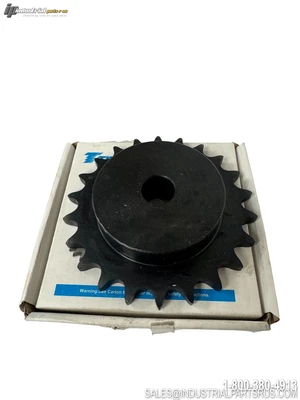

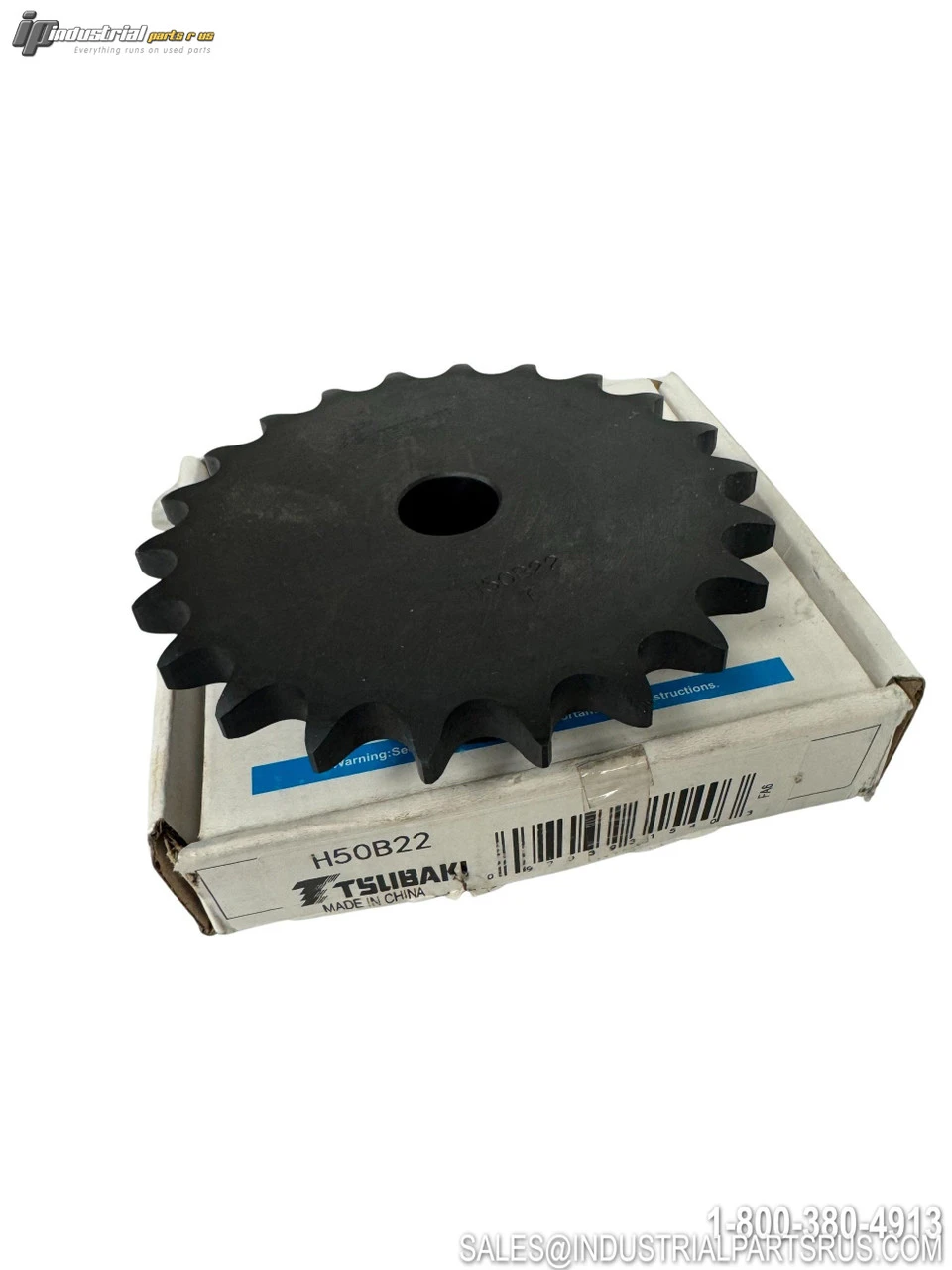

NEW TSUBAKI H50B22

The Tsubaki H50B22 is a professional-grade roller chain sprocket designed for #50 chain applications with 22 hardened teeth. This B-style hub sprocket features a 3/4 inch bore diameter and 4.720 inch outside diameter, manufactured from 1045 cold rolled carbon steel for superior durability and performance in industrial power transmission systems.
Specification
Value
Brand
Tsubaki
Model/Part Number
H50B22
Chain Number
#50
Number of Teeth
22
Hub Type
B-Style (hub one side)
Bore Diameter
3/4 inch
Outside Diameter
4.720 inches
Pitch Diameter
4.392 inches
Chain Pitch
5/8 inch
Hub Diameter
3.0 inches
Length Through Bore
1.0 inch
Material
1045 Cold Rolled Carbon Steel
Weight
2.56 lbs
Hardened Teeth
Yes (Rockwell C35 minimum)
Number of Strands
Single
Standards Compliance
ANSI
We warranty all items for 30 days from date of purchase.

SKU: AI1488
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Tsubaki
Part Number: H50B22
Shelf: K-60
Model: H50B22
MPN: H50B22
Type: Sprocket
