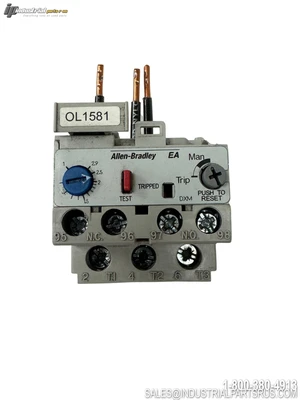

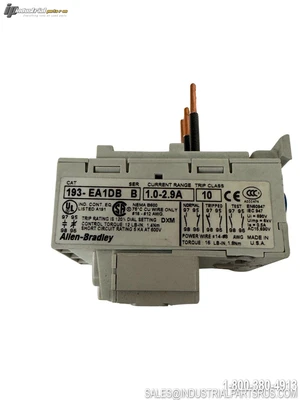

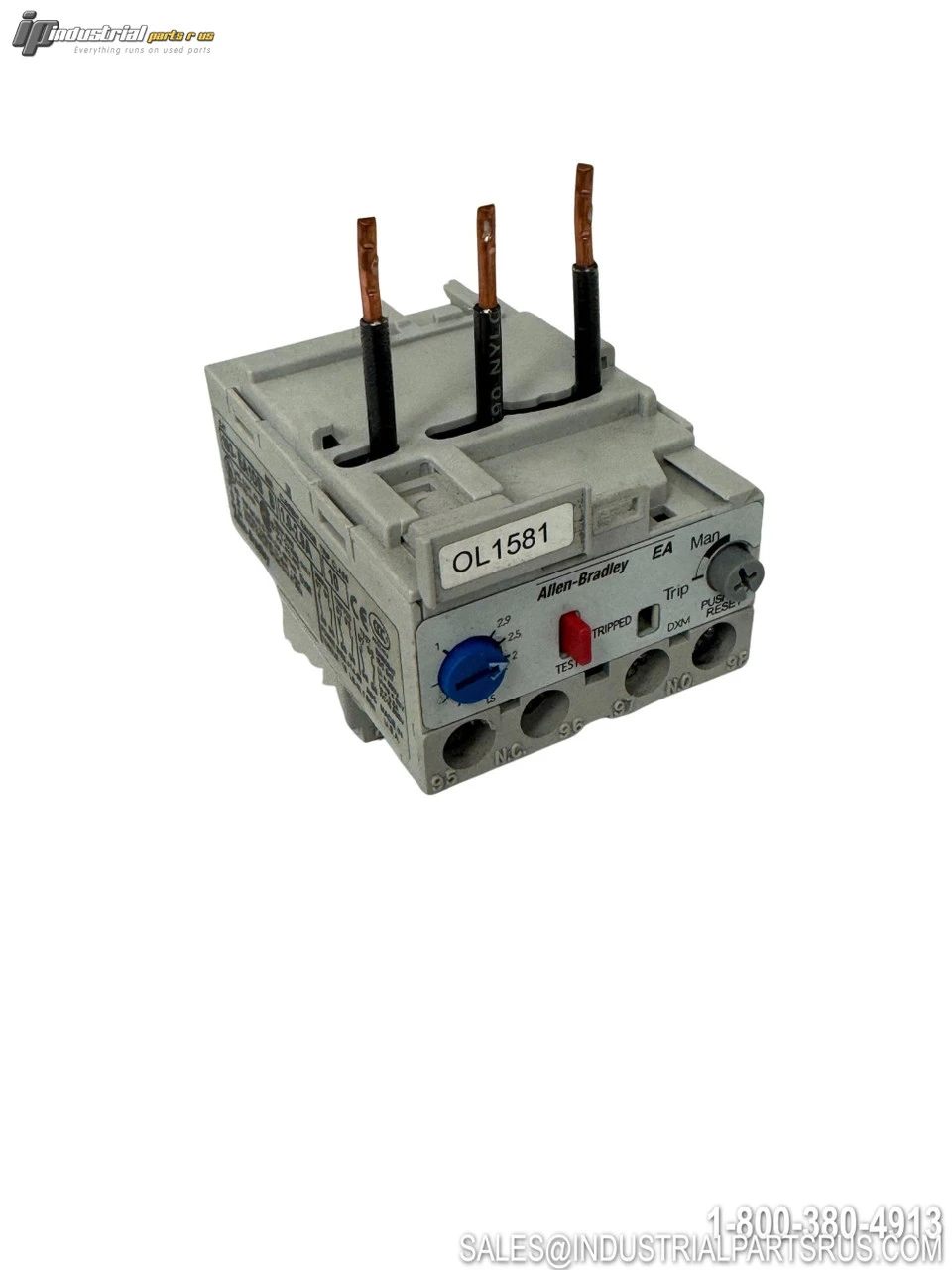

USED ALAN BRADLEY 193-EA1DB

The Allen-Bradley 193-EA1DB is a solid-state electronic overload relay designed to provide motor protection for industrial applications. This relay features a 1.0-2.9A adjustable current range with Class 10 trip characteristics and manual reset functionality. It is designed to mount directly to 100-M05 to 100-C25 contactors and includes 1 normally open and 1 normally closed output contact.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
193-EA1DB
Product Type
Solid-State Overload Relay
Current Range
1.0-2.9A
Trip Class
Class 10
Reset Type
Manual Reset
Control Voltage
600V AC
Contact Voltage Rating
690V AC
Number of Poles
3
Auxiliary Contacts
1 NO, 1 NC
Compatible Contactors
100-M05 to 100-C25
Mounting Style
Direct Contactor Mount
Terminal Type
Screw Terminal
Operating Temperature
-20°C to +40°C
Dimensions (L x W x D)
107mm x 45mm x 67.2mm
Status
Discontinued (2007)
We warranty all items for 30 days from date of purchase.

SKU: AI1458
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: United States
Full Load Amps: 1.0-2.9A
Manufacturer: Alan Bradley
Part Number: 193-EA1DB
Shelf: K -40
Model: 193-EA1DB
MPN: 193-EA1DB
Type: Overload Relay
