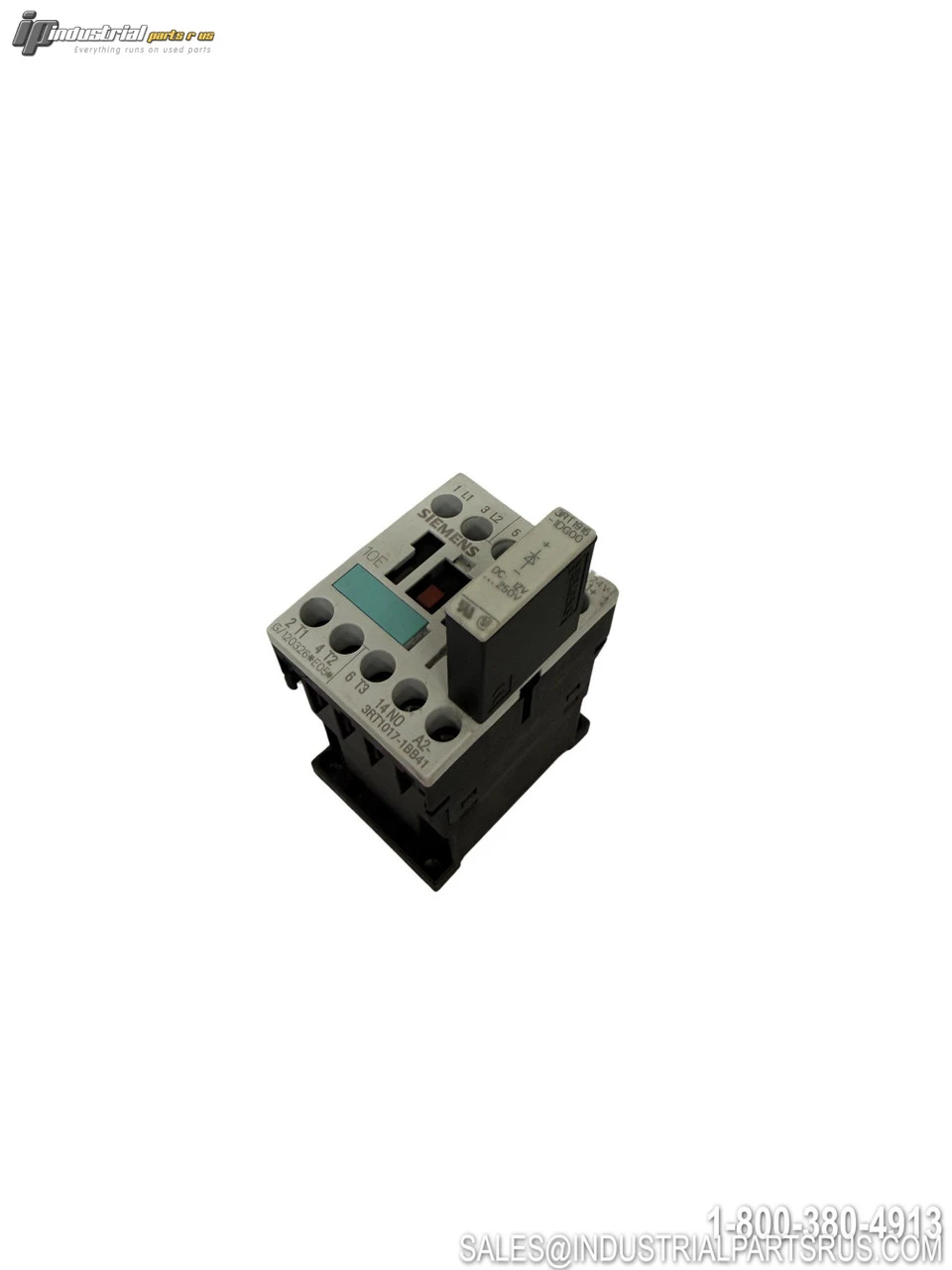

USED SIEMENS 3RT1017-1BB41

The Siemens 3RT1017-1BB41 is a SIRIUS power contactor designed for motor control applications. This 3-pole IEC-rated contactor features a 12 amp AC-3 current rating and 5.5kW power capacity at 400V. It includes one normally open auxiliary contact and screw terminals for easy wiring.
Specification
Value
Brand
Siemens
Model/Part Number
3RT1017-1BB41
Coil Voltage
24VDC
Current Rating
12A (AC-3)
Power Rating
5.5kW at 400V
Number of Poles
3
Auxiliary Contacts
1NO
Frame Size
S00
Terminal Type
Screw
Enclosure Type
IP20
Mounting Type
DIN Rail
Dimensions
45mm W x 72mm D x 57.5mm H
Operating Temperature
-25°C to 60°C
Series
SIRIUS 3RT1
HP 1-Phase 115V
0.5 HP
HP 1-Phase 230V
2 HP
HP 3-Phase 230V
3 HP
HP 3-Phase 460V
7.5 HP
HP 3-Phase 575V
10 HP
AC-1 Current Rating
20A
AC-1 Power Rating
13kW at 400V
We warranty all items for 30 days from date of purchase.

SKU: AI1447
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail
Current Rating: 12A
Full Load Amps: 20A
Manufacturer: Siemens
Enclosure Type: IP20
Part Number: 3RT1017-1BB41
Series: SIRIUS 3RT1
Shelf: C-19 Tub 6
Model: 3RT1017-1BB41
Coil Voltage: 24 VDC
Horsepower: 7.5 HP
MPN: 3RT1017-1BB41
Type: Contactor
