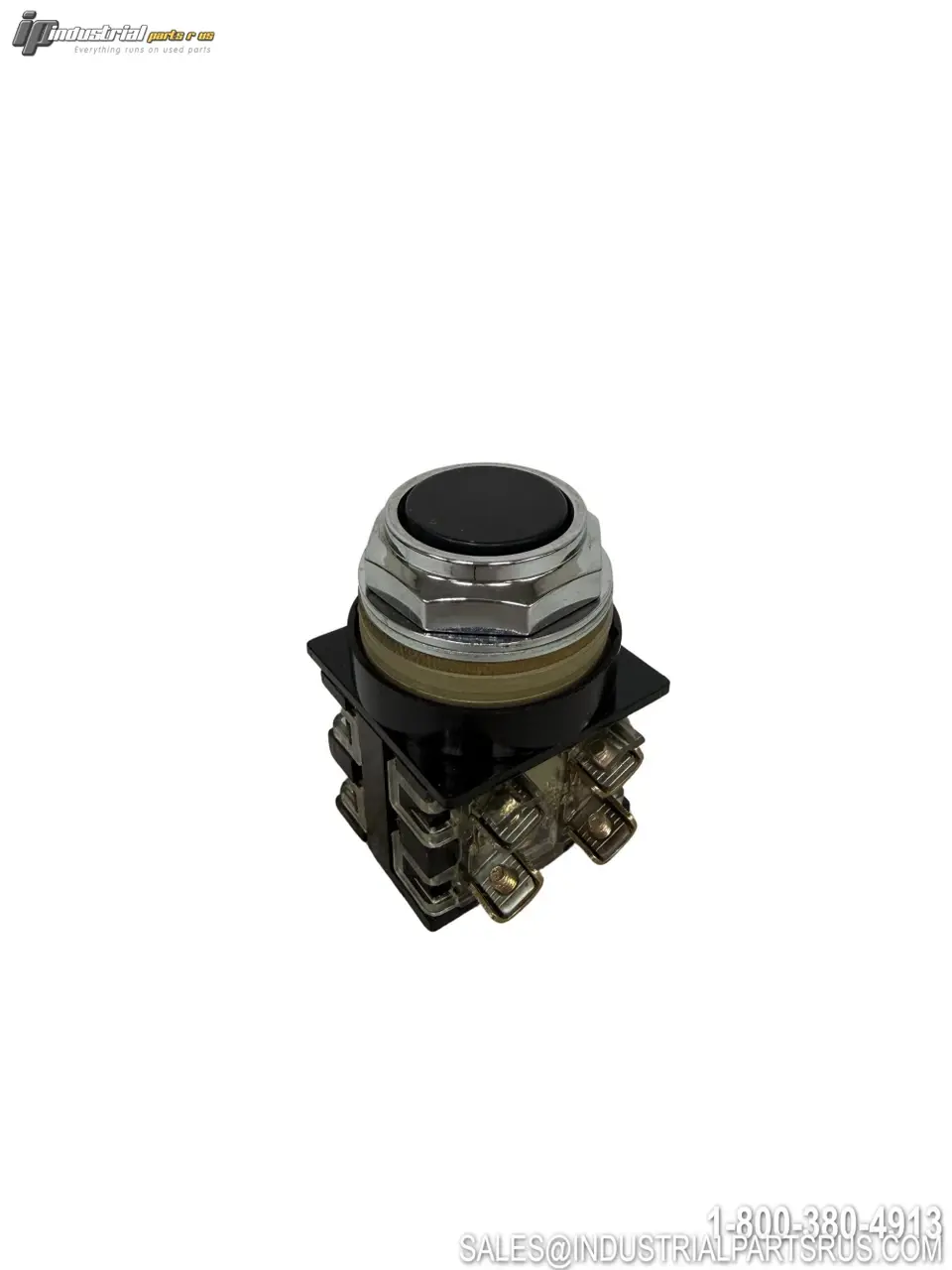

USED GENERAL ELECTRIC CR104P

The General Electric CR104P is a heavy-duty push button series designed for industrial motor control and signaling applications. This 30.5mm series features oiltight and watertight construction suitable for harsh industrial environments. The CR104P series includes push buttons, selector switches, pilot lights, and contact blocks with various configurations.
Specification
Value
Brand
General Electric
Model/Part Number
CR104P
Series
CR104P
Size
30.5mm
Construction
Heavy-Duty Oiltight/Watertight
Contact Rating
10A at 600VAC/VDC
NEMA Rating
1/3/3R/4/4X/12/13
Operating Temperature
-25°C to +70°C (-13°F to +158°F)
Body Material
Nylon
Bezel Material
Chromium Plated Zinc Ingot
Terminal Type
Screw Terminal
Wire Size
22 to 12 AWG Copper
Certifications
UL Listed, CSA Certified
Standards
IEC 947-5-1, VDE 0660, NEMA ICS2-1988
We warranty all items for 30 days from date of purchase.

SKU: AI1485
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: General Electric
Enclosure Type: 1/3/3R/4/4X/12/13
Part Number: CR104P
Shelf: Q-3
Model: CR104P
MPN: CR104P
Type: Push Button
