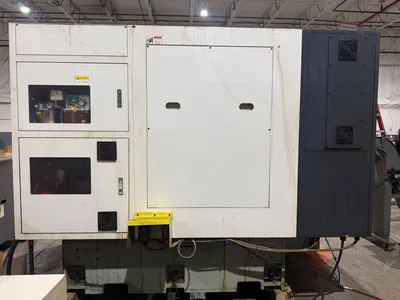

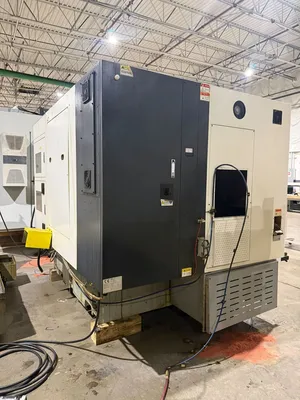

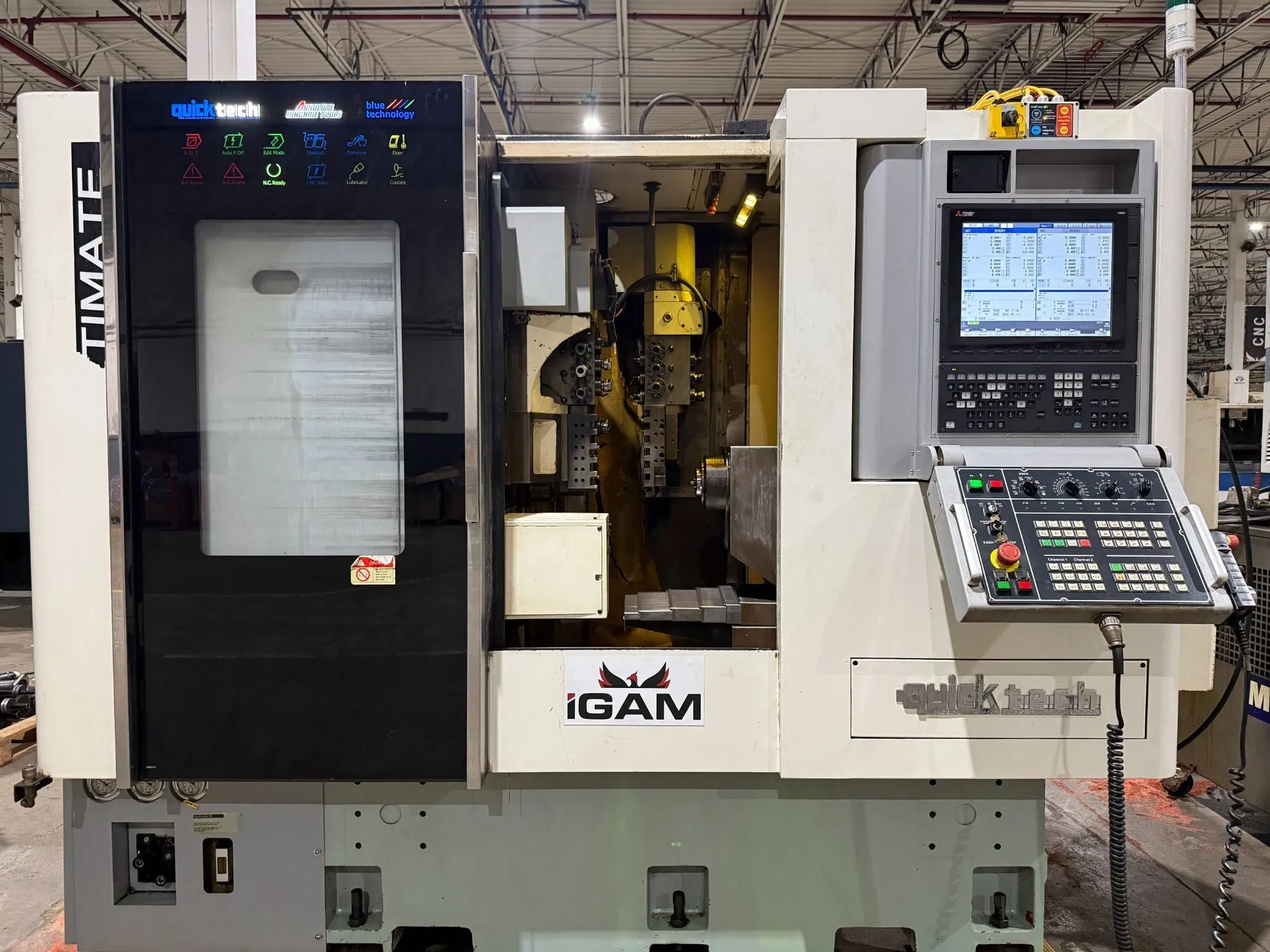

2018 QUICK-TECH I-42U Ultimate Swiss Turn
Contact our Sales Team for Pricing

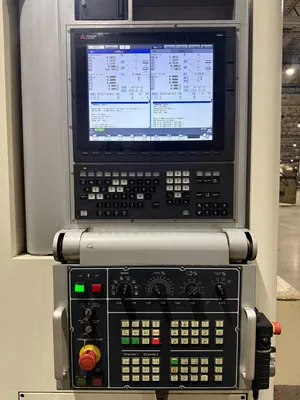

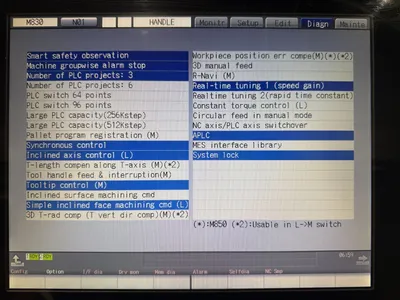

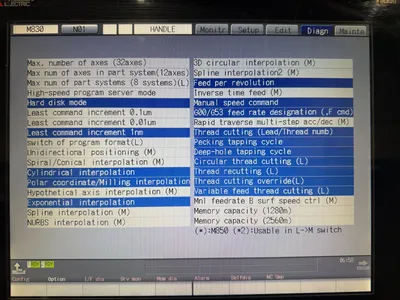

Mitsubishi M830 Control

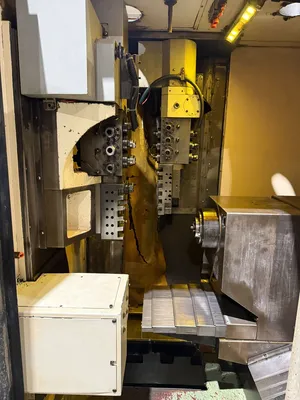

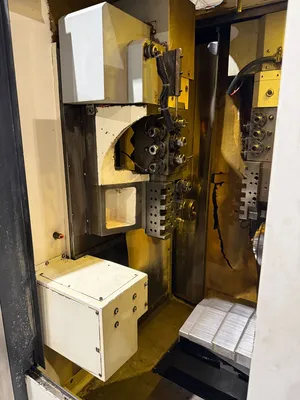

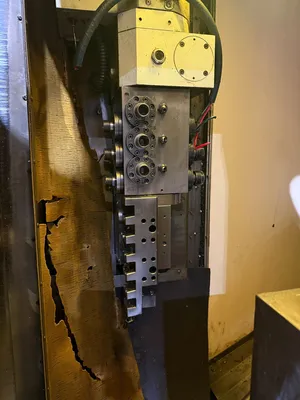

Main, Sub Radial and Axial Live Tool ER20 Collet Heads
Dual Spindles

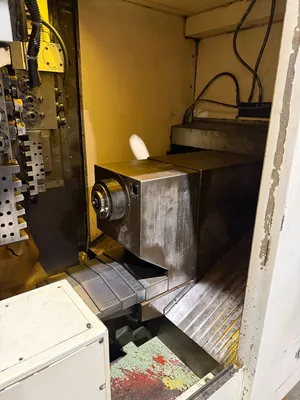

Sub Spindle X and Z positioning

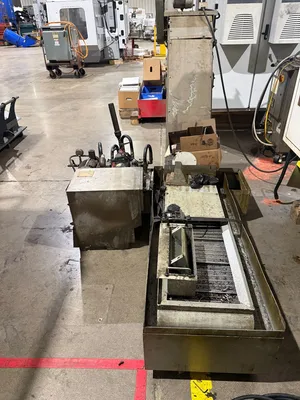

Part Catcher and Conveyor (Sub Spindle)
One and Done machining

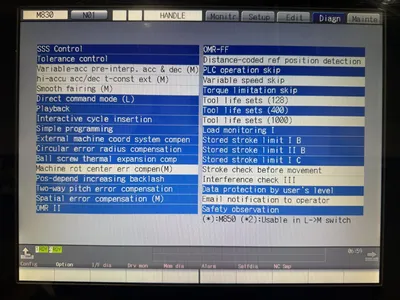

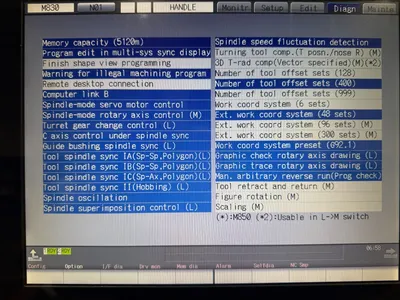

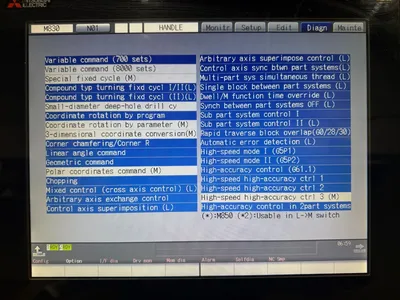

Many Options (see photos)

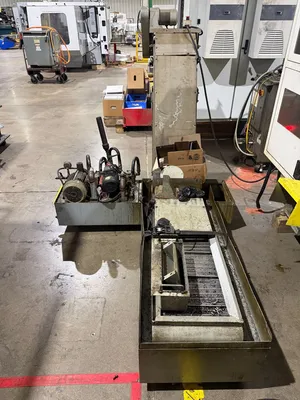

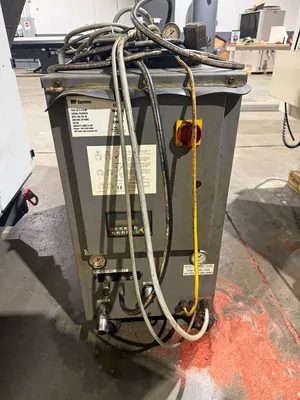

Coolant Tank and Pumps

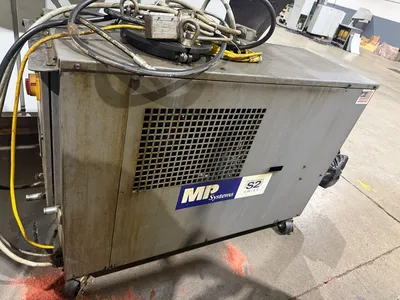

MP Pumps system
220V, 30KVA.
Contact Us Today to schedule a in person visit.
| CNC Control Type | Mitsubishi M830 | Mitsubishi M830 |
| # of Axes | 10 | 10 |
| Turning Dia | 1.65" | 41.91 mm |
| Center Distance | 9.8" | 248.92 mm |
| Bar Capacity | 42 mm | 1.6535" |
| X-axis Travel | 5.9" | 149.86 mm |
| Y-axis Travel | 16.14" | 409.96 mm |
| Z-axis Travel | 9.84" | 249.94 mm |
| X2-axis Travel | 17" | 431.8 mm |
| Z2-axis Travel | 11.41" | 289.81 mm |
| Rapid Traverse Rate (X/Y/Z) | 1181 ipm | 1181 ipm |
| Spindle Nose | A2-5 | A2-5 |
| Spindle Speed (rpm) | 6,000 RPM | 6,000 RPM |
| Spindle Motor (hp) | 7.5 kW | 10.1 hp |
| Milling Spindle Taper | ER20 | ER20 |
| Live Tooling | Yes | Yes |
| Live Tooling Speed (rpm) | 4,000 RPM | 4,000 RPM |
| Live Tooling Motor (hp) | 2 hp | 1.5 kW |
| Sub Spindle | Yes | Yes |
| Sub Spindle Speed (rpm) | 6,000 RPM | 6,000 RPM |
| Sub Spindle Motor (hp) | 5 hp | 3.7 kW |
| Turret Capacity | Main & Sub both have 12 live tools, static depends on configuration | Main & Sub both have 12 live tools, static depends on configuration |
| Machine Dimensions | 106"x 91" x 85" Tall (On 6x6) | 106"x 91" x 85" Tall (On 6x6) |
| Machine Weight | 13,000 lb | 5,896.7 kg |
| Control | CNC (Mitsubishi M830) | CNC (Mitsubishi M830) |
| Weight | 13,000 | 13,000 |
Y2 Travel:15.35"
