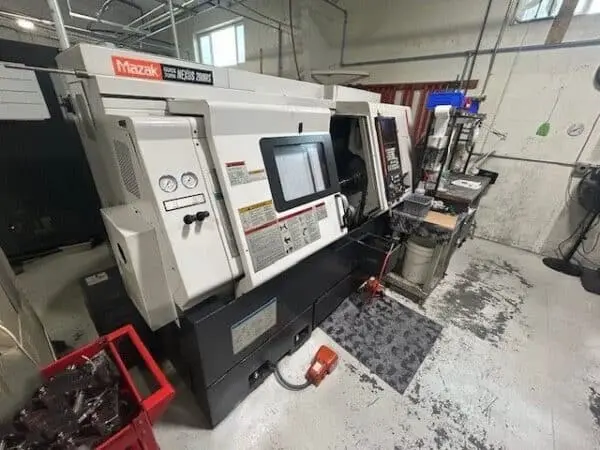

Mazak Nexus 200MS – 2005

Mazak Quick Turn Nexus 200MS CNC Turning Center with Sub-Spindle & Milling / QTN200MS / QTN-200MS
Mazak QT Nexus 200MS

CNC Lathe

SWING 26.4″

MACHINING LENGTH 22.7″

MAX. TURNING LENGTH 14.75″

MAX. TURNING DIAMETER 13.78″

CENTER DISTANCE 21.28″

X-AXIS 9.05″

Z-AXIS 22.75″

CHUCK SIZE 8″

BAR CAPACITY 2.56″

SPINDLE NOSE A2-6

POWER 35 hp

MAX RPM 5,000 RPM

TURRET STATIONS 12

LIVE TOOLING Yes

LIVE MILLING POWER 7.5 hp

LIVE MILLING MAX RPM 4500 rpm

SUB SPINDLE Yes

SUB SPINDLE POWER 5 hp

SUB SPINDLE MAX RPM 6000 rpm

SUB SPINDLE CHUCK 6 in

Mazatrol 640T Nexus CNC Control

Chip Conveyor
