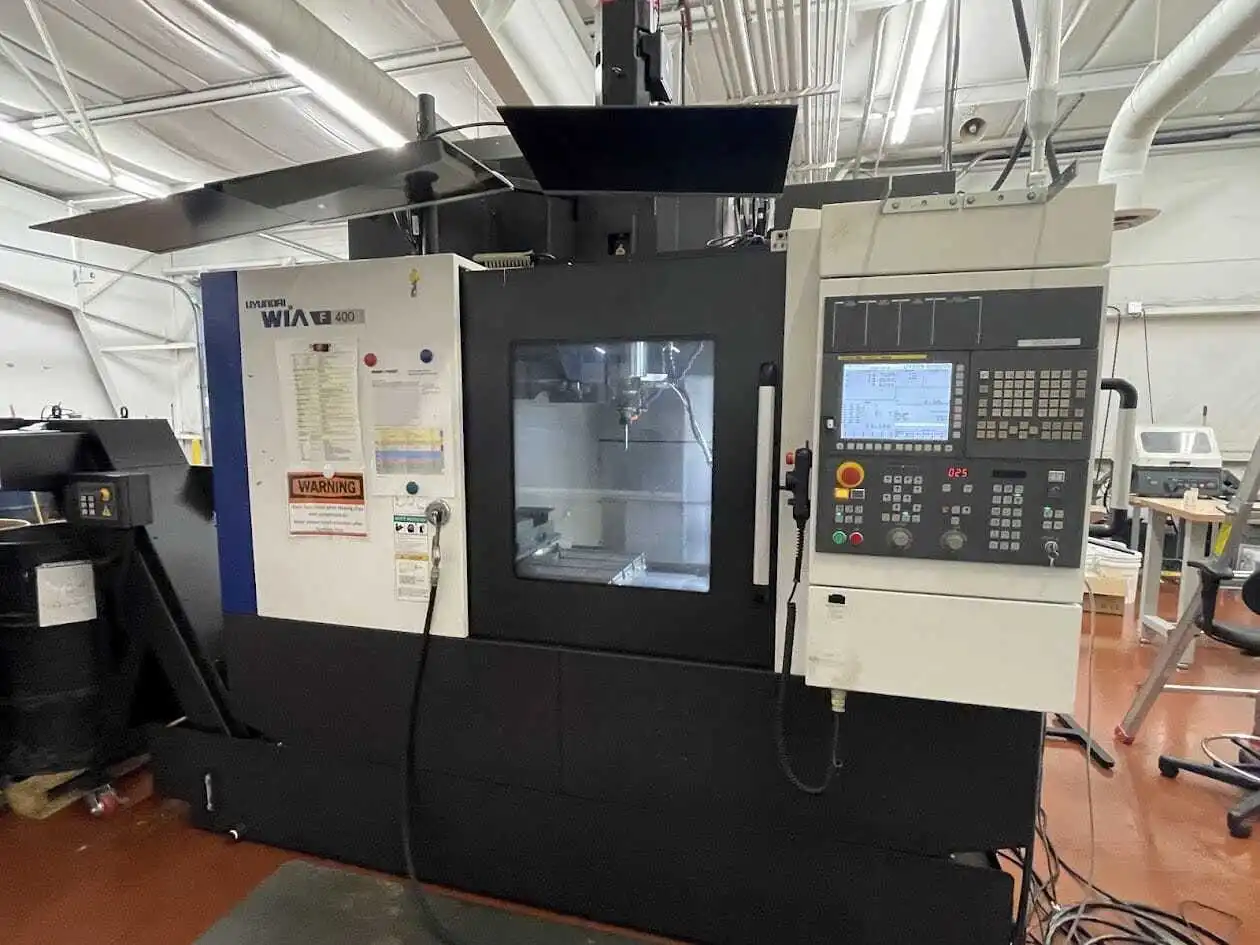

Used Vertical Machining Center with Fanuc i Series CNC Control, 24-tool ATC, and CAT 40 taper. Features high-pressure coolant, chip conveyor, and Ethernet. 3-axis XYZ travel: 800x460x520 mm. 12,000 RPM, 20 kW power output.
| X | 800 mm | 31.496" |
| Y | 460 mm | 18.11" |
| Z | 520 mm | 20.473" |
| Power | 20 kW | 26.8 hp |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 460 mm | 18.11" |
| Table-L | 1,000 mm | 39.37" |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Fanuc i Series CNC Control
MP VR8 High Pressure Coolant
Through Spindle Coolant
Mastertech MSOC-500AT Oil Cooling Unit
Chip Conveyor
MPG Handwheel Control
RS-232 Port
Ethernet
Rigid Tapping
