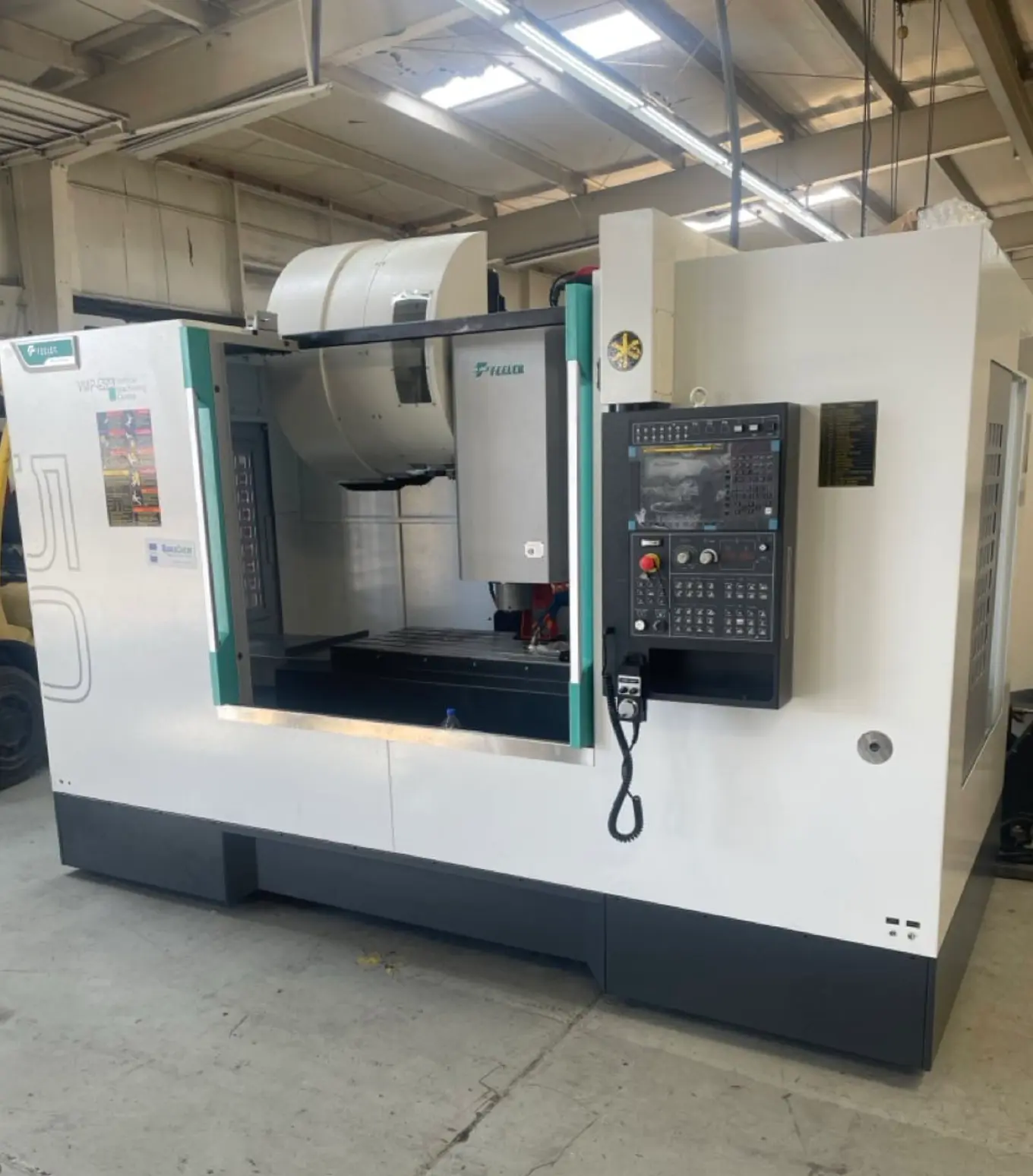

Vertical Machining Center, used condition. Features: Fanuc Control, 51.18″ X-axis, 24.02″ Y-axis, 23.62″ Z-axis, 10,000 rpm spindle, chip conveyor, setup for through spindle coolant.
| X | 1,300 mm | 51.181" |
| Y | 610 mm | 24.016" |
| Z | 600 mm | 23.622" |
| Power | 11 kW | 14.8 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
-axis travel: 51.18″ (1,300 mm)
Y-axis travel: 24.02″ (610 mm)
Z-axis travel: 23.62″ (600 mm)
Spindle speed: 10,000 rpm
Spindle nose to table surface: 4.72″ – 28.35″ (120 mm – 720 mm)
Spindle center to column surface: 25.98″ (660 mm)
Table surface to floor: 38.39″ (975 mm)
Table center to column surface: 13.98″ – 37.99″ (355 mm – 965 mm)
Fanuc Control
Plumbed for Through Spindle Coolant (needs pump)
Chip Conveyor
