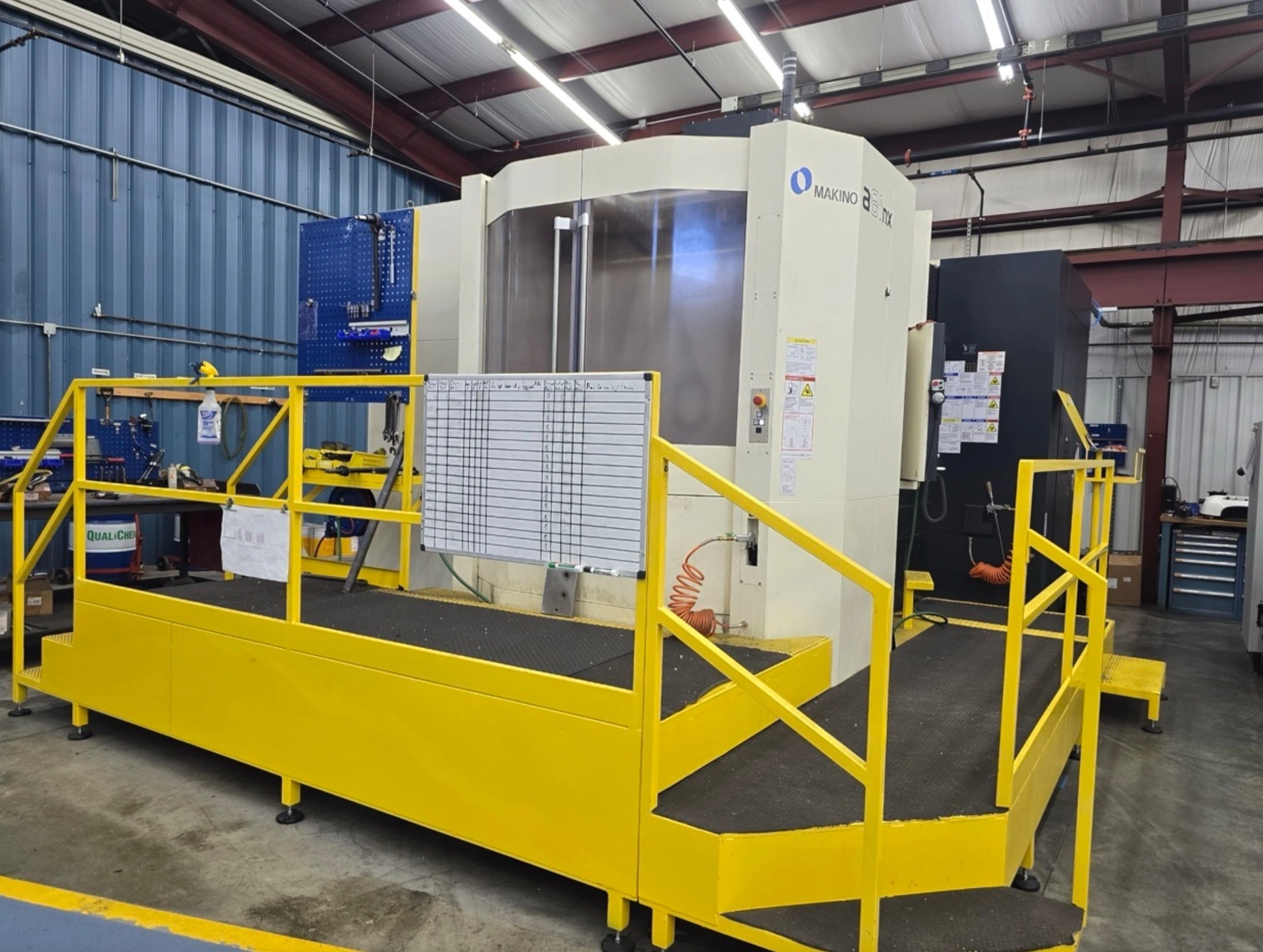

Horizontal Machining Center, used. Features 35.4" X/Y travel, 40.2" Z travel, full bi-directional 4th axis, 24.8" pallet size, 60 HP spindle, 10,000 RPM, and 60-tool auto changer. Equipped with Pro6 CNC, wash gun, and high-pressure coolant.
| X | 35.4" | 899.16 mm |
| Y | 35.4" | 899.16 mm |
| Z | 40.2" | 1,021.1 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
| # Axis | 4 | 4 |
X-Axis Travel: 35.4″
Y-Axis Travel: 35.4″
Z-Axis Travel: 40.2″
B-Axis: 360° (full 4th Axis, bi-directional)
Pallet Size: 24.8″ x 24.8″
Pallet Count: 2
Spindle Taper: CAT 50
Spindle Speed: 50 – 10,000 RPM
Spindle Power: 60 HP (35 HP continuous)
Rapid Traverse: 1,968 in/min
Cutting Feedrate: 1,968 in/min
Max Workpiece: 39.4″ x 51.2″
Max Table Load: 2,645 lbs
Auto Tool Changer: 60 Tools
Tool to Tool: 1.7 sec (12 kg tool)
Chip to Chip: 3.7 sec
Maximum Tool Length (Cat): 27.2″
Maximum Tool Diameter: 14.0″
Max Tool Weight: 66 lbs
Pro6 CNC Control
Full 4th Axis- Bi-directional
Workpiece Wash Gun
ChipBlaster HV40 1,000 psi Through Spindle Coolant
Rigid Tap
