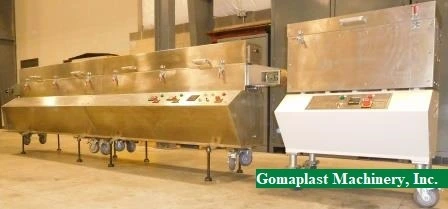

Electric Infrared Heating
Stainless steel inner & outer enclosures w/ high temperature insulation
HIGH HEAT zone: 3’4” (1000mm) long @ 1200°F/650°C max; 9 KW
CURING zone: 13’2” (4000mm) long @ 570°F/300°C max; 12 KW
5½” (140mm) smooth teflon/fabric belt
1HP/0.75KW variable speed conveyor motor & AC inverter drive
Conveyor Speed: 20-780 IPM (0.5-20m/min)
480V/3PH/60HZ/22KW
Base on rollers and with adjustable feet for easy height setting & installation
Center Height: 39 3/8” (1000mm) +- 1 3/8”/30mm
Overall Dimensions: 19′8”/6000mm L X 3’/800mm X 4’4”/1320mm H
