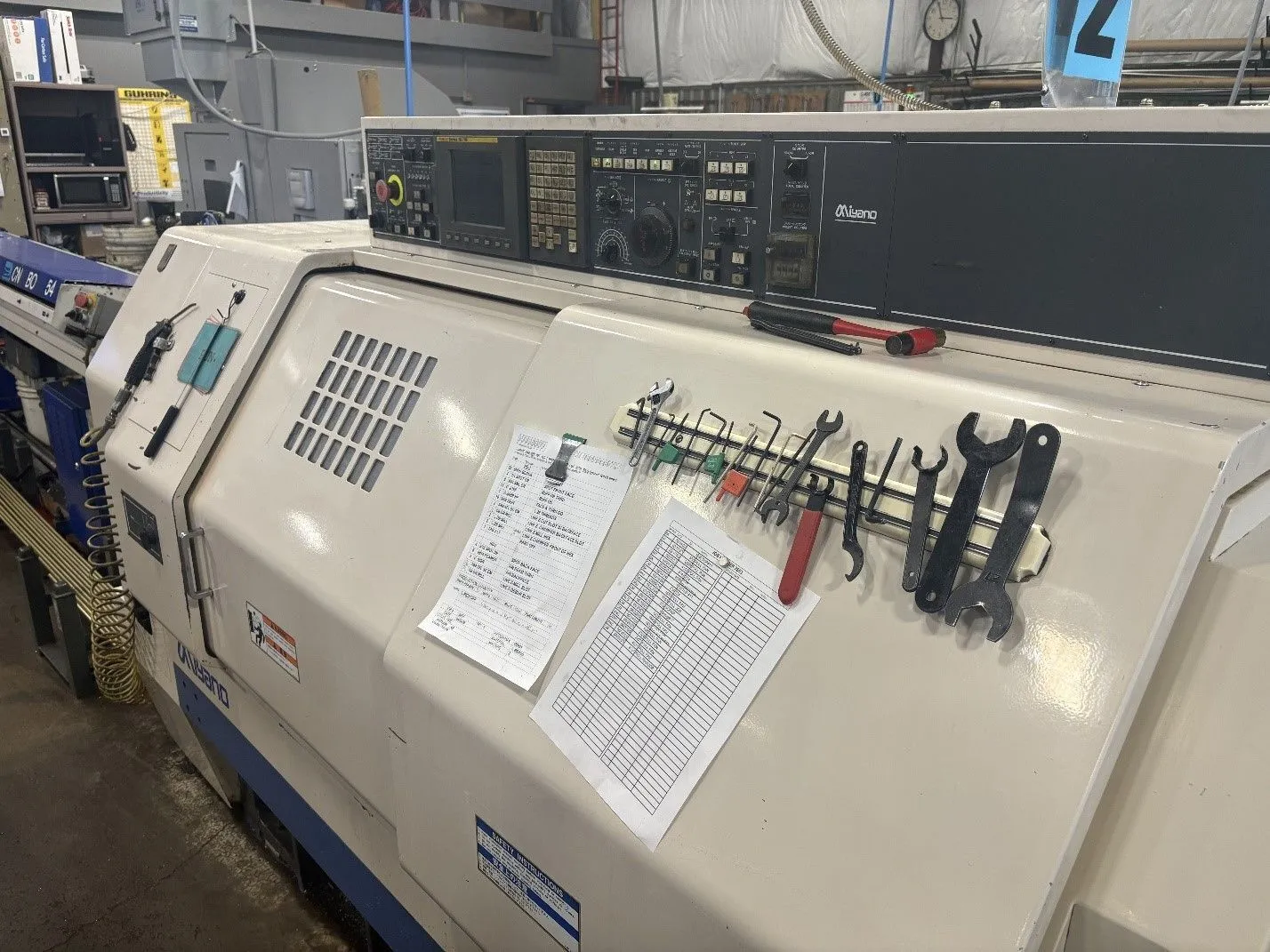

2002 Miyano BNJ-42S Dual Spindle CNC Turning Center with Live Tooling. Fanuc 18i-TB Control, Two Turrets, Parts Catcher & Conveyor, and Iemca Barfeed.
| Machining Length | 3.94" | 100.08 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.63" | 41.402 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 5" | 127 mm |
| Tailstock | 'No' | 'No' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'Yes' | 'Yes' |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Dimensions | 106" x 59" x 68" | 106" x 59" x 68" |
| Weight | 10,140 lbs | 10,140 lbs |
Work Length.....................3.9"
Turning Diameter (Main).........5"
Turning Diameter (Sub)..........4"
Bar Capacity....................1.65"
Spindle Speed...................5,000 RPM
Main Motor......................15 HP
Sub Spindle Motor...............7.5 HP
Turret Capacity.................12
Turret Index Time...............0.2 seconds
X1-Slide Travel.................6.10"
Z1-Slide Travel.................9.84"
Back Turret Capacity............6
Turret Index Time...............0.2 seconds
X2-Slide Travel.................2.75"
Z2-Slide Travel.................20.3"
Machine Dimensions..............106" x 59" x 68"
Machine Weight..................10,140 lbs
Fanuc 18i-TB CNC Control
Sub-Spindle
Live Tooling
Dual Turrets
Parts Catcher
Parts Conveyor
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
