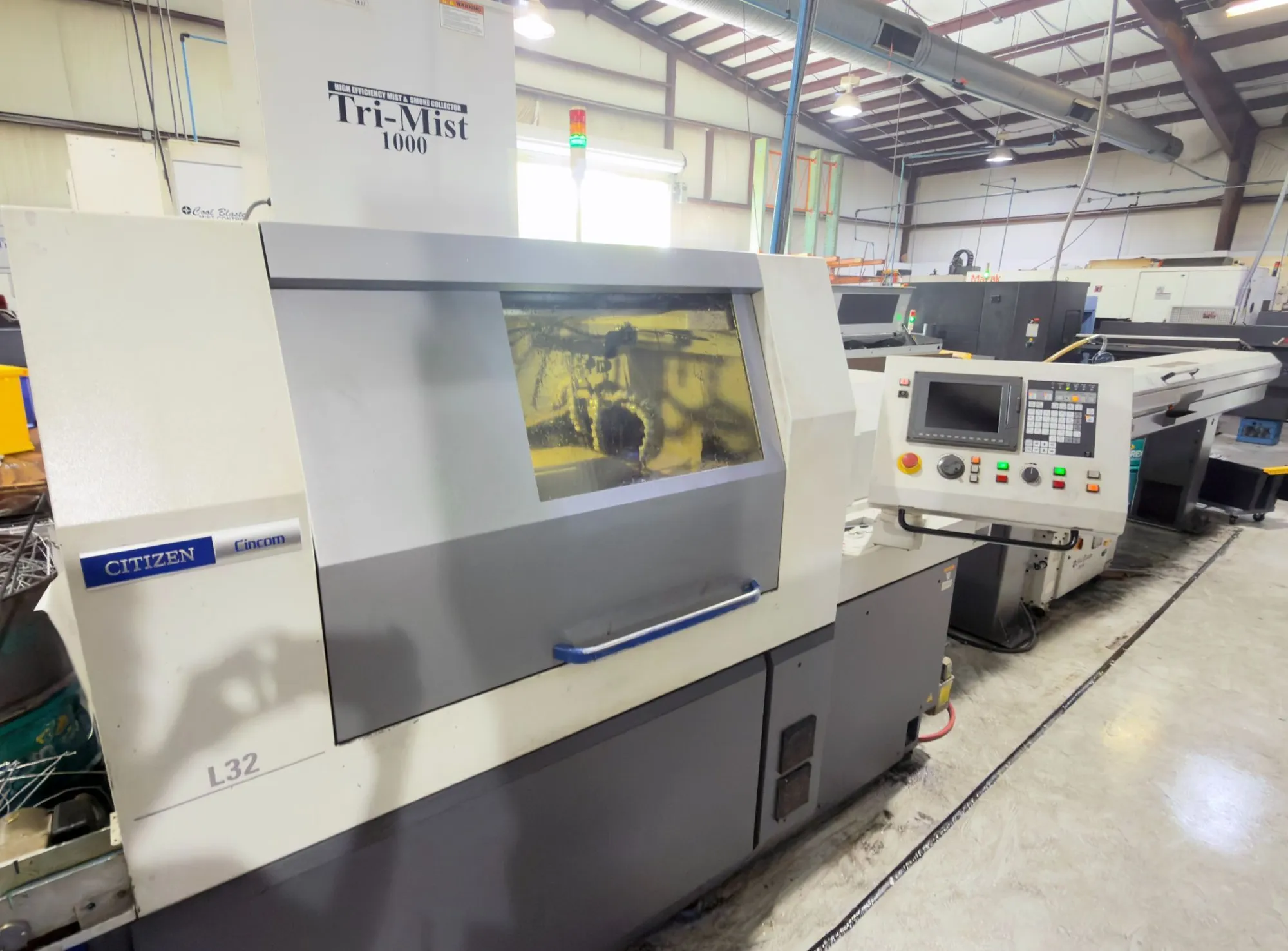

USED 2016 CITIZEN L32XII 1M12

2016 CITIZEN L32TYPE XII CNC Swiss Lathe, Model L32XII 1M12, featuring 9-axis control, 7.5 kW power, 8,000 RPM main spindle, equipped with C-320 Barfeed, Tri Mist 1000 Mist Collector, and parts conveyor. Dimensions: 99" x 55" x 70" H, Weight: 6393 lbs.

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and
accessories prior to purchase.

General Specifications per Brochure:

CNC Control: Cincom System M70LPC-VU
Simultaneous 9 Axis Control
Main Spindle
Machining Diameter: 1 1/4" (1.25")
Machining Length per One Chuck: 12.6"
Drilling Diameter: Up to 1.25"
Spindle Speed: 200 - 8,000 rpm
Spindle Input Increment: Full C-axis
Motor: 3.7/7.5 KW
Tooling: Sleeve 1" Gang Turning 5/8"

Back-Work:
Chucking Diameter of Pick-Off Spindle: 1.25"
Pick-Off Spindle Speed: 200 - 8,000 rpm
Pick-Off Spindle Motor: .75/1.5 KW
Spindle Increment Full C-axis

Rotary tool:
Rotary Spindle Speed: 200 - 6000 rpm
Rotary Tool Motor: 1.0 KW

Number of Tools Mounted: 30-40
Turning / Front ID / Back ID / Live tools: 6 / 4-9 / 13-19 / 7-11

Power Consumption: 13.2 KVA

Machine Dimensions: 99" x 55" x 70" H
Machine Weight: 6393 lbs.

All Items Must Be Verified By Buyer Prior to Purchase:

C-320 Barfeed,
High Pressure Unit.
Mist Collector, Tri Mist 1000
Parts Conveyor
FireTrace Fire Suppression System

Power on: 56934
Running time: 7233

Control:
Additional Control Options: Citizen/Mitsubishi M700 series CNC control
CNC-Wizard Software
