USED 2020 DMTC CGK5112JD
Overview
Description

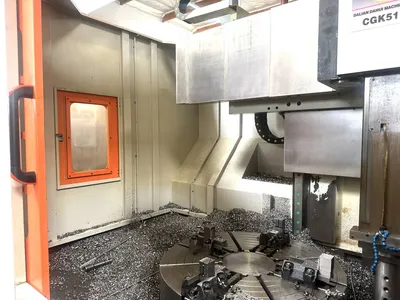

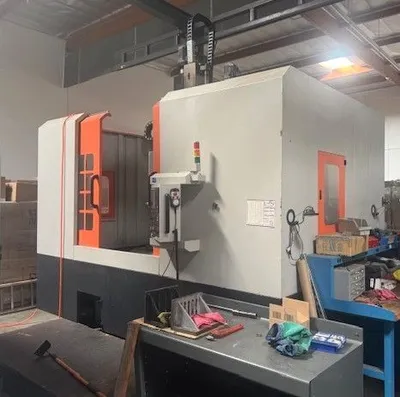

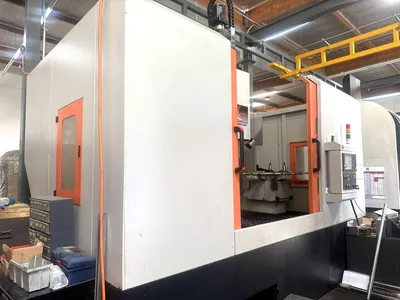

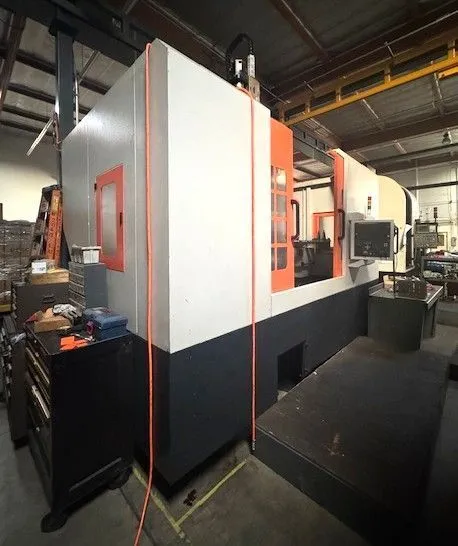

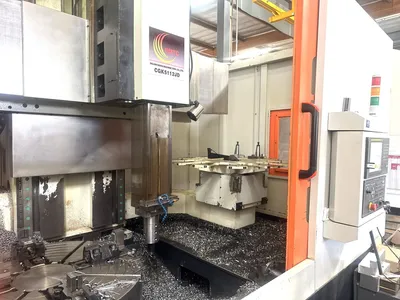

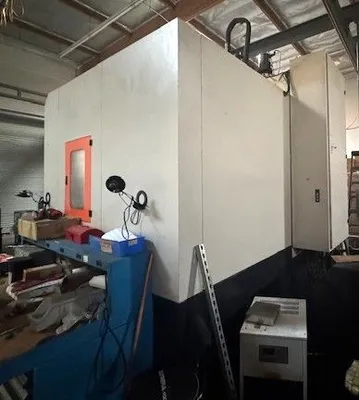

2-Geared, 47.24" Diameter, 39.37" Height, 400 RPM. Handling work pieces up to 11,023 pounds, this originally owned low hours 2020 Dalian Dahui Machine Tool (DMTC) cnc vertical turning lathe (VTL) is capable of providing high-precision and heavy-duty boring and turning.
Specifications
| MAX SWING | 47.24" | 1,199.9 mm |
|---|---|---|
| MAX CUTTING DIAMETER | 47.24" | 1,199.9 mm |
| CHUCK SIZE | 39.327" | 998.91 mm |
| MAX WEIGHT ON TABLE | 11,023 lb | 5,000 kg |
| SPINDLE SPEED | 400 RPM | 400 RPM |
| SPINDLE MOTOR | 29.5 hp | 22 kW |
| TOOL POSITIONS (ATC) | 8 | 8 |
Equipped With

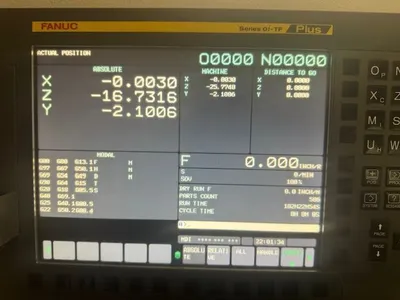

FANUC SERIES Oi-TF PLUS CNC CONTROL
TWO GEARS (STEPLESS)
SINGLE COLUMN
COOLANT SYSTEM
3-PHASE, 60HZ, 220V
** ORIGINAL OWNER
** AS OF MAY, 2026 - RUN TIME: 182 HOURS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
