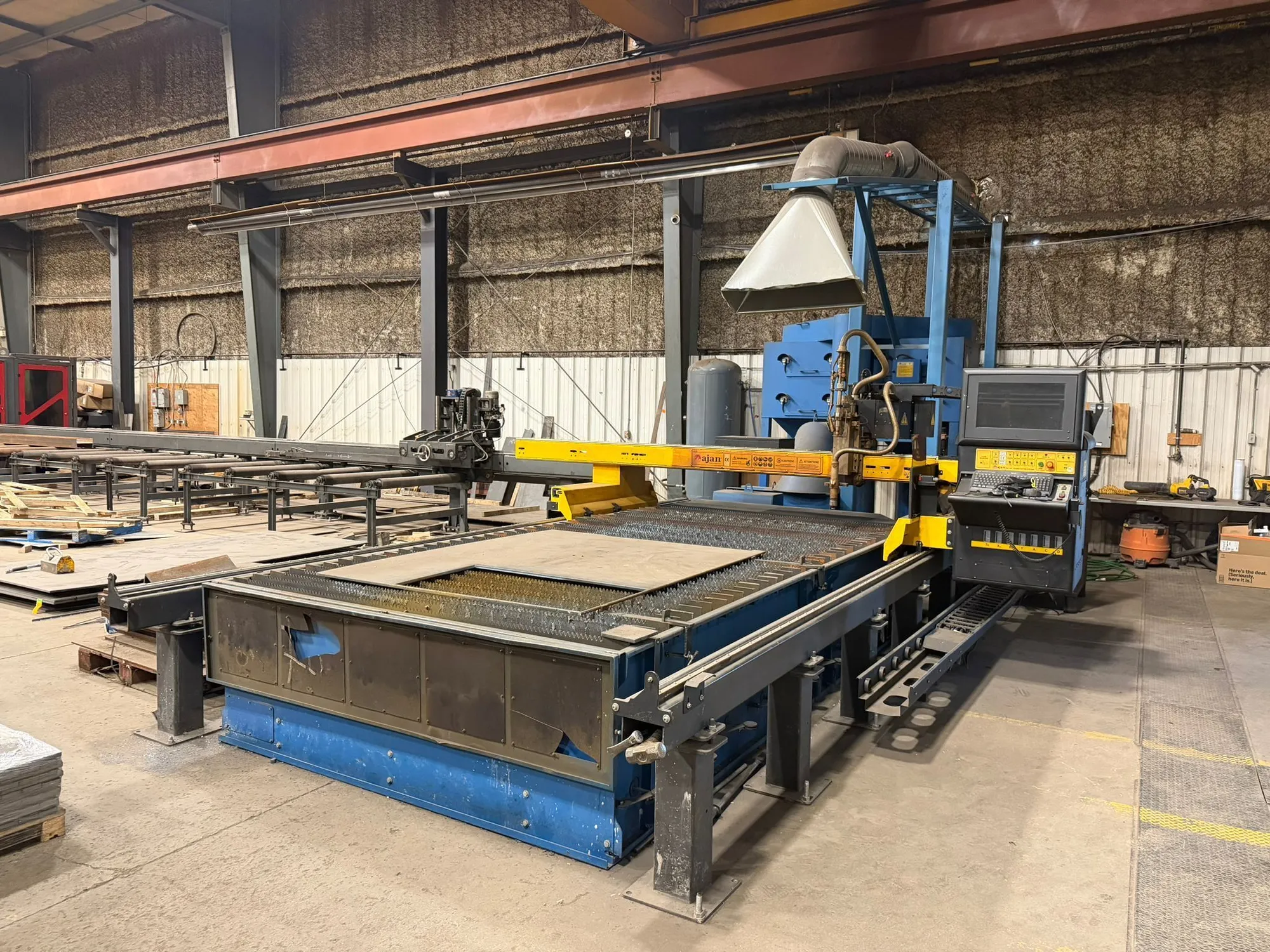

USED 2018 AJAN PP260A

Ajan CNC Plasma-Oxy Cutting Machine, Turkey
Model PP260A
Year 2018
Table size 2000mm x 4000mm
Capacity 260 Amps

Ajan CNC Plasma-Oxy Cutting Machine, Turkey
Model PP260A
Year 2018
Table size 2000mm x 4000mm
Capacity 260 Amps
Standard Specification from the manufacturer
• Optimizing the hole quality by using the OPTOHOLE technology.
• Automatic sheet metal reference point.
• Steel structure and smog extraction
• Central control panel
• Dual side rack, pinion system AC Servomotor on X axis, and Y axis.
• Precision Plasma 260 Ampere.
• Automatic CNC gas control.
• Automatic torch height control.
• Initial height control can be done with Ohmic, Switch and Arc sensing.
• The ability to go back to any position and resume cutting.
• Resume feature.
• Effective cutting without reducing the cutting speed for the vectors which have the same start and end angles (High speed machining)
• Standard Marking on Precision Plasma
• The possibility to override all the parameters while the machine is working.
• Free AJAN Drawing software.
• 15 m/min. rapid traverse speed.
• Working with standard DIN/ISO G Codes.
Electrics
Max. power consumption 52KW
Input Voltage AC 400/3PH/50-60 Hz
