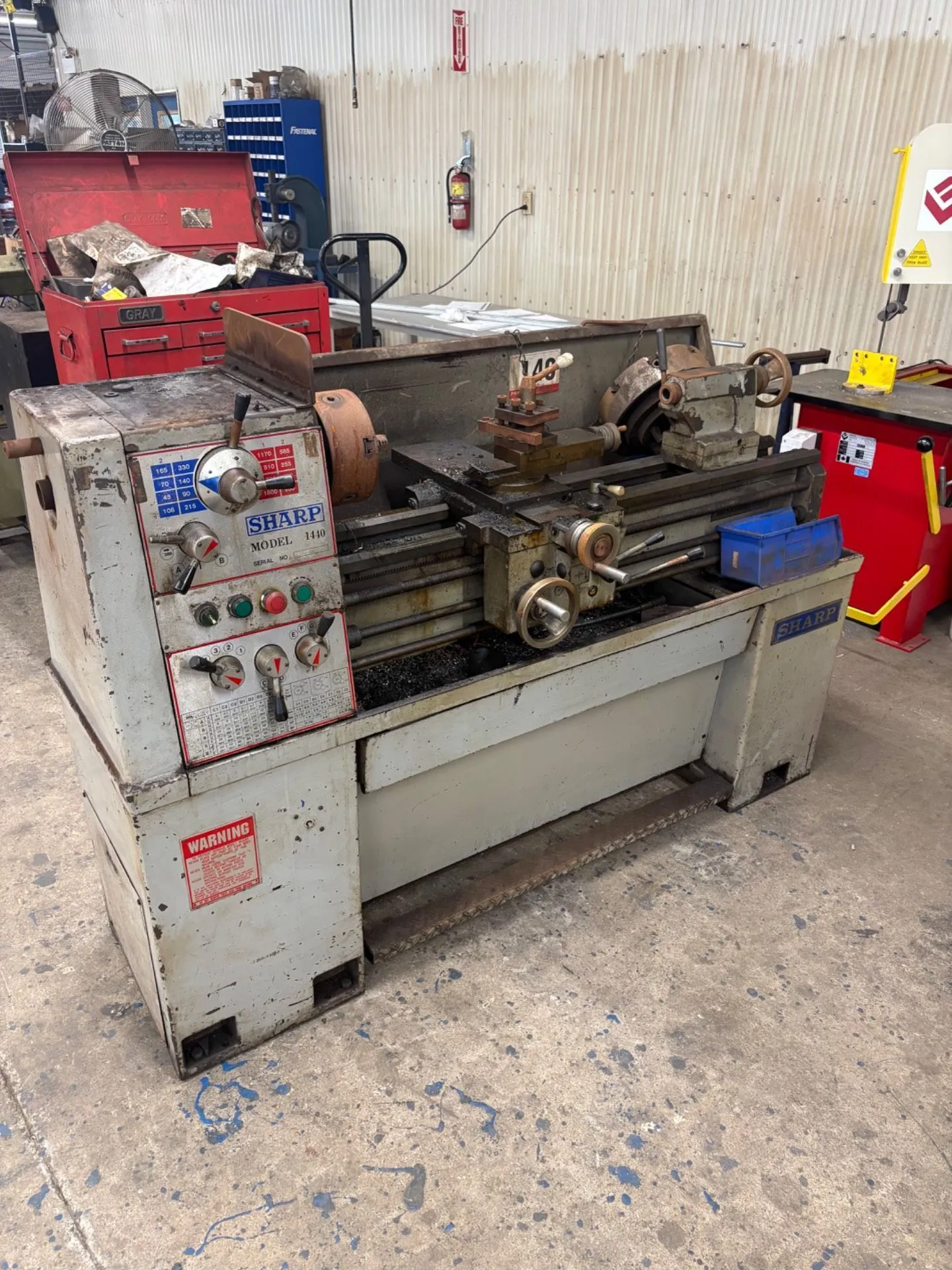

1990 SHARP 1440 MANUAL PRECISION LATHE
Manufacturer: Sharp Industries
Model: 1440
Mfg Date: 1990
POWER: —
Specs:
General
Machine Type: Manual Precision Lathe
Capacity
Swing Over Bed: 14 in
Swing Over Cross Slide: 8.62 in
Swing in Gap: up to 20 in
Distance Between Centers: 40 in
Spindle
Spindle Nose: D1-4 Camlock
Spindle Bore: 1.5 in
Spindle Speed: Up to 1,800 RPM
Drive System
Main Motor: 3 HP
Threading
Gearbox: Quick-Change
Tailstock
Tailstock Taper: MT3
Quill Travel: 4.5 in
Construction
Base: Cast Iron
Bedways: Hardened and Ground
Gap Bed: Removable
| Swing | 14" | 355.6 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 8.62" | 218.95 mm |
