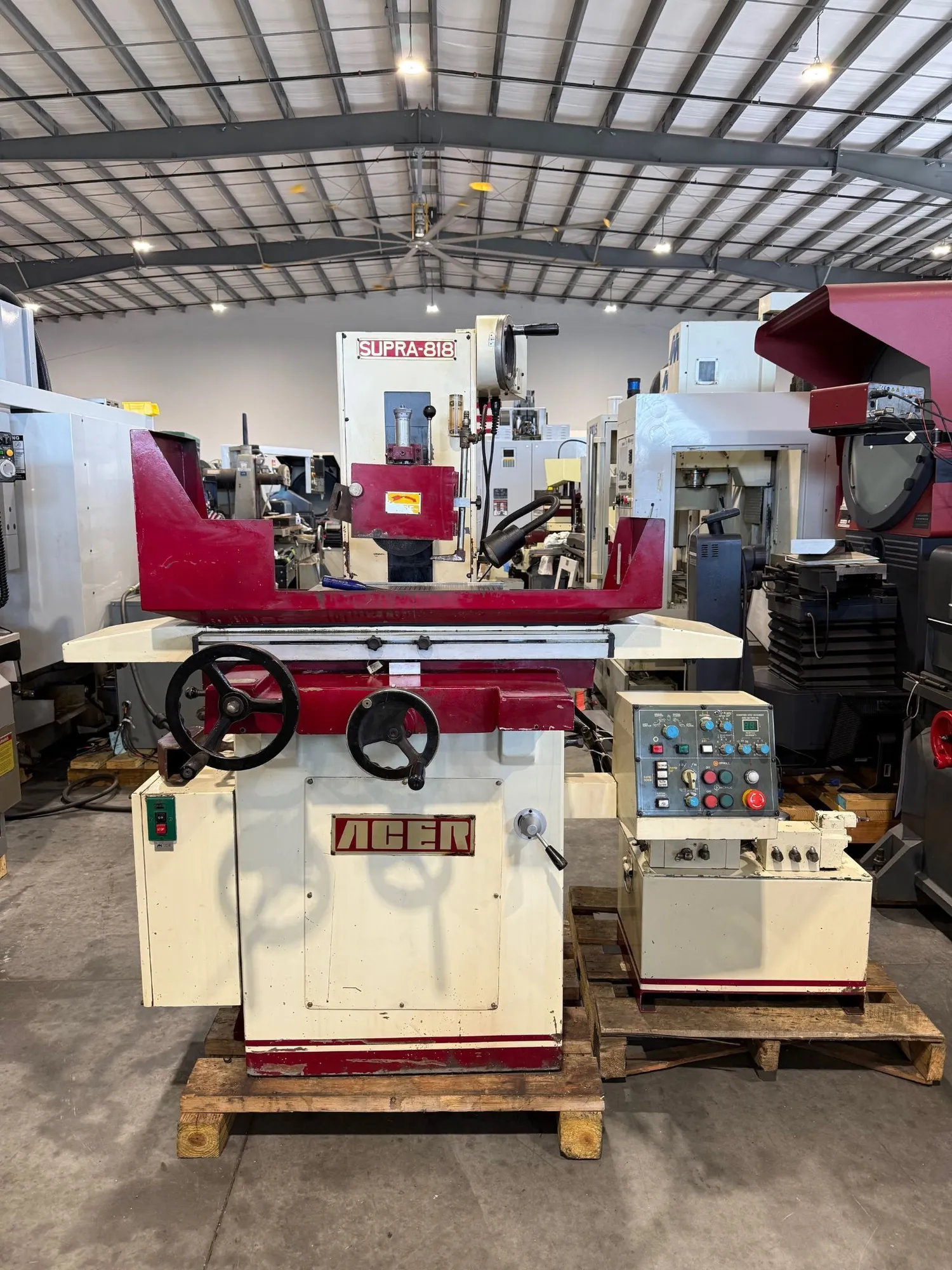

ACER SUPRA 818 8” x 18” Automatic Surface Grinder #8273
| Table-W | 8" | 203.2 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 3 hp | 2.2 kW |
| Grinding Wheel Width | 0.75" | 19.05 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 70” x70” x 75” H | 70” x70” x 75” H |
| Weight | 2,450 Lbs. | 2,450 Lbs. |
ACER SUPRA 818 8” x 18” Automatic Surface Grinder #8273
Reference # 8273
Model # SUPRA 818
Serial # 96050400
Year of manufacture- 1996’
Table size- 8” x 18”
Max grinding length- 18”
Max grinding width- 9”
Max longitudinal travel- 19”
Max cross travel- 9-3/8”
Longitudinal table speeds- 16 – 80 Ft/Min
Cross feed- 0.07” – 0.4”
Automatic downfeed increment- 0.00005” – 0.002”
Rapid travel- 280 mm/min
Grinding wheel size- 8” x ¾” x 1-1/4”
8” x 18” Magnetic chuck
Overhead dresser
Work light
Coolant system & Dust collector
Hydraulic tank & pump
3 H.P. Spindle motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 2,450 Lbs.
Machine dimensions- 70” x70” x 75” H
Machine location- F.O.B. Sarasota, Florida
