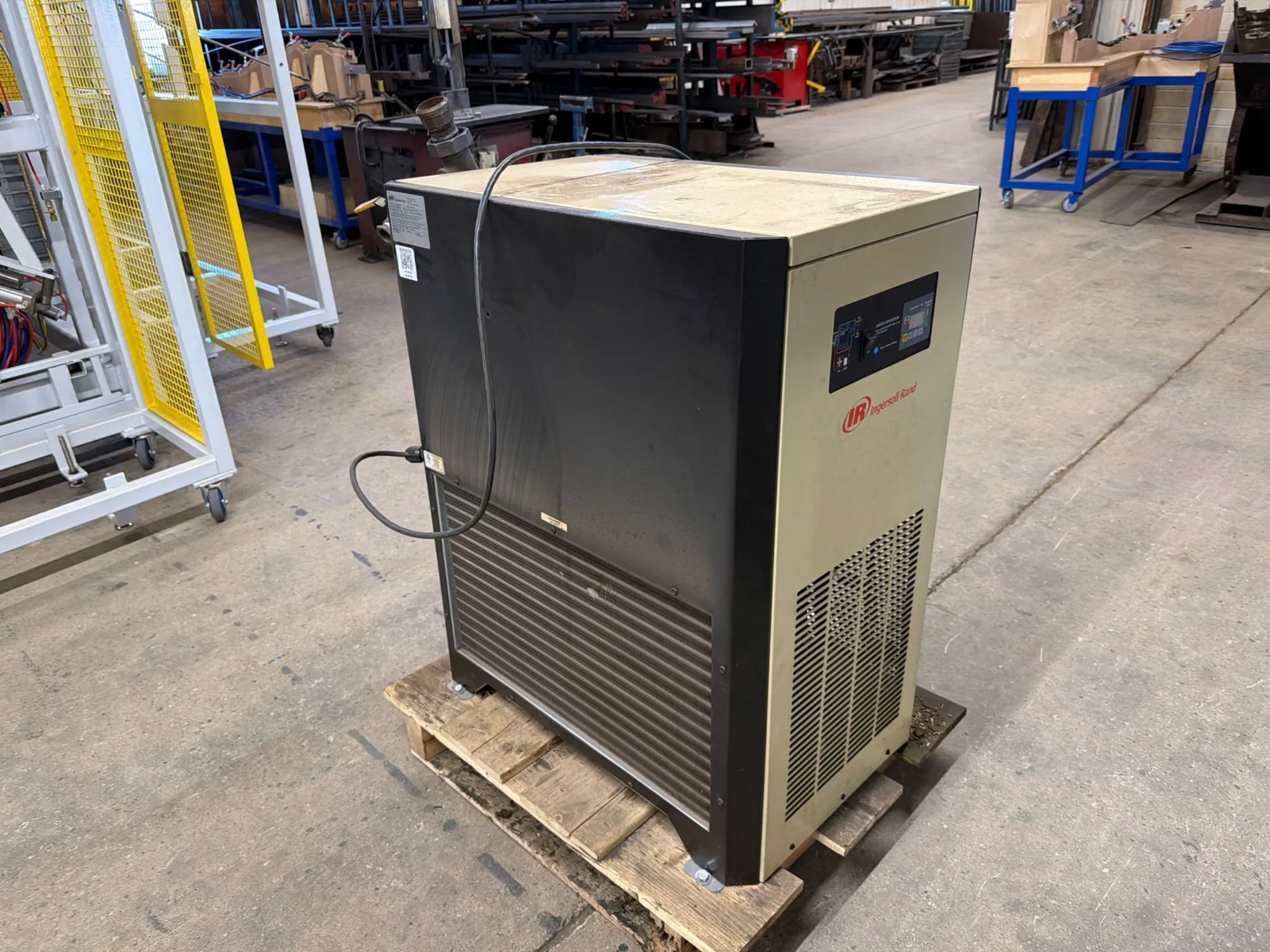

USED INGERSOLL RAND DA30NA200
Overview
Description
INGERSOLL RAND DA30NA200 REFRIGERATED AIR DRYER
Manufacturer: Ingersoll Rand
Model: DA30NA200
POWER: 230 V, 60 Hz, 1 Ph
Specs:
General
Machine Type: Refrigerated Air Dryer
Pressure
Max Allowable Working Pressure (MAWP): 200 PSIG
Refrigeration System
Refrigerant: R134A
Refrigerant Charge: 0.794 kg (1 lb 12 oz) per compressor
Compressor
Motor Power: 1 HP
Rated Load Amps (RLA): 6.5 A
Locked Rotor Amps (LRA): 35 A
Fan Motor
Power: 155 W
Full Load Amps (FLA): 0.66 A
Locked Rotor Amps (LRA): 1.18 A
Electrical
Voltage: 230 V
Phase / Frequency: 1 Ph / 60 Hz
Minimum Circuit Ampacity: 8.85 A
Max Fuse Size: 15 A
Specifications
INGERSOLL RAND DA30NA200 REFRIGERATED AIR DRYER
Manufacturer: Ingersoll Rand
Model: DA30NA200
POWER: 230 V, 60 Hz, 1 Ph
Specs:
General
Machine Type: Refrigerated Air Dryer
Pressure
Max Allowable Working Pressure (MAWP): 200 PSIG
Refrigeration System
Refrigerant: R134A
Refrigerant Charge: 0.794 kg (1 lb 12 oz) per compressor
Compressor
Motor Power: 1 HP
Rated Load Amps (RLA): 6.5 A
Locked Rotor Amps (LRA): 35 A
Fan Motor
Power: 155 W
Full Load Amps (FLA): 0.66 A
Locked Rotor Amps (LRA): 1.18 A
Electrical
Voltage: 230 V
Phase / Frequency: 1 Ph / 60 Hz
Minimum Circuit Ampacity: 8.85 A
Max Fuse Size: 15 A
