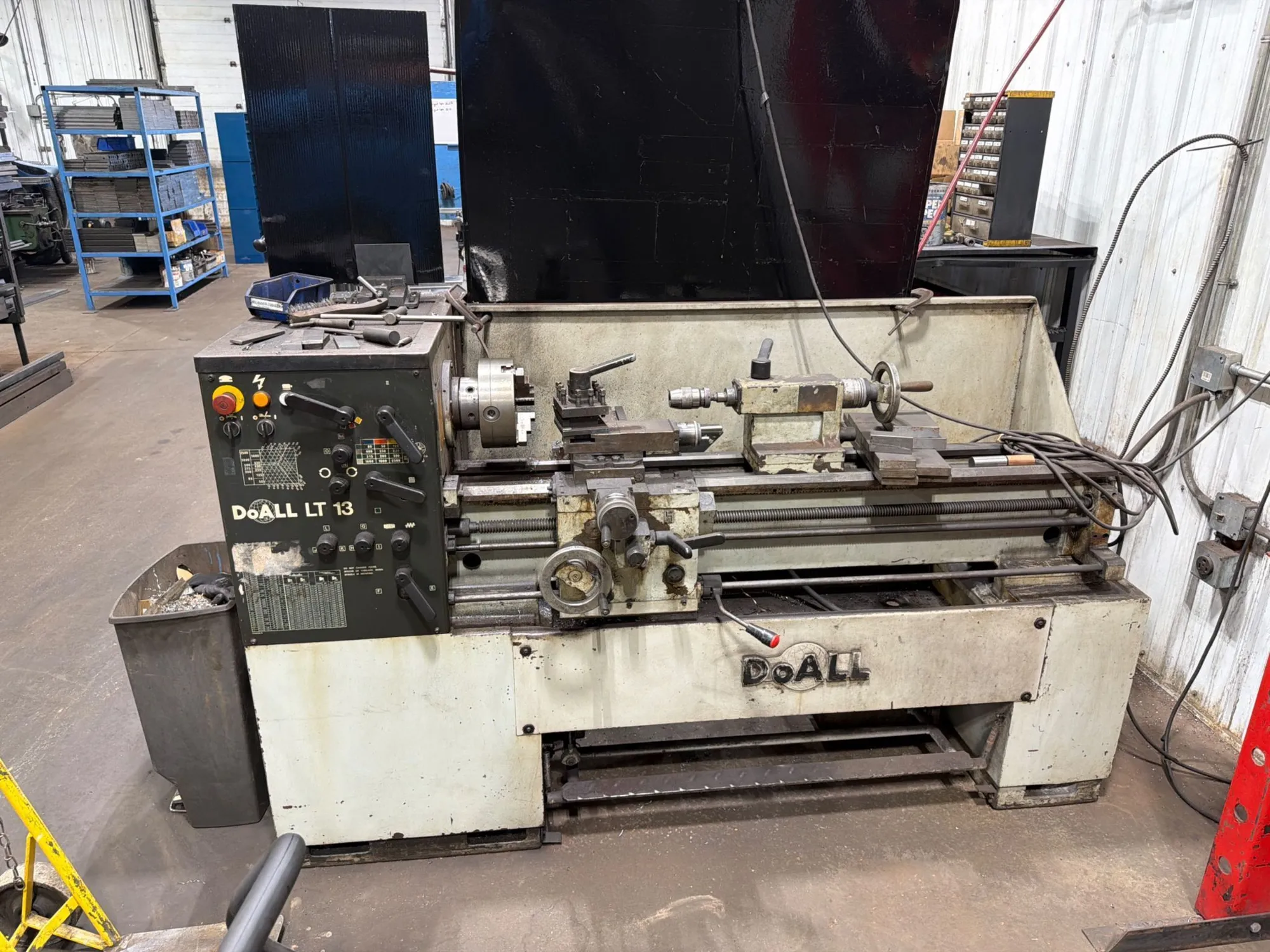

DOALL LT13 PRECISION ENGINE LATHE
Manufacturer: DoAll
Model: LT13
POWER: 220 / 440 V, 3 Ph
Specs:
General
Machine Type: Precision Engine Lathe
Capacity
Swing Over Bed: 13 in
Distance Between Centers: approx. 40 in
Spindle
Spindle Speed: Up to 2,500 RPM
Spindle Nose: D1-6
Spindle Bore: approx. 1-3/8 in
Threading
English Threads: 4 – 72 TPI
Metric Threads: 0.2 – 7 mm
Feed Rates
Longitudinal Feed Range: .0017 – .0287 IPR
Cross Feed Range: .0008 – .0130 IPR
Tailstock
Tailstock Taper: MT3
Quill Travel: approx. 4-3/4 in
Construction
Bed Width: 8-7/8 in (hardened)
Electrical
Voltage: 220 / 440 V
Phase: 3 Ph
| Swing | 13" | 330.2 mm |
| Centers | 60" | 1,524 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Swing Over Cross Slide | 7.25" | 184.15 mm |
