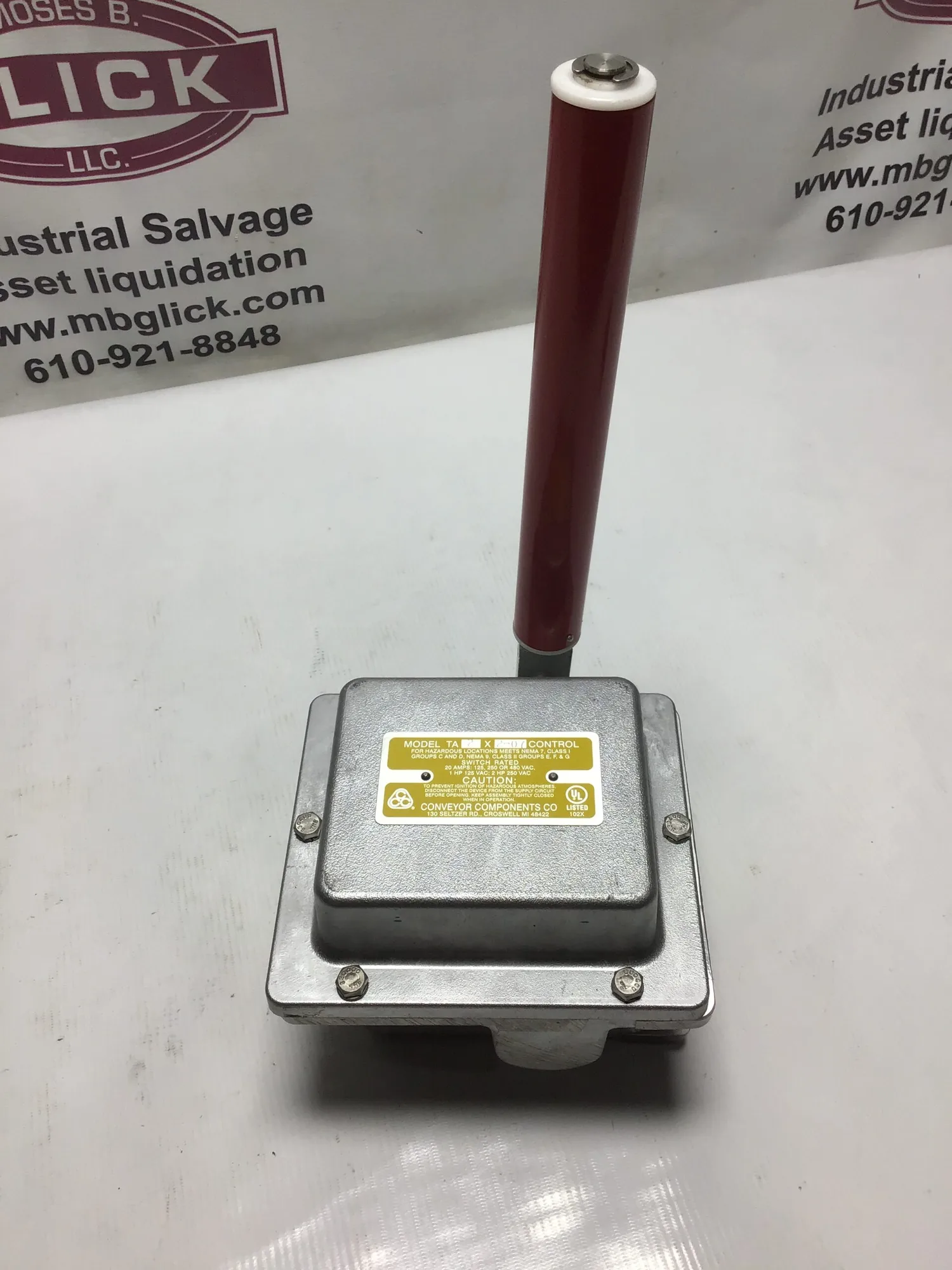

Conveyor Components Co. TA2X2-07 Belt Alignment Control 20A 125/250/480VAC

Model: TA2X2-07 Belt Alignment Control
Manufacturer: Conveyor Components Company

Function: Monitors belt alignment and signals when the conveyor belt drifts too far off track, helping to prevent damage and downtime.
Key Specifications:
Switch Type:

Two SPDT (Single Pole Double Throw) microswitches

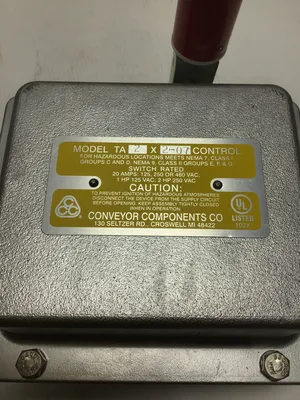

Rated at 20A for 125, 250, and 480 VAC
Switch Type:

Two SPDT (Single Pole Double Throw) microswitches

Rated at 20A for 125, 250, and 480 VAC
Construction:

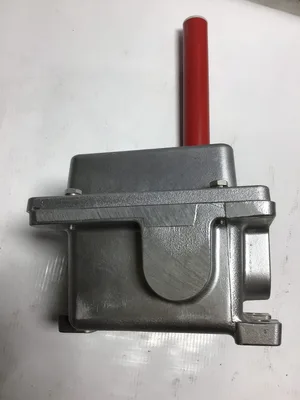

Cast aluminum housing

Red polyester powder-coated roller

Durable and corrosion-resistant
Construction:

Cast aluminum housing

Red polyester powder-coated roller

Durable and corrosion-resistant
Operation:

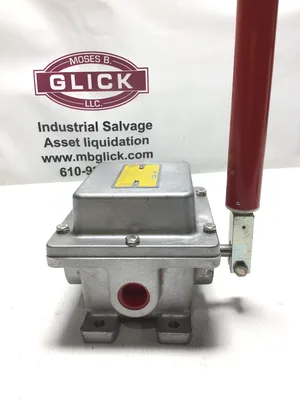

Roller arm pivots up to 90° in either direction

Spring-loaded arm returns to neutral automatically

Bi-directional operation (works in both belt directions)

Field-adjustable trip points via set-screw on the cam
Operation:
Roller arm pivots up to 90° in either direction
Roller arm pivots up to 90° in either direction
Spring-loaded arm returns to neutral automatically
Spring-loaded arm returns to neutral automatically
Bi-directional operation (works in both belt directions)
Bi-directional operation (works in both belt directions)
Field-adjustable trip points via set-screw on the cam
Field-adjustable trip points via set-screw on the cam
Mounting:

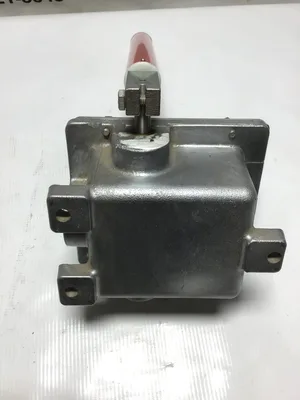

Three 13/32″ diameter holes for mounting

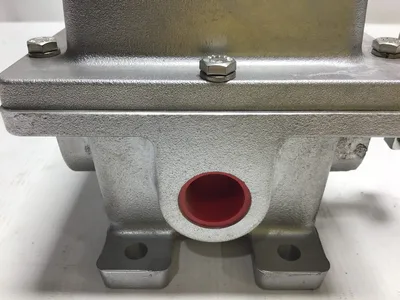

One 3/4″ NPT conduit entry
Mounting:

Three 13/32″ diameter holes for mounting

One 3/4″ NPT conduit entry
Environmental Protection:

NEMA Type 4/4X: Weatherproof and corrosion-resistant

NEMA Type 5: Dust-tight

Explosion-proof models also available
Environmental Protection:
NEMA Type 4/4X: Weatherproof and corrosion-resistant
NEMA Type 4/4X: Weatherproof and corrosion-resistant
NEMA Type 5: Dust-tight
NEMA Type 5: Dust-tight
Explosion-proof models also available
Explosion-proof models also available
Temperature Range:

Operates from -50°F to 104°F (-46°C to 40°C)
Temperature Range:

Operates from -50°F to 104°F (-46°C to 40°C)

Weight: 13 lbs
Dimensions: 19 × 11 × 12 in
