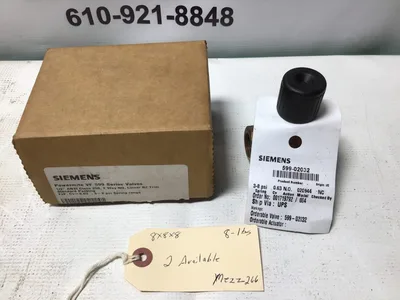

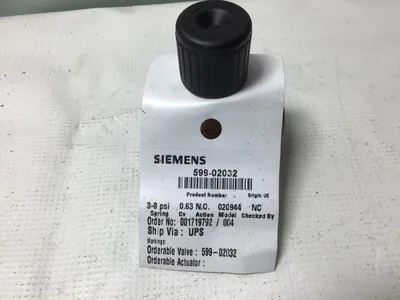

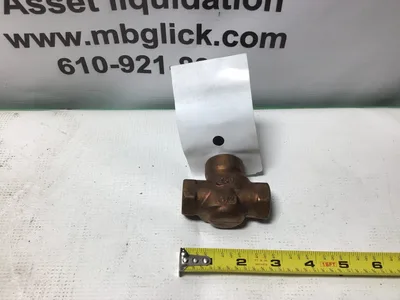

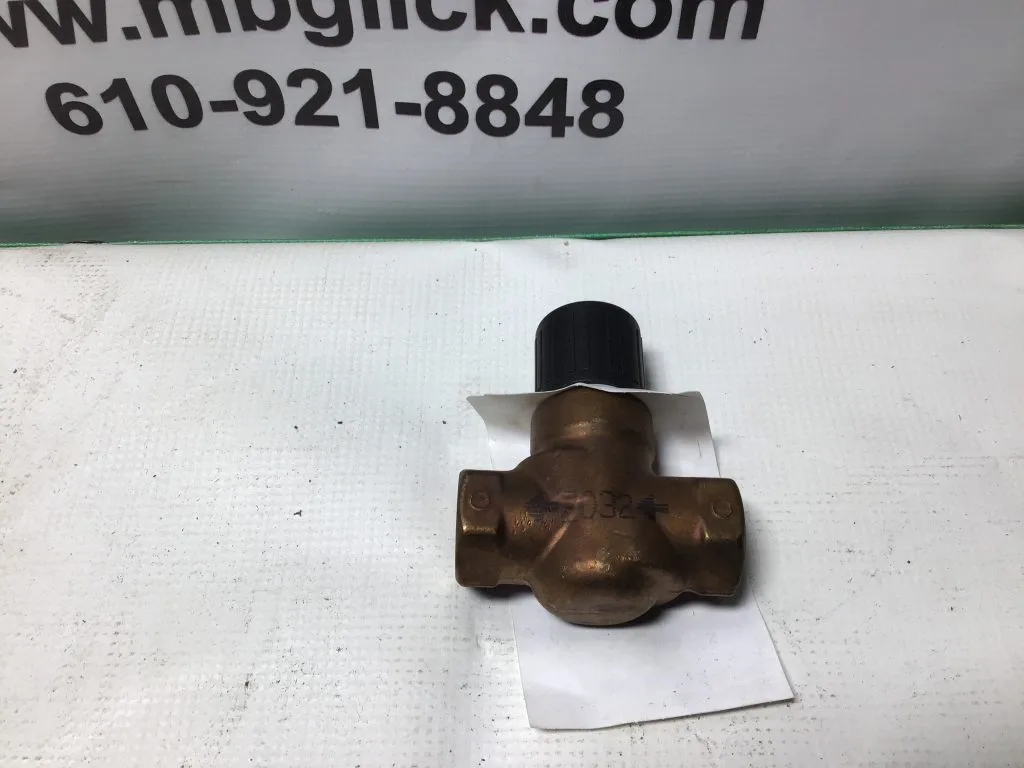

Siemens 599-02032 Powermite MT Series Terminal Unit 2-Way Valve
Overview
Description
New, in box.
Powermite MT Series, 1/2″ 2-Way, 0.63 Cv, NO, Modified Equal Percentage, F×F, Brass Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range,
Port Configuration
2-Way Normally open
End Connection
FxF
Medium
Water , Water with anti-freeze
DN
15
Medium temperature
35…250 ºF
Dimensions (W x H x D)
2.76 x 3.05 x 1.57 in
file:///C:/Users/Estoltzfus/Downloads/44961_Powermite%20MT%20Series%20Terminal%20Unit%202-Way%20Valves%20Sub_en.pdf
New, in box.
Powermite MT Series, 1/2″ 2-Way, 0.63 Cv, NO, Modified Equal Percentage, F×F, Brass Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range,
Port Configuration
2-Way Normally open
End Connection
FxF
Medium
Water , Water with anti-freeze
DN
15
Medium temperature
35…250 ºF
Dimensions (W x H x D)
2.76 x 3.05 x 1.57 in
file:///C:/Users/Estoltzfus/Downloads/44961_Powermite%20MT%20Series%20Terminal%20Unit%202-Way%20Valves%20Sub_en.pdf
Specifications
| Dimensions | 8 × 8 × 8 in | 8 × 8 × 8 in |
|---|---|---|
| Weight | 8 lbs | 8 lbs |
Weight: 8 lbs
Dimensions: 8 × 8 × 8 in
