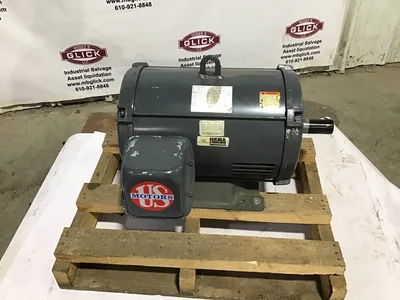

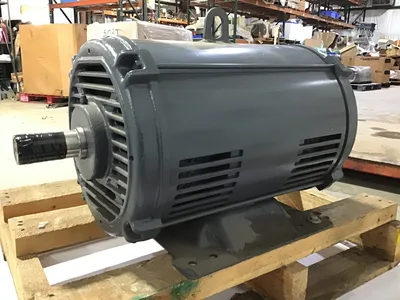

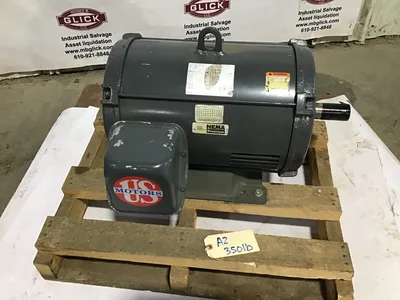

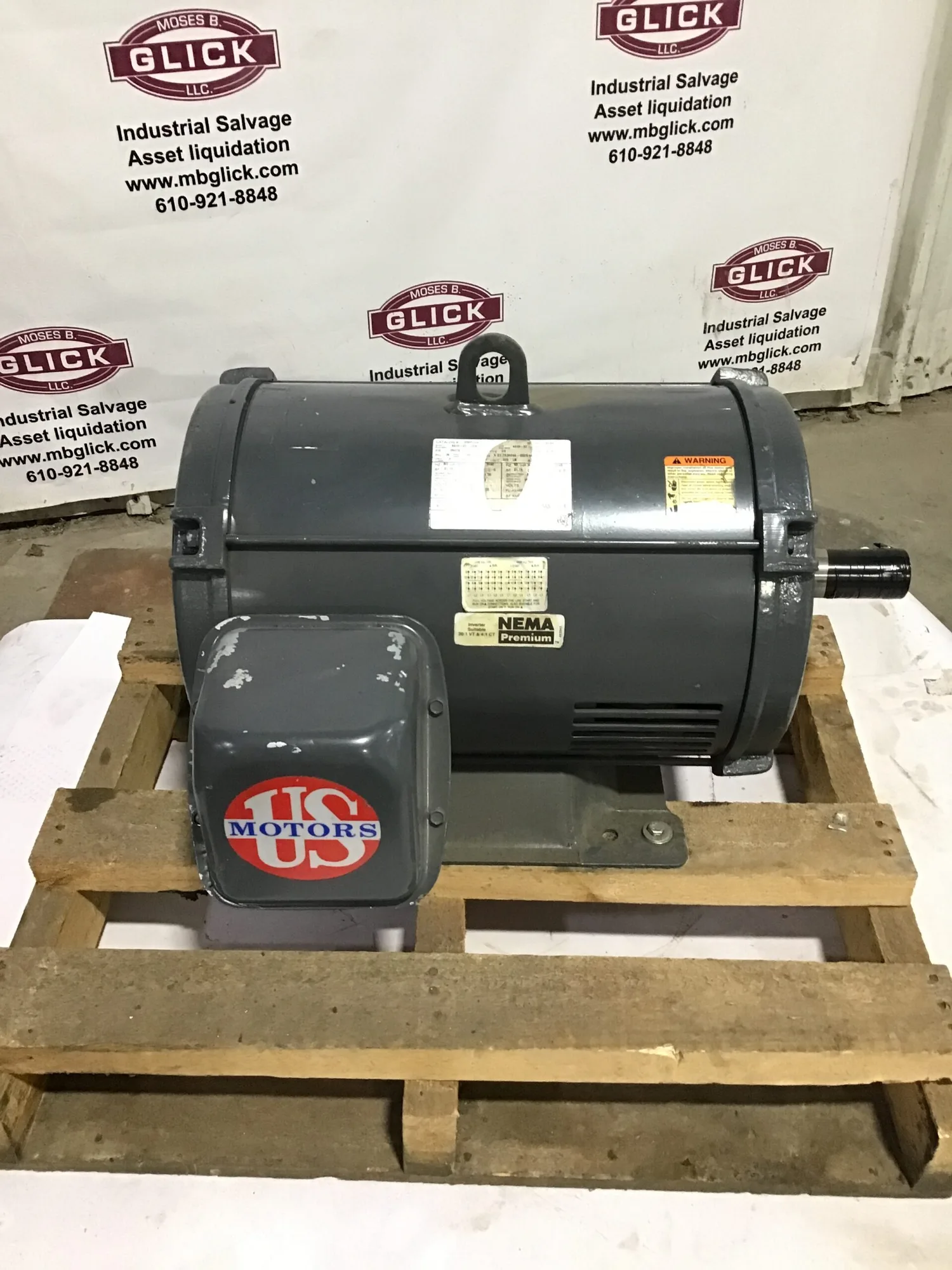

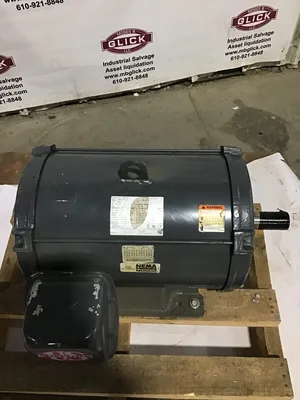

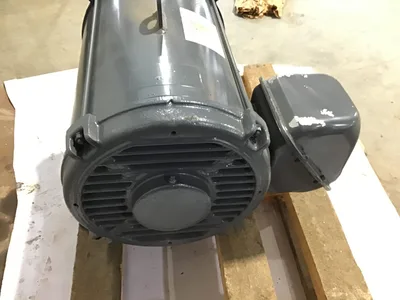

D30P1DS Nidec | 30 hp 3600 RPM 284TS Frame 208-230/460V ODP Electric Motor Nidec

D30P1DS Nidec | 30 hp 3600 RPM 284TS Frame 208-230/460V ODP Electric Motor Nidec
30 hp 3600 RPM, 68.0/34.0 amps 208-230/460V Three Phase
NEMA 284TS Frame Keyed Shaft 1 5/8″ Diameter x 3 1/4″
ODP; Service Factor: 1.15, Overload protection = None
Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation

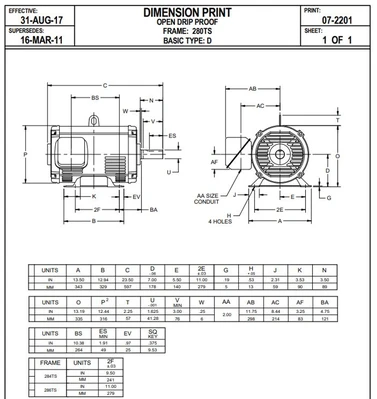

“C” Dimension 23.5″
1 Year Manufacture Warranty

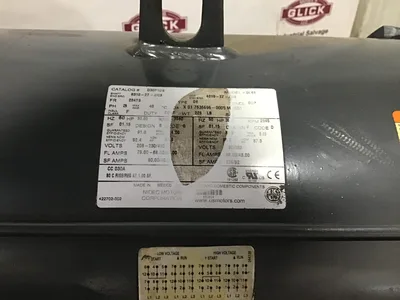

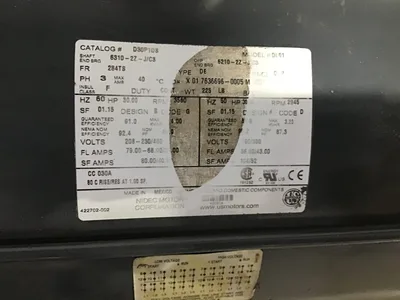

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model DC01

Weight: 350 lbs
Dimensions: 30 × 24 × 24 in
