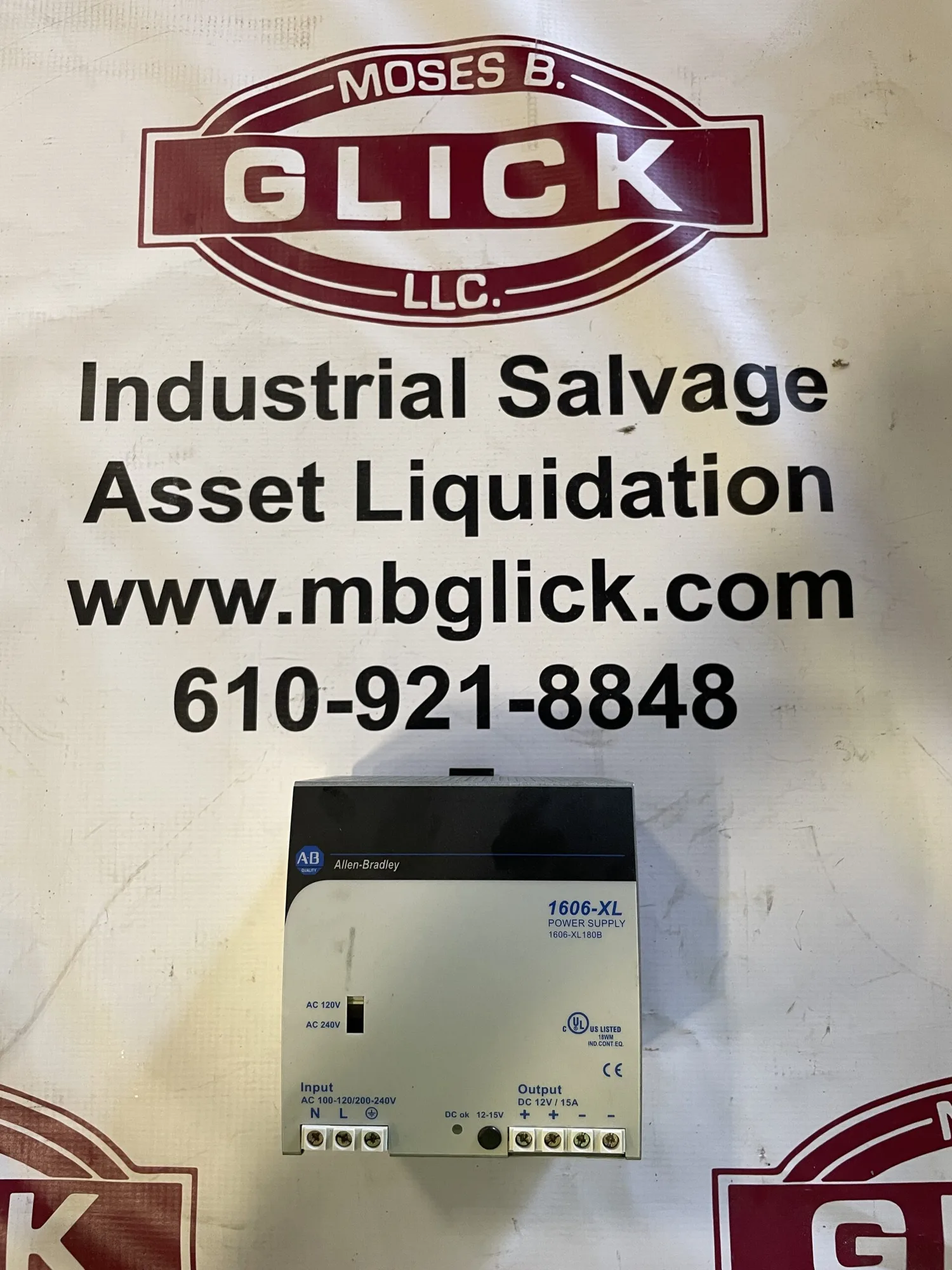

Allen-Bradley 1606-XL180B SER A Power Supply 12-15VDC 100-120V/200-240V

The Allen-Bradley 1606-XL180B is a highly reliable industrial power supply unit designed for use in automation and control systems. Below are its key features and specifications:
Key Features:
Output Voltage: Adjustable between 12V to 15V DC.
Output Current: Rated for 12A at 12V DC or 10A at 15V DC, with a total power output of 180W.
Input Voltage: Wide input range of:

85-264V AC (single-phase)
90-375V DC
85-264V AC (single-phase)
90-375V DC
Efficiency: High efficiency, around 87%, ensuring minimal power loss.
DIN Rail Mounting: Compact design for seamless integration into industrial control panels.
Power Boost Capability: Provides a temporary current boost up to 18A for transient loads.
Performance and Reliability:
Temperature Range: Operates in environments from 0°C to 70°C, with derating above 60°C.
Protection Features: Includes overload, short circuit, and overvoltage protection.
Certifications: CE, UL, and other compliance marks for safety and performance standards.
Active Inrush Current Limiter: Helps manage power surges during startup.
Applications:
This power supply is widely used in:
Industrial automation
Control systems
Machine building
Process monitoring
Availability:
The 1606-XL180B model has been discontinued by the manufacturer, but it may still be available through surplus and secondary markets. If unavailable, you might consider compatible alternatives like the Allen-Bradley 1606-XLS series.

Weight: 6 lbs
Dimensions: 9 × 9 × 6 in
