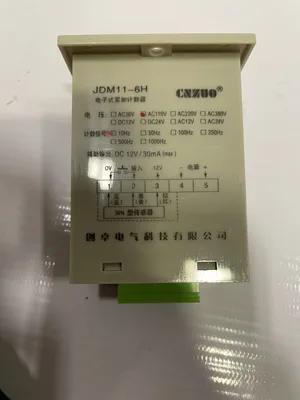

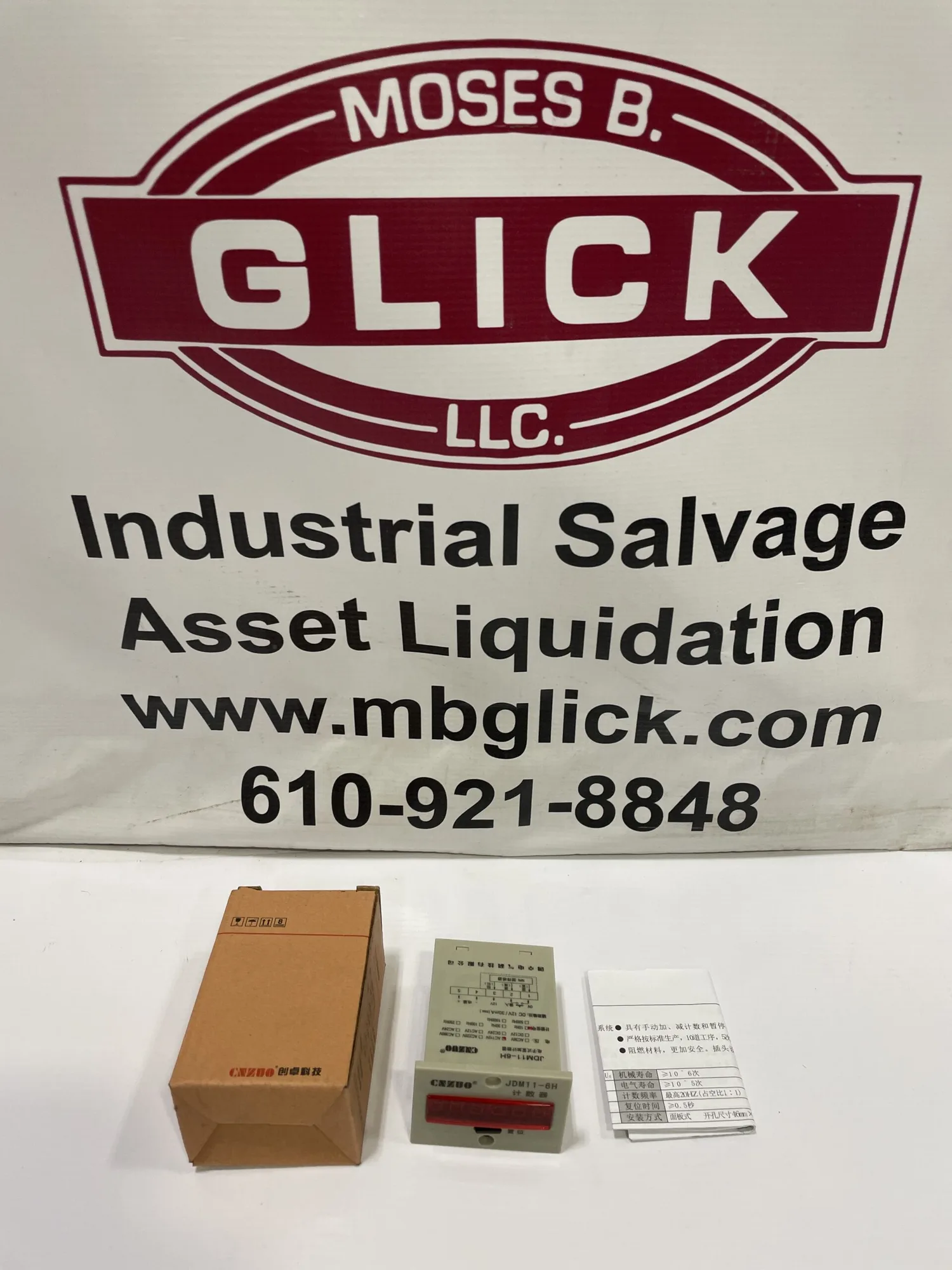

CNZUO JDM11-6H 6 Digit Digital Counter 110V 12V 10Hz -NIB

The CNZUO JDM11-6H is a 6-digit electronic digital counter designed for industrial and automation applications. Here are its key specifications:
Counting Range: 1-999999
Display: 6-digit, 0.36-inch LED
Operating Voltage: Available in AC 220V, AC 110V, DC 24V, DC 12V
Input Signal: Supports contact, voltage level, NPN sensor, and PNP sensor
Counting Speed: 10 cps (pulse width ≥50ms)
Reset Mode: Manual push-button reset
Power Consumption: Maximum 3VA
Memory: No-power memory retention for up to 10 years
Mounting: Panel type, perforation dimensions 51x26mm
Operating Temperature: -5°C to 45°C

Weight: 5 lbs
Dimensions: 8 × 7 × 6 in
