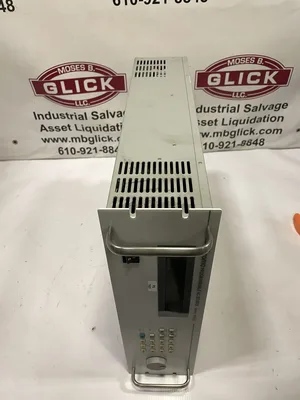

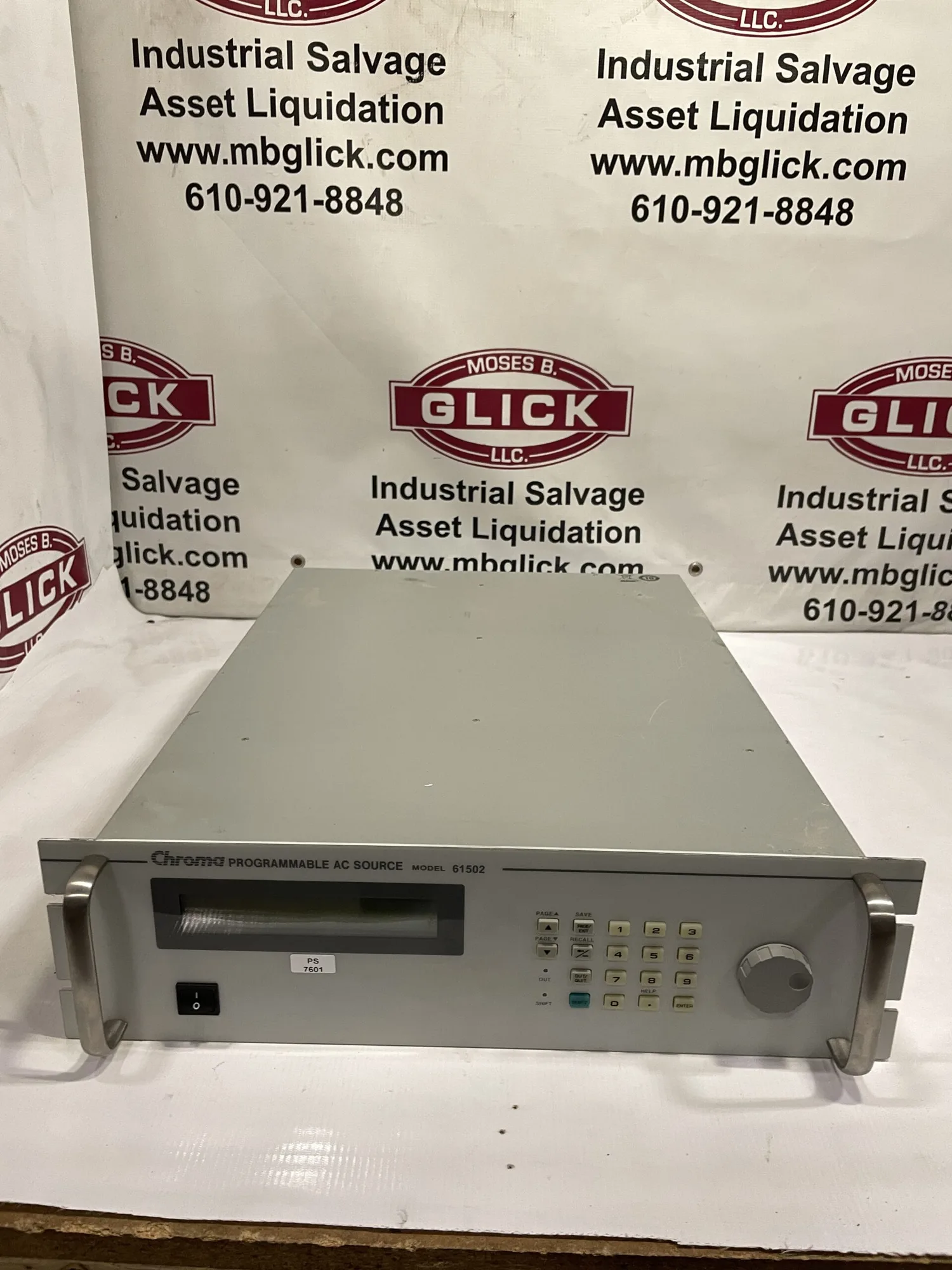

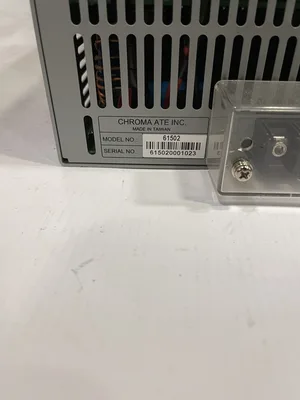

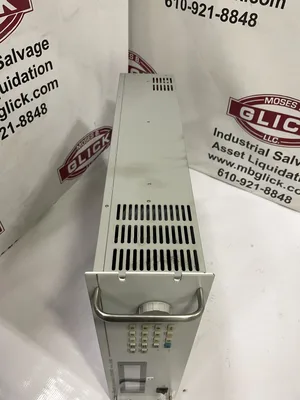

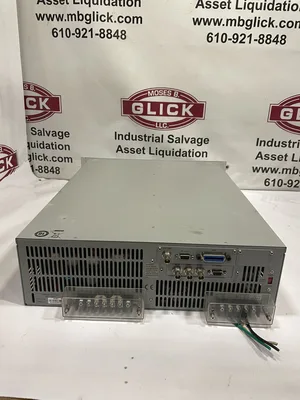

Chroma ATE 61502 Programmable AC Source Power Supply 0-300V 1000W

The Chroma ATE 61502 is a professional-grade programmable AC power source designed for advanced testing, research, and development of electronic devices. Manufactured by Chroma ATE, it is part of the 61500 Series, renowned for precision, flexibility, and reliability in simulating real-world AC power conditions. This model delivers up to 1 kVA (1000 VA) output power, with a voltage range of 0–300 V AC and a frequency range from 15 Hz to 1 kHz, enabling engineers to emulate a wide spectrum of electrical environments.
Key Capabilities
The 61502 is engineered to generate precise and programmable AC waveforms, allowing for thorough evaluation of electronic equipment under varying power conditions. Its features include:
Programmable Output Voltage and Frequency: Easily configurable to simulate line fluctuations, frequency deviations, and custom test profiles.
Programmable Output Voltage and Frequency: Easily configurable to simulate line fluctuations, frequency deviations, and custom test profiles.
AC + DC Mode: Allows superimposing a DC offset on AC signals, enabling testing of devices sensitive to line biases.
AC + DC Mode: Allows superimposing a DC offset on AC signals, enabling testing of devices sensitive to line biases.
Waveform Generation: Supports sinusoidal, square, triangular, and arbitrary waveforms, including LIST, PULSE, and STEP sequences for advanced testing.
Waveform Generation: Supports sinusoidal, square, triangular, and arbitrary waveforms, including LIST, PULSE, and STEP sequences for advanced testing.
Power Quality Simulation: Capable of introducing harmonics, sags, swells, and transients to mimic real-world AC disturbances, critical for compliance testing to standards such as IEC 61000.
Power Quality Simulation: Capable of introducing harmonics, sags, swells, and transients to mimic real-world AC disturbances, critical for compliance testing to standards such as IEC 61000.
Series and Parallel Operation: Can be combined with other units to achieve higher output voltage or three-phase configurations.
Series and Parallel Operation: Can be combined with other units to achieve higher output voltage or three-phase configurations.
High Measurement Precision: Integrated measurement functions allow monitoring of voltage, current, frequency, and power metrics with high accuracy.
High Measurement Precision: Integrated measurement functions allow monitoring of voltage, current, frequency, and power metrics with high accuracy.
Compact, High-Density Design: Utilizes advanced PWM technology to deliver high power in a small footprint, suitable for laboratory benches or production test setups.
Compact, High-Density Design: Utilizes advanced PWM technology to deliver high power in a small footprint, suitable for laboratory benches or production test setups.
Applications
The Chroma 61502 is highly versatile and is used in:
Research and Development (R&D): Validating electronics under controlled and repeatable AC conditions.
Research and Development (R&D): Validating electronics under controlled and repeatable AC conditions.
Quality Assurance and Production Testing: Ensuring devices meet design specifications and withstand real-world power variations.
Quality Assurance and Production Testing: Ensuring devices meet design specifications and withstand real-world power variations.
Power Electronics Testing: Including inverters, UPS systems, and motor drives.
Power Electronics Testing: Including inverters, UPS systems, and motor drives.
Compliance and Safety Testing: Simulating disturbances for standards like IEC 61000-4 series (immunity tests).
Compliance and Safety Testing: Simulating disturbances for standards like IEC 61000-4 series (immunity tests).
Aerospace, Military, and Industrial Applications: Stress-testing equipment under extreme and abnormal power conditions.
Aerospace, Military, and Industrial Applications: Stress-testing equipment under extreme and abnormal power conditions.

Weight: 53 lbs
Dimensions: 29 × 23 × 10 in
