USED LEESON ELECTRIC C42D17FK1C

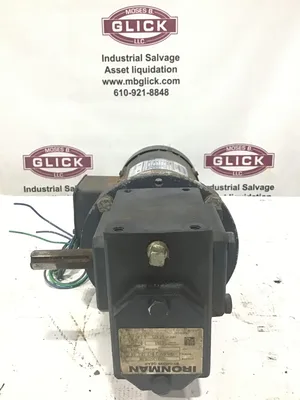

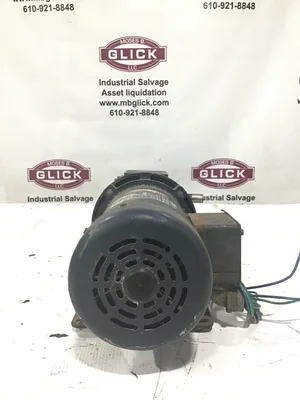

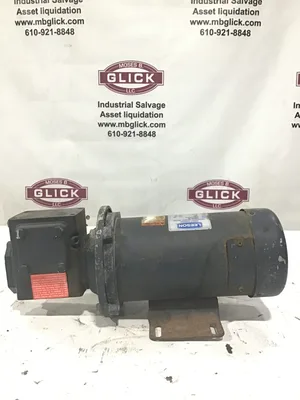

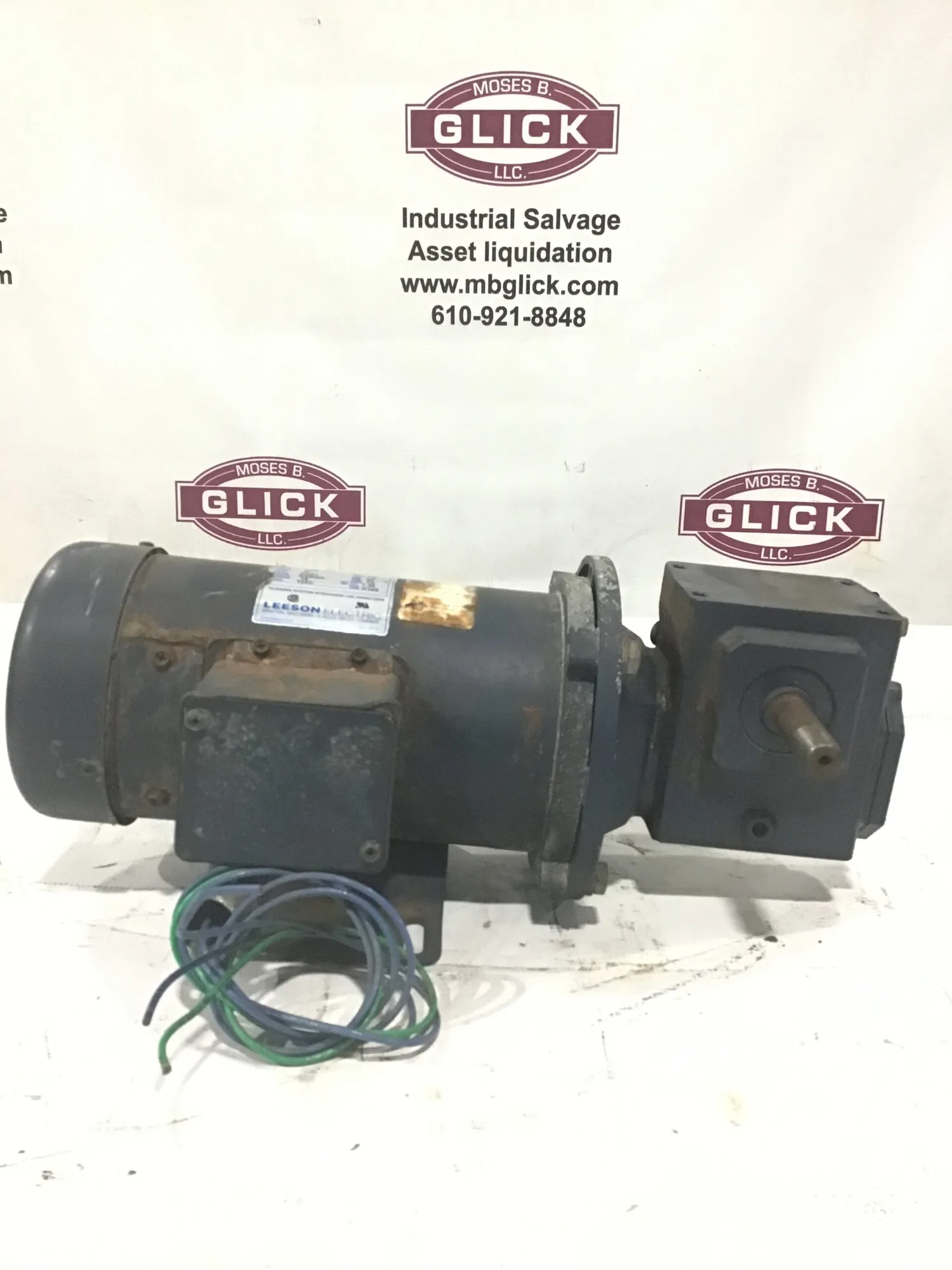

Up for sale is a heavy-duty industrial DC motor and gear reducer assembly featuring a reliable Leeson permanent magnet motor paired with a rugged Ironman gear reducer. This setup is ideal for applications requiring consistent torque, speed control, and durability.
⚙️ Motor Specifications:

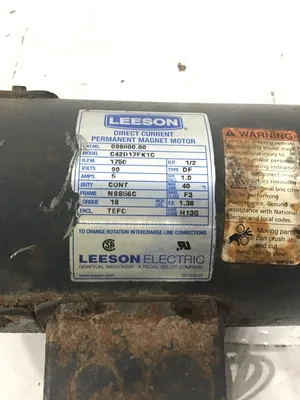

Brand: Leeson Electric
Brand: Leeson Electric
Model: C42D17FK1C
Model: C42D17FK1C
Catalog #: 098000.00
Catalog #: 098000.00
Horsepower: 1/2 HP
Horsepower: 1/2 HP
Voltage: 90 V DC
Voltage: 90 V DC
Amps: 5.0
Amps: 5.0
Speed: 1750 RPM
Speed: 1750 RPM
Duty: Continuous
Duty: Continuous
Enclosure: TEFC
Enclosure: TEFC
Frame: N56C
Frame: N56C
Insulation Class: F
Insulation Class: F
Torque: 18 in-lbs
Torque: 18 in-lbs
Ambient Rating: 40°C
Ambient Rating: 40°C
⚙️ Gear Reducer Specifications:

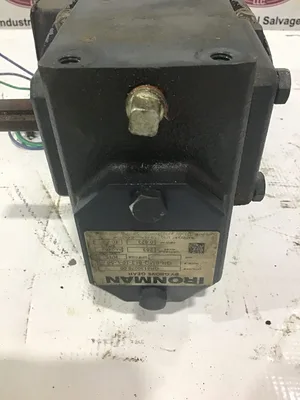

Brand: Ironman
Brand: Ironman
Model: GR-BMO-83-10-L56
Model: GR-BMO-83-10-L56
Gear Ratio: 10:1
Gear Ratio: 10:1
Output Speed: ~175 RPM
Output Speed: ~175 RPM
Mounting: C-face compatible
Mounting: C-face compatible
🛠️ Key Features:
High-quality industrial-grade construction
High-quality industrial-grade construction
TEFC motor design keeps dust and debris out
TEFC motor design keeps dust and debris out
Speed reduction + torque increase via gearbox
Speed reduction + torque increase via gearbox
Ideal for conveyors, mixers, automation, and machinery
Ideal for conveyors, mixers, automation, and machinery
Reliable Leeson motor known for long service life
Reliable Leeson motor known for long service life

Weight: 40 lbs
Dimensions: 18 × 9 × 7 in
