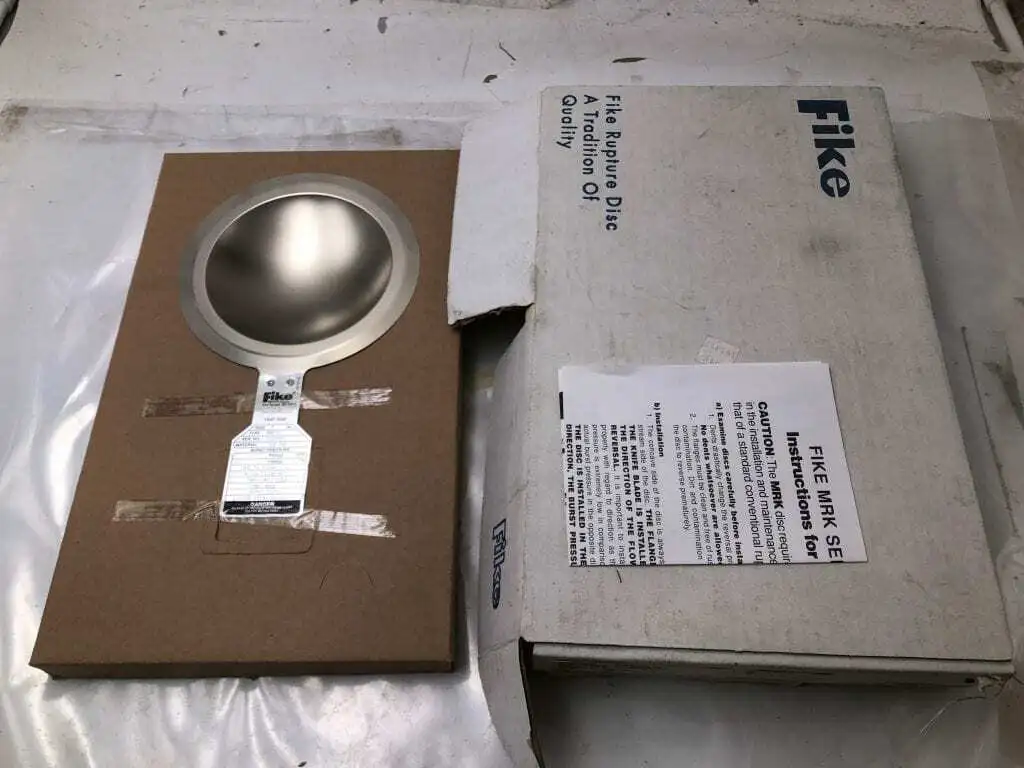

USED FIKE 56-8095-030

The Fike 56-8095-030 4″ 316SS/TEF Rupture Disc is a precision-engineered pressure relief device designed to protect piping systems, pressure vessels, and process equipment from overpressure conditions. This rupture disc is constructed with a 316 stainless steel body and TEF (PTFE-based) sealing layer, providing strong corrosion resistance and compatibility with a wide range of gases and liquids. It is designed to burst at a calibrated pressure range of approximately 101.78 / 92.62 PSIG, with an operating temperature range of 71.6°F to 149°F, ensuring reliable protection within specified process limits.
In operation, the rupture disc acts as a non-reclosing safety device installed in a pressure relief system. When system pressure exceeds the rated burst value, the disc ruptures instantly to release pressure and prevent equipment failure or hazardous overpressure events. Once activated, the disc must be replaced, making it a critical one-time-use safety component. These discs are widely used in chemical processing, oil and gas operations, pharmaceutical production, food and beverage systems, and general industrial process control where precise pressure containment and fast-acting relief are required.
Because of its stainless steel construction and PTFE sealing layer, this model is especially suited for corrosive or clean-service applications where reliability, chemical resistance, and leak-tight performance are essential.
Key Features:
Precision burst rupture disc for overpressure protection
316 stainless steel construction for corrosion resistance
PTFE (TEF) sealing layer for chemical compatibility
Non-reclosing safety device
Calibrated burst pressure for reliable system safety
Designed for piping and pressure vessel protection
Fast-acting emergency pressure relief
Specifications:
Brand: Fike
Model: 56-8095-030
Size: 4 Inch
Material: 316 Stainless Steel / PTFE
Burst Pressure: 101.78 / 92.62 PSIG
Temperature Range: 71.6°F to 149°F
Type: Forward-acting rupture disc
Function: Pressure relief safety device
Applications:
Chemical processing systems
Oil and gas pipelines
Pharmaceutical and biotech equipment
Food and beverage production systems
Industrial pressure vessels and tanks
General process safety systems

Weight: 6 lbs
Dimensions: 18 × 13 × 7 in
