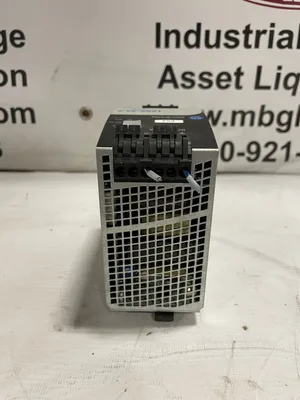

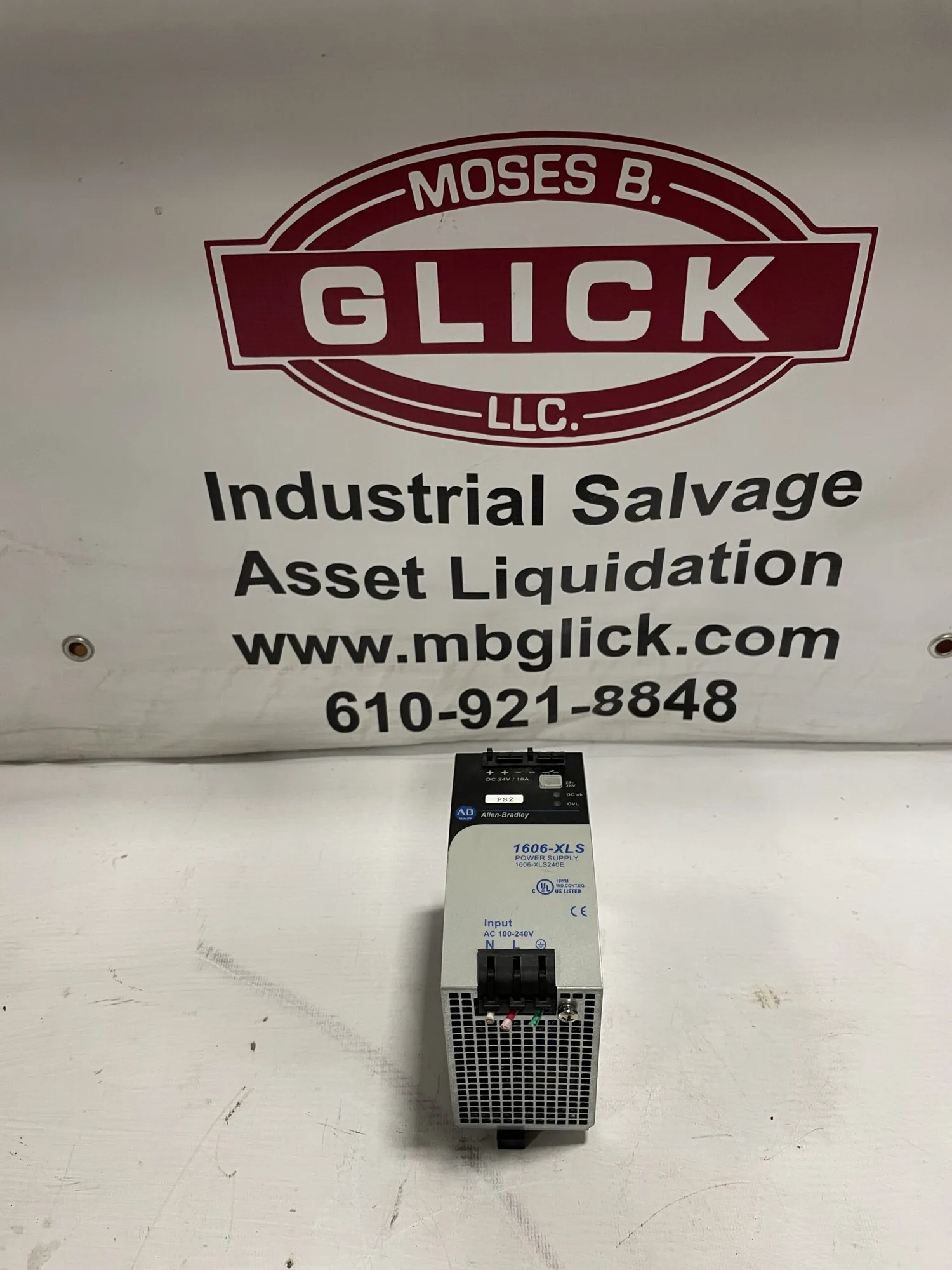

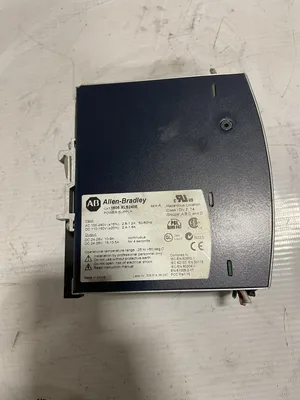

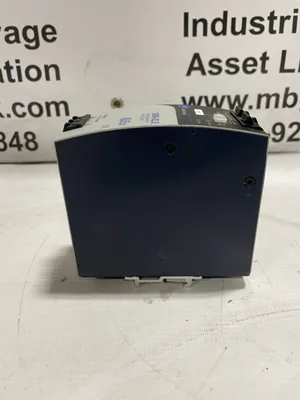

Allen Bradley 1606-XLS240E Power Supply 1606-XLS SERIES
Overview
Description
The Allen-Bradley 1606-XLS240E is an industrial-grade power supply, part of the 1606-XLS series. This series is known for its high efficiency, compact design, and suitability for demanding industrial applications.
Key Features:

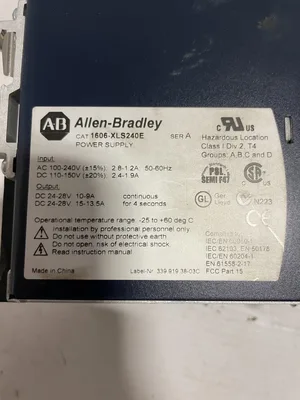

Output Power: 240W
Input Voltage Range: Typically supports both AC and DC input:
AC Input: 85-264V AC
DC Input: 88-375V DC
AC Input: 85-264V AC
DC Input: 88-375V DC
Output Voltage: 24V DC (adjustable)
Efficiency: High-efficiency design, often exceeding 90%.
Protection Features: Overload, overvoltage, and short-circuit protection.
Cooling: Convection cooling (no fans).
Operating Temperature Range: Typically supports a wide range for industrial environments.

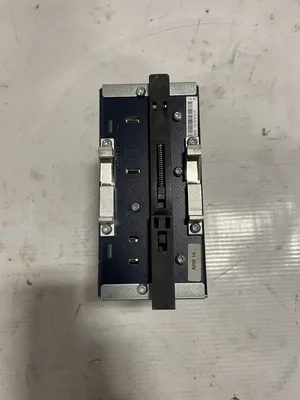

Mounting: DIN rail mountable.
Applications:
Factory automation
Process control systems
Industrial machinery
Any application requiring reliable 24V DC power.
Specifications
| Dimensions | 9 × 7 × 9 in | 9 × 7 × 9 in |
|---|---|---|
| Weight | 7 lbs | 7 lbs |
Weight: 7 lbs
Dimensions: 9 × 7 × 9 in
