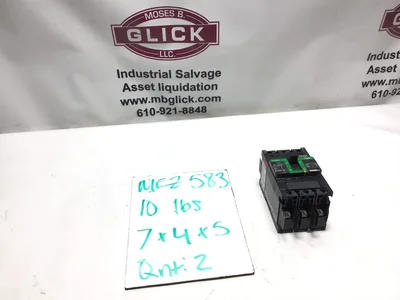

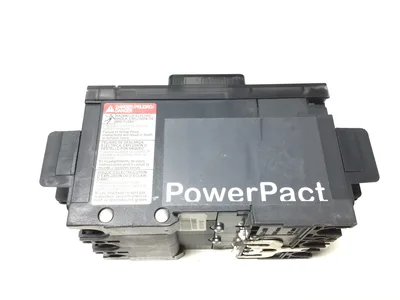

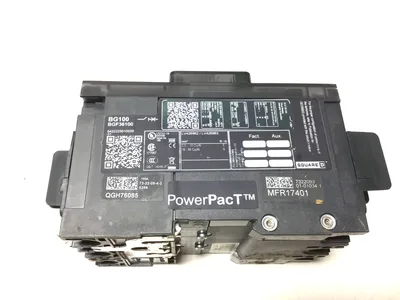

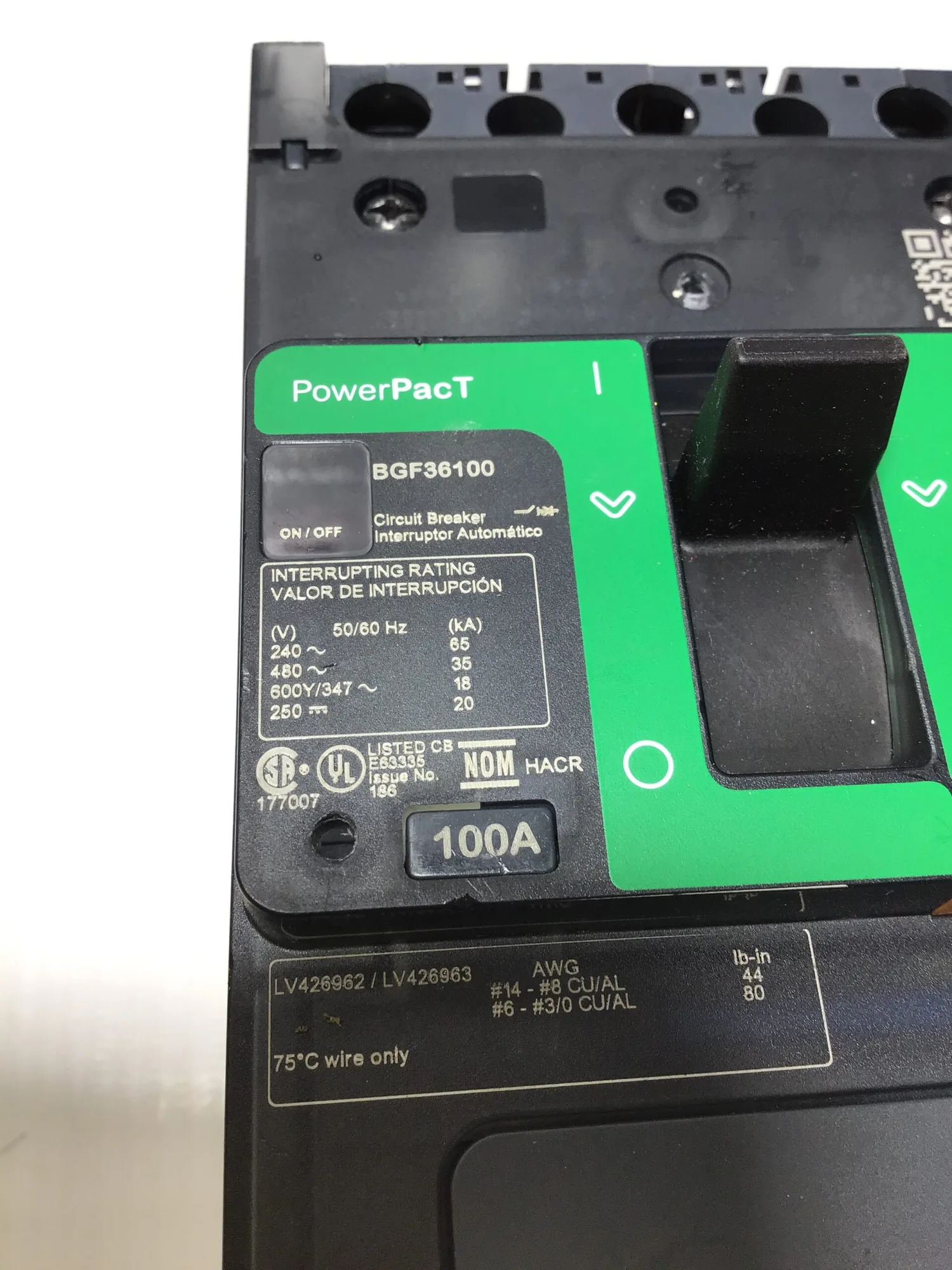

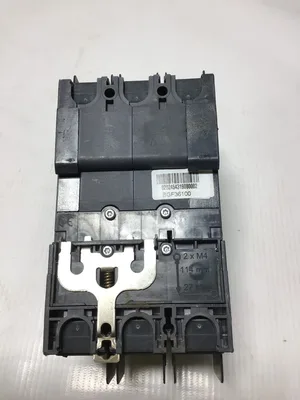

Square D BGL36100 100amp 3 Pole Circuit Breaker

The Square D BGL36100 100amp 3 Pole Circuit Breaker is a robust and reliable circuit breaker designed for industrial applications. Here are some key details:
Features:
Voltage: 600Y/347VAC
Voltage: 600Y/347VAC
Amp Rating: 100 Amps
Amp Rating: 100 Amps
Poles: 3 Pole
Poles: 3 Pole
Breaking Capacity: 35kA@480V
Breaking Capacity: 35kA@480V
Trip Unit Technology: Thermal-magnetic (Long-Time and Instantaneous Protection)
Trip Unit Technology: Thermal-magnetic (Long-Time and Instantaneous Protection)
Mounting: I-Line connection line / Lugs load
Mounting: I-Line connection line / Lugs load
Dimensions: 5.39 in H x 3.19 in W x 3.15 in D
Dimensions: 5.39 in H x 3.19 in W x 3.15 in D
Weight: 2.37 lbs
Weight: 2.37 lbs
Connection Type: Feed-Thru with EverLink connectors
Connection Type: Feed-Thru with EverLink connectors
Continuous Current Rating: 80%
Continuous Current Rating: 80%
Control Type: Toggle
Control Type: Toggle
Standards: UL 489 Listed, CSA C22.2 No. 142 Listed
Standards: UL 489 Listed, CSA C22.2 No. 142 Listed
Applications:
Industrial Power Distribution: Ideal for protecting electrical circuits in industrial settings
Industrial Power Distribution: Ideal for protecting electrical circuits in industrial settings
Commercial Use: Suitable for commercial buildings requiring reliable circuit protection
Commercial Use: Suitable for commercial buildings requiring reliable circuit protection
HVAC Systems: Ensures safe operation of HVAC electrical systems
HVAC Systems: Ensures safe operation of HVAC electrical systems

Weight: 10 lbs
Dimensions: 8 × 8 × 8 in
