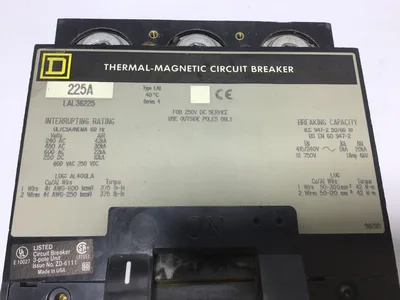

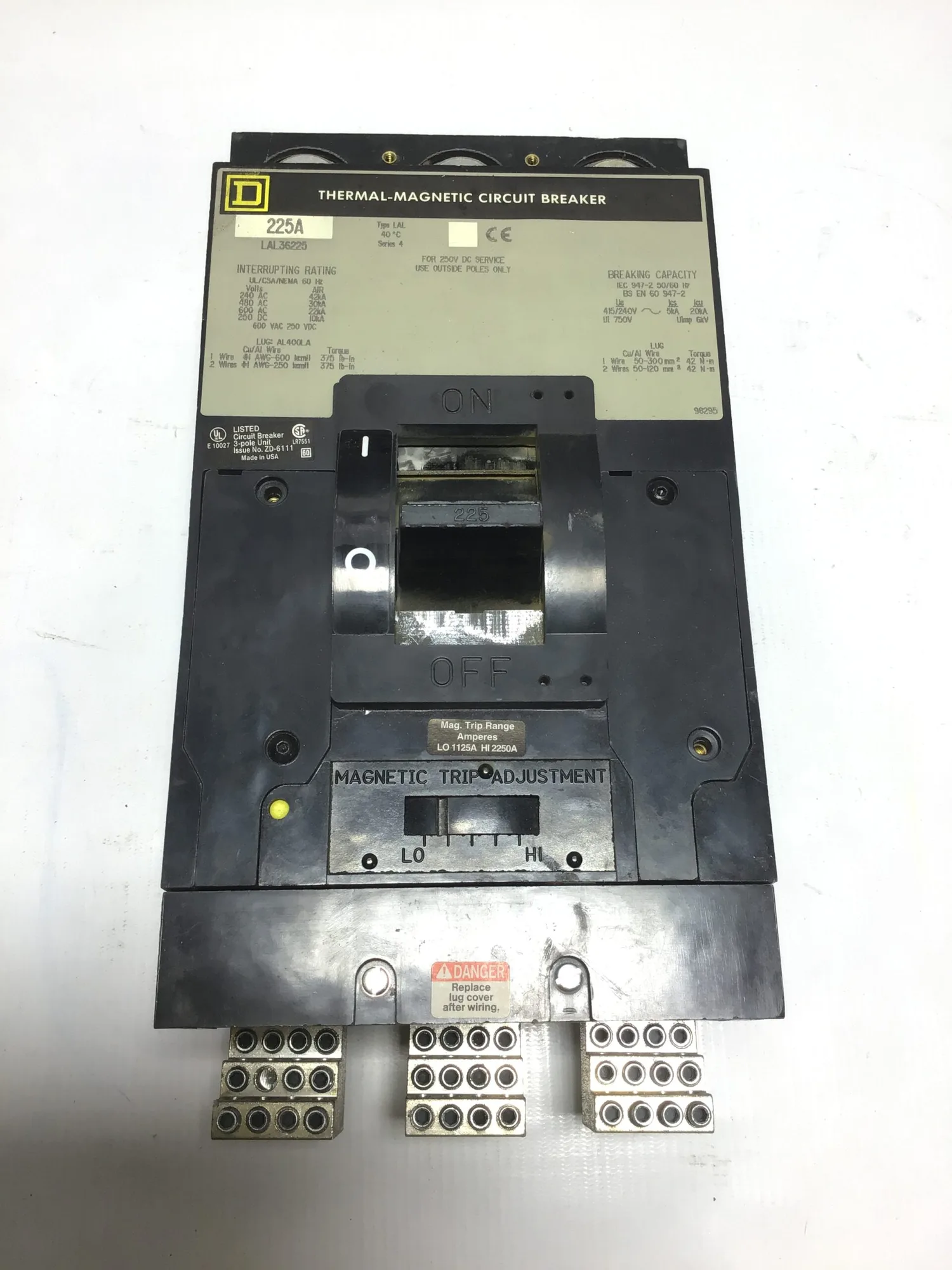

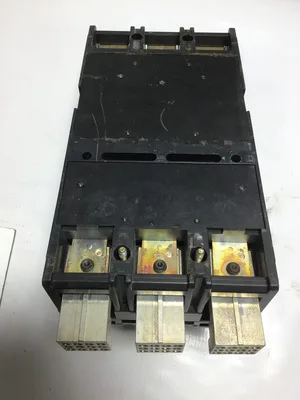

Square D Thermal Magnetic circuit breaker LAL36225 3 Pole 225A, 600V
Overview
Description
The Square D LAL36225 is a Thermal Magnetic Circuit Breaker designed for industrial applications. Here are some key specifications:
Voltage: 600V AC, 3-Pole
Voltage: 600V AC, 3-Pole
Amperage: 225A
Amperage: 225A
Interrupting Rating: 22kA at 600VAC, 10kA at 250VDC
Interrupting Rating: 22kA at 600VAC, 10kA at 250VDC
Trip Type: Thermal-Magnetic
Trip Type: Thermal-Magnetic
Mounting: Unit Mount
Mounting: Unit Mount

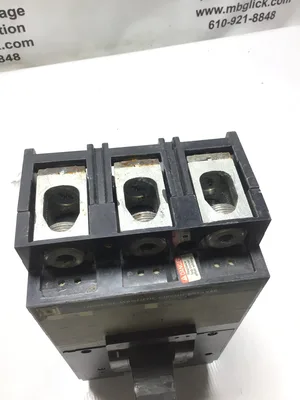

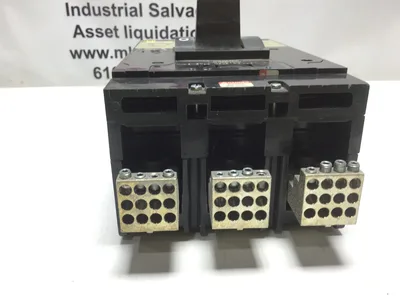

Connection Type: Lugs (Line and Load)
Connection Type: Lugs (Line and Load)
Dimensions: 5.84 in (L) x 6 in (W) x 11 in (H)
Dimensions: 5.84 in (L) x 6 in (W) x 11 in (H)
Certifications: UL 489, CSA, IEC
Certifications: UL 489, CSA, IEC
Applications: Protecting electrical circuits from overloads and short circuits in industrial settings
Applications: Protecting electrical circuits from overloads and short circuits in industrial settings
Specifications

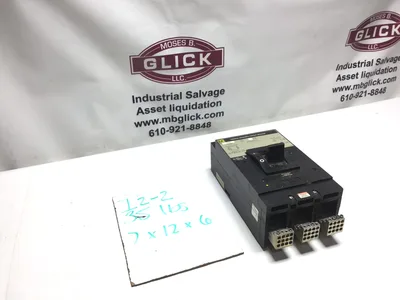

| Dimensions | 7 × 12 × 6 in | 7 × 12 × 6 in |
|---|---|---|
| Weight | 35 lbs | 35 lbs |
Weight: 35 lbs
Dimensions: 7 × 12 × 6 in
