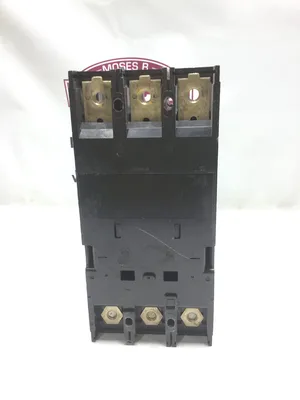

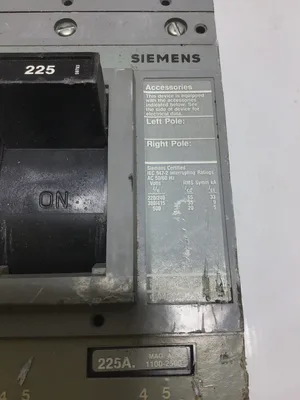

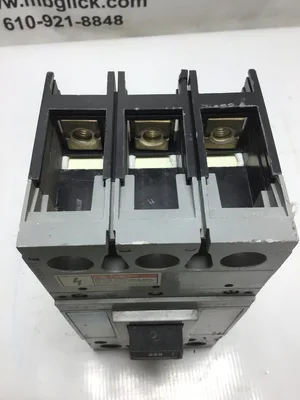

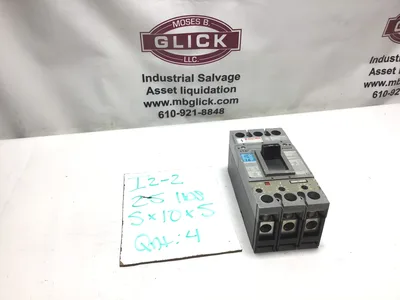

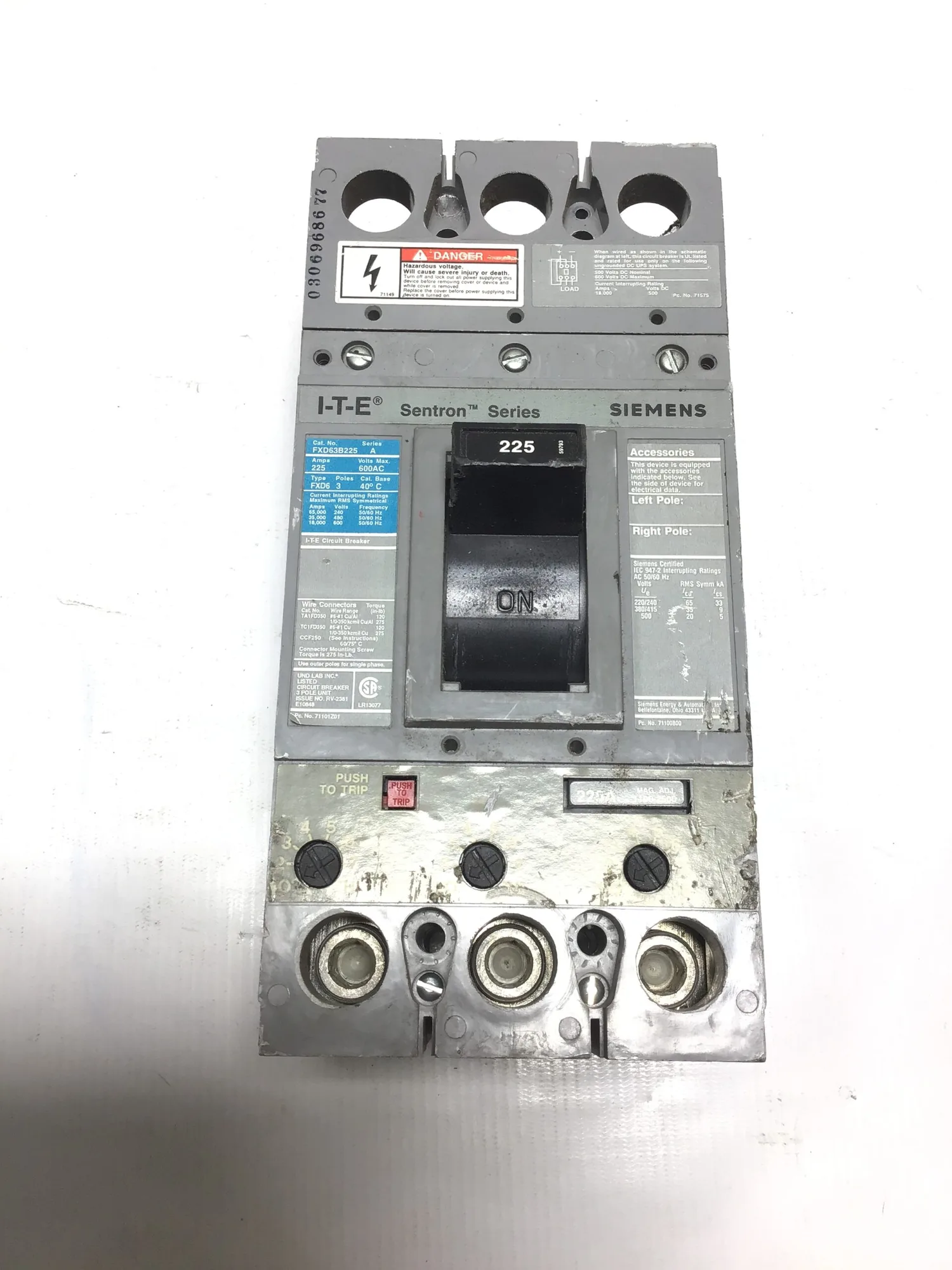

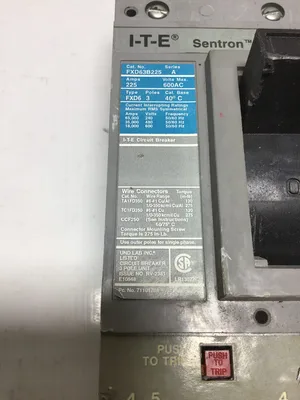

I-T-E Siemens Sentron FXD63B225 225A 3 Pole 600VAC Circuit Breaker
Overview
Description
The I-T-E Siemens Sentron FXD63B225 is a Molded Case Circuit Breaker designed for industrial applications. Here are some key specifications:
Voltage: 600V AC, 3-Pole
Voltage: 600V AC, 3-Pole
Amperage: 225A
Amperage: 225A
Trip Type: Thermal-Magnetic
Trip Type: Thermal-Magnetic
Interrupting Rating: 22kA at 600V, 35kA at 480V
Interrupting Rating: 22kA at 600V, 35kA at 480V
Mounting: Unit Mount
Mounting: Unit Mount
Dimensions: 4.5 x 9.5 x 4 inches (W x H x D)
Dimensions: 4.5 x 9.5 x 4 inches (W x H x D)
Certifications: UL 489, IEC 60947-2
Certifications: UL 489, IEC 60947-2
Special Features: No lugs installed, non-interchangeable trip unit2
Special Features: No lugs installed, non-interchangeable trip unit2
This circuit breaker provides reliable protection by combining thermal sensing for overload conditions and magnetic sensing for short circuits. It is designed to meet industry standards and ensure safety in electrical circuits
Specifications
| Dimensions | 5 × 10 × 5 in | 5 × 10 × 5 in |
|---|---|---|
| Weight | 25 lbs | 25 lbs |
Weight: 25 lbs
Dimensions: 5 × 10 × 5 in
