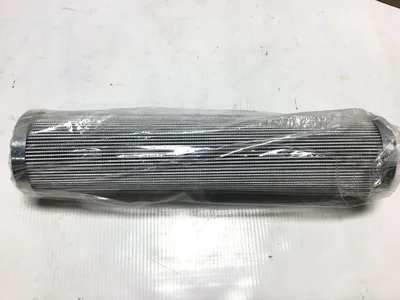

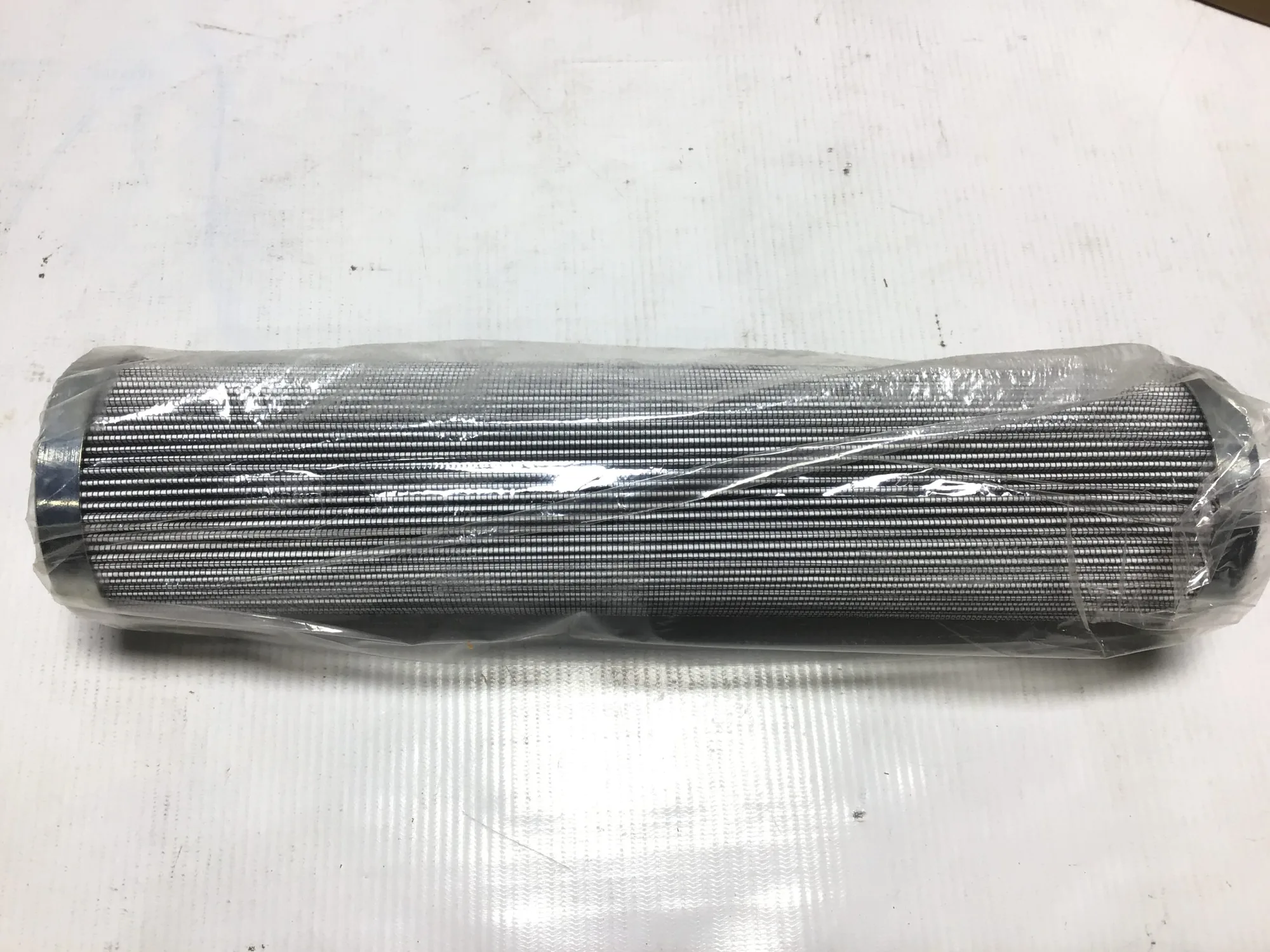

Swift Cartridge Filter Element SF9601-13-1UMV 1 Micron Microglass
Overview
Description
The Swift Cartridge Filter Element SF9601-13-1UMV is a high-performance filter designed for fine filtration applications. Here are some key specifications:
Filtration Rating: 1 micron absolute
Filtration Rating: 1 micron absolute
Media Type: Microglass, known for its durability and high efficiency
Media Type: Microglass, known for its durability and high efficiency
Dimensions: Outer Diameter (O.D.) 3.1 inches, Inner Diameter (I.D.) 1.674 inches, Overall Length (O.A.L) 12.9 inches
Dimensions: Outer Diameter (O.D.) 3.1 inches, Inner Diameter (I.D.) 1.674 inches, Overall Length (O.A.L) 12.9 inches
Maximum Pressure: 3000 PSI
Maximum Pressure: 3000 PSI
Maximum Temperature: 225°F (107°C)
Maximum Temperature: 225°F (107°C)
Seal Material: Viton O-Ring for chemical resistance
Seal Material: Viton O-Ring for chemical resistance
Applications: Suitable for filtering hydraulic fluid, water glycols, diesel, machining fluids, lubricating oil, coolants, gasoline, process fluids, turbine and compressor lube oils, synthetic lubricants, and many other chemicals
Applications: Suitable for filtering hydraulic fluid, water glycols, diesel, machining fluids, lubricating oil, coolants, gasoline, process fluids, turbine and compressor lube oils, synthetic lubricants, and many other chemicals
This filter element is designed to provide reliable performance and long service life in demanding filtration environments.
Specifications
| Dimensions | 14 × 5 × 5 in | 14 × 5 × 5 in |
|---|---|---|
| Weight | 10 lbs | 10 lbs |
Weight: 10 lbs
Dimensions: 14 × 5 × 5 in
