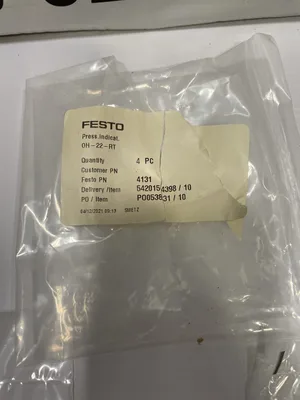

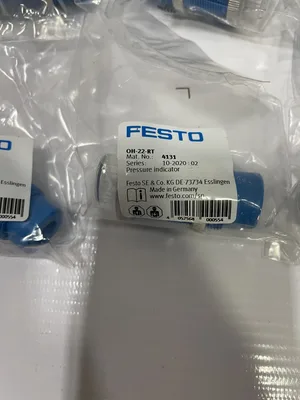

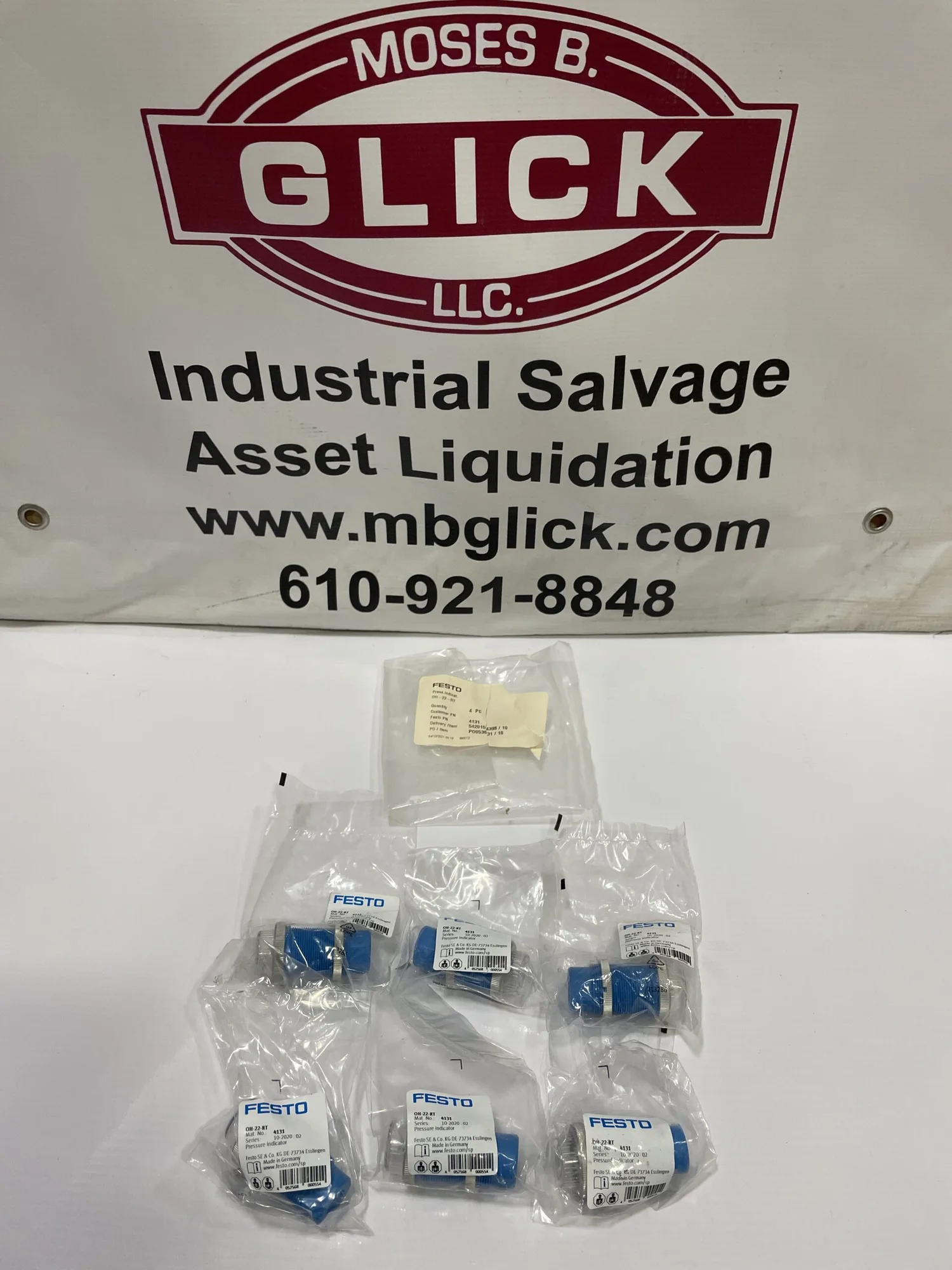

FESTO OH-22-RT Pressure Indicator 116psi 4131 -NIB lot of 6
Overview
Description
The Festo OH-22-RT is a pressure gauge designed for pneumatic applications. It operates within a pressure range of 1.4 bar to 8 bar and is compatible with compressed air as per ISO 8573-1:2010 standards. The device features a G1/8 pneumatic connection and is intended for control panel installation with a 22.5mm diameter. It can be mounted in any position and operates in ambient temperatures between -10°C and 45°C. The gauge also supports lubricated operation with oil, making it suitable for various pneumatic systems that require lubrication.
The unit is lightweight (25g) and is RoHS-compliant, adhering to the latest environmental standards. The gauge’s materials also comply with the VDMA24364-B1/B2-L standard for LABS (PWIS) conformity, ensuring its suitability in environments sensitive to contaminants.
Specifications
| Dimensions | 6 × 4 × 4 in | 6 × 4 × 4 in |
|---|---|---|
| Weight | 3 lbs | 3 lbs |
Weight: 3 lbs
Dimensions: 6 × 4 × 4 in
