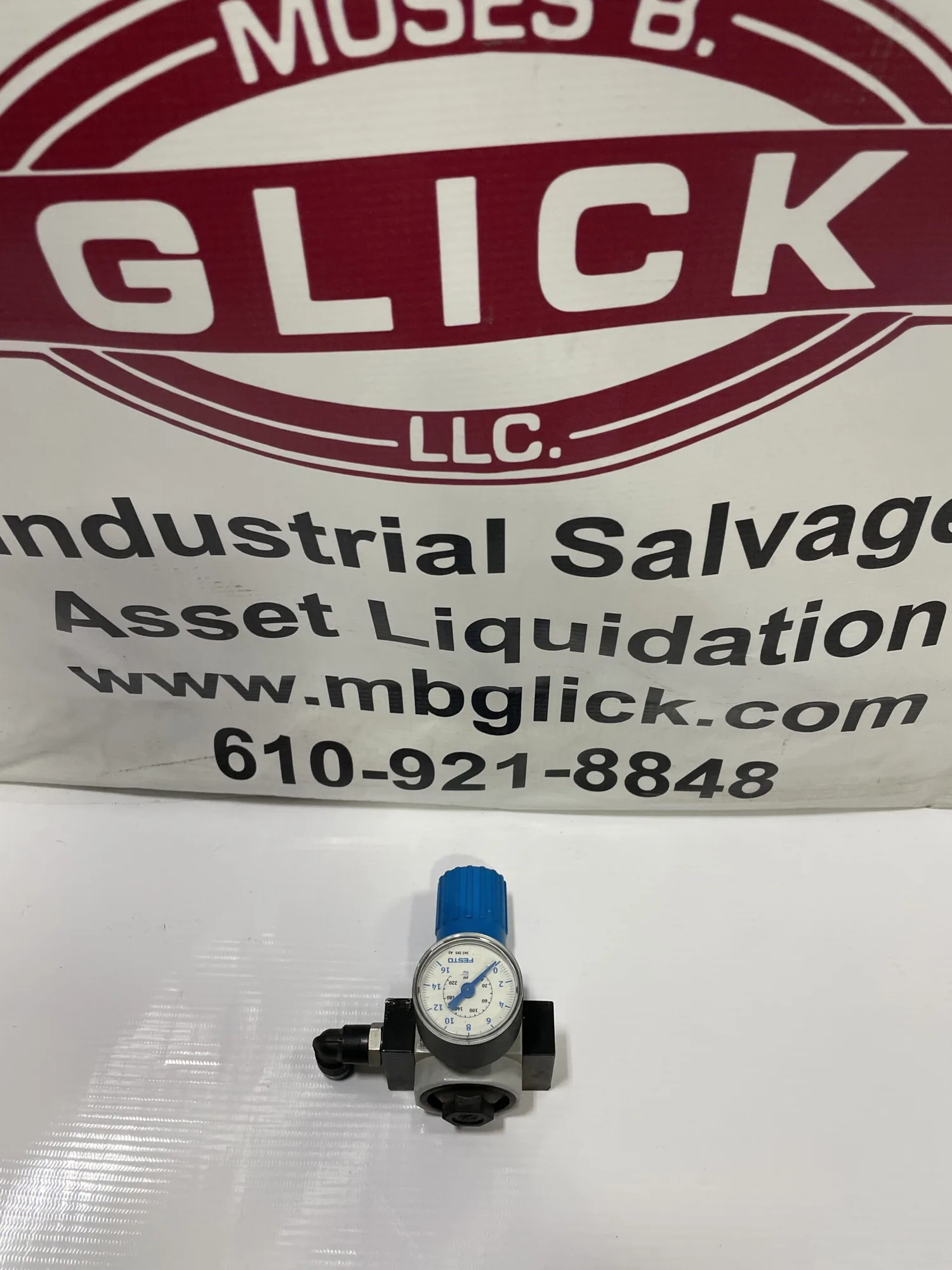

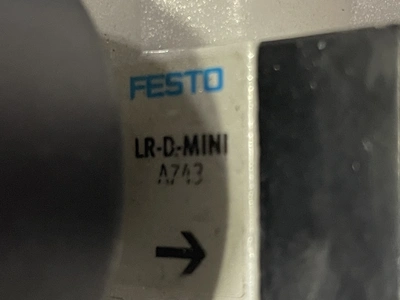

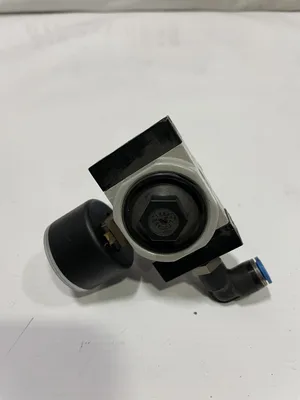

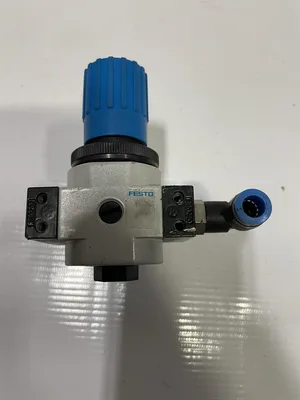

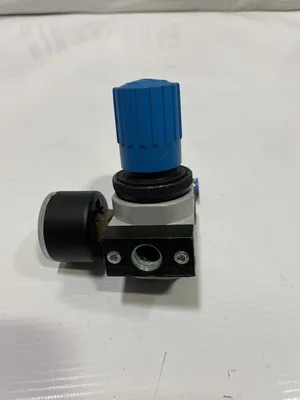

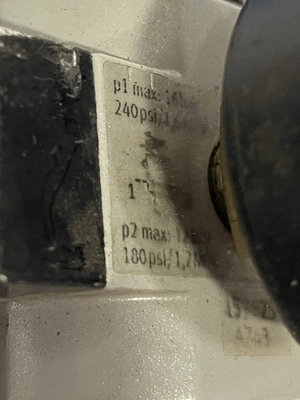

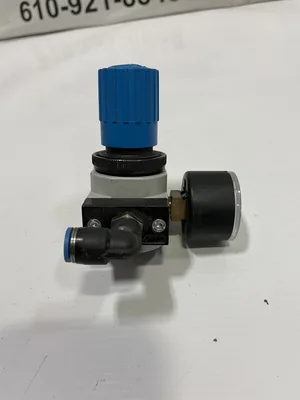

Festo LR-D-MINI Pressure Regulator 180/240psi

The Festo LR-D-MINI is a miniature air pressure regulator from the D series, designed for compressed air and inert gases. It features a directly actuated diaphragm regulator with an output pressure range of 0.5 to 12 bar and an operating pressure range of 1 to 16 bar. It is equipped with a rotary knob with detent for precise adjustment and has an optional pressure gauge (analog) or digital display. The regulator supports G1/8 connections and is made from die-cast zinc for durability.
Other key specifications:
Operating Medium: Compressed air (ISO 8573-1:2010 [7:4:4])
Temperature Range: 14°F to 140°F (-10°C to 60°C)
Mounting Options: Front panel or in-line installation
Max Pressure Hysteresis: 0.2 bar

Weight: 6 lbs
Dimensions: 8 × 8 × 8 in
