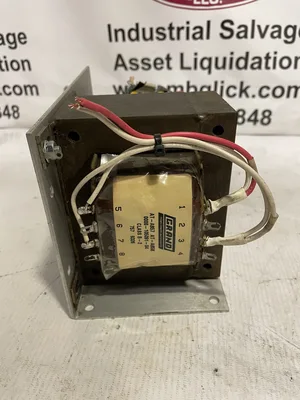

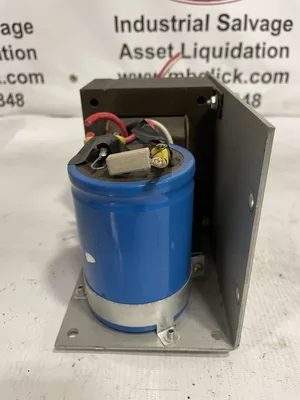

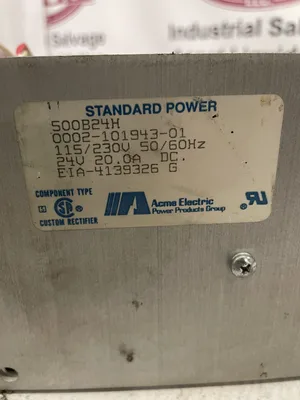

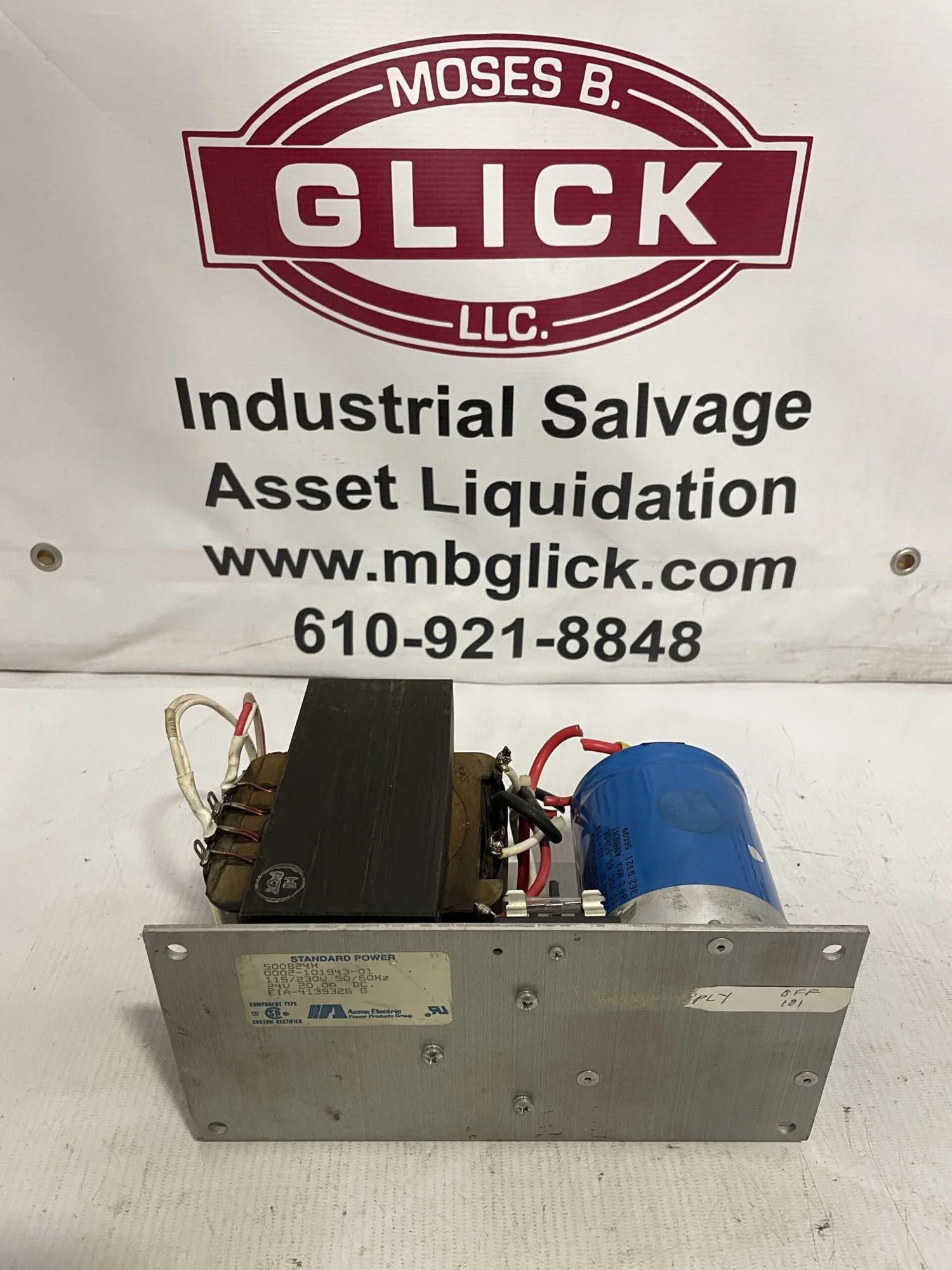

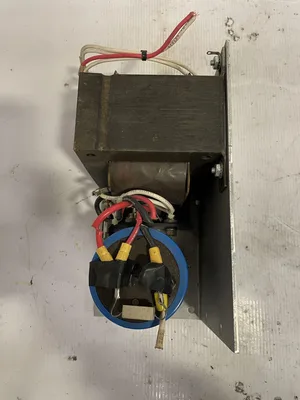

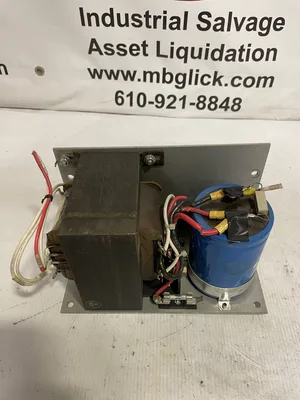

Acme Electric 500B24H Standard Power Transformer 0002-101943-01 115/230V 24V

The Acme Electric 500B24H is an industrial control transformer designed to provide a reliable and stable low-voltage power source for control circuits, relays, solenoids, and other industrial devices. Below are the detailed specifications and features:
Specifications
Power Rating:

500 VA (Volt-Amps): This defines the load capacity of the transformer.
500 VA (Volt-Amps): This defines the load capacity of the transformer.
Primary Voltage:

Dual primary voltage options: 240V / 480V AC, allowing flexibility for different electrical systems.
Dual primary voltage options: 240V / 480V AC, allowing flexibility for different electrical systems.
Secondary Voltage:

24V AC output for low-voltage control applications.
24V AC output for low-voltage control applications.
Frequency:

Designed for 50/60 Hz operation, making it compatible with global power standards.
Designed for 50/60 Hz operation, making it compatible with global power standards.
Insulation:

High-quality insulation designed to ensure safety and reliability.
High-quality insulation designed to ensure safety and reliability.
Encapsulation:

Encased in epoxy resin to protect the internal components from moisture, dirt, and other contaminants.
Encased in epoxy resin to protect the internal components from moisture, dirt, and other contaminants.
Key Features
Durable Construction:

Built to withstand harsh industrial environments.
Voltage Flexibility:

Dual voltage inputs make it adaptable to various power sources.
Compact Design:

Small footprint for easy integration into control panels and systems.
Compliance:

Meets or exceeds standards like UL, CSA, and CE, ensuring high levels of safety and performance.

Weight: 30 lbs
Dimensions: 13 × 10 × 9 in
