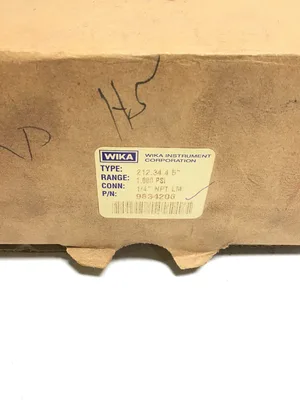

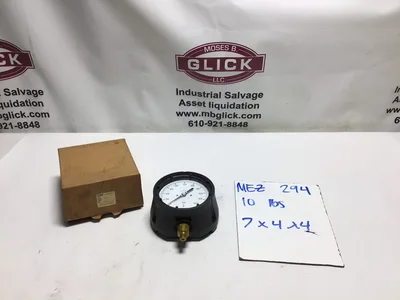

Wika 4.5″ Pressure Gauge 212.34 1000 PSI 1/4″ NPT LM 9834206
Overview
Description

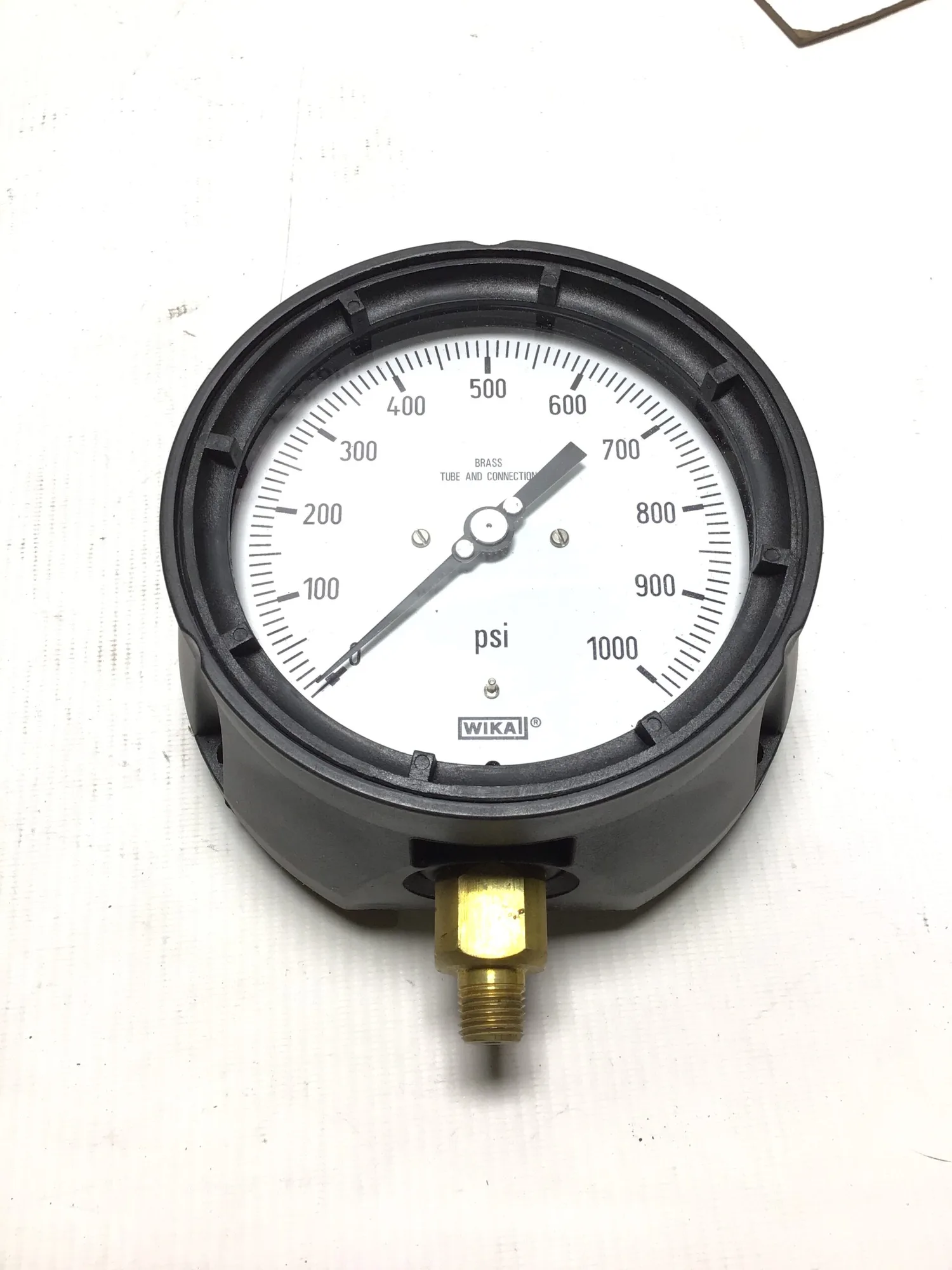

The WIKA 212.34 series pressure gauge, model 9834206, is a 4.5-inch dial gauge designed for industrial applications requiring precise pressure measurement.
Key Features:
Dial Size: 4.5 inches (115 mm)
Pressure Range: 0 to 1,000 psi

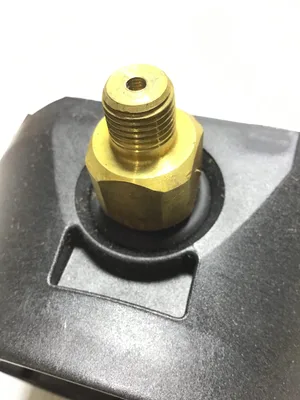

Connection Size: 1/4-inch NPT
Mounting Type: Lower mount (LM)
Case Material: Fiberglass-reinforced thermoplastic
Lens Material: Acrylic
Accuracy: ±0.5% of span (ASME B40.100 Grade 2A)
Operating Temperature: Up to 150°F (65°C)
Specifications:
Model Number: 9834206
Manufacturer: WIKA
Case Filling: Dry case (no liquid fill)
Dial Color: White with black lettering
Pointer Color: Black
Wetted Parts Material: Brass
This gauge is suitable for applications where a durable, accurate pressure measurement is required, such as in hydraulic systems, pumps, and tanks.
Specifications
| Dimensions | 7 × 4 × 4 in | 7 × 4 × 4 in |
|---|---|---|
| Weight | 10 lbs | 10 lbs |
Weight: 10 lbs
Dimensions: 7 × 4 × 4 in
