KUKA QUANTEC Series Robot – Mounting Base Plate Pads – Kit

The mounting base is required for installation of the robot on the floor with the capability of exchange and leveling.

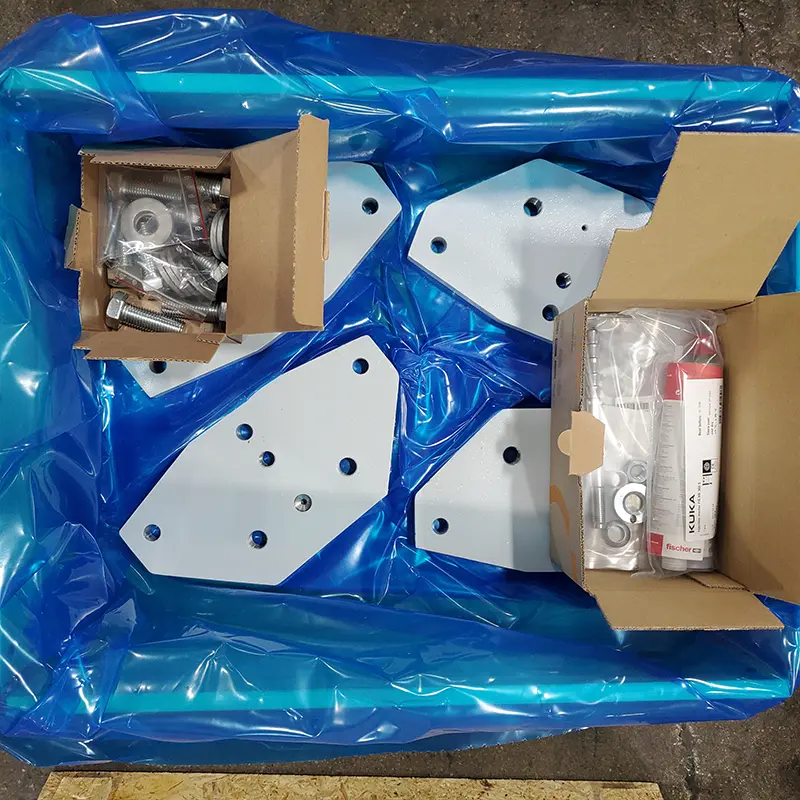

The mounting base consists of:

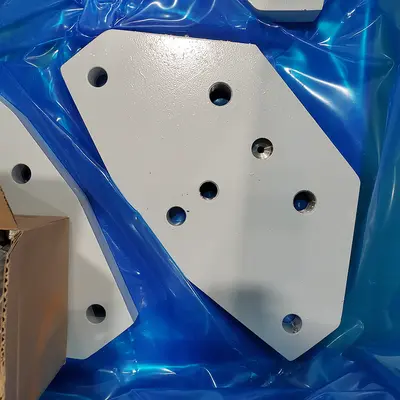

Plate

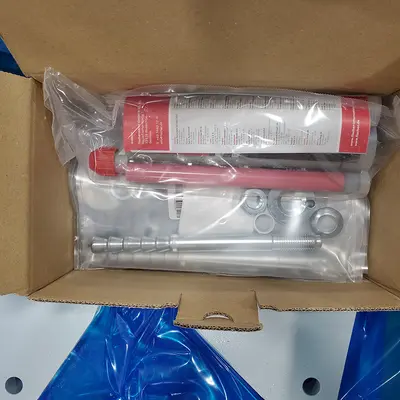

Chemical anchors (resin-bonded anchors) with Dynamic Set

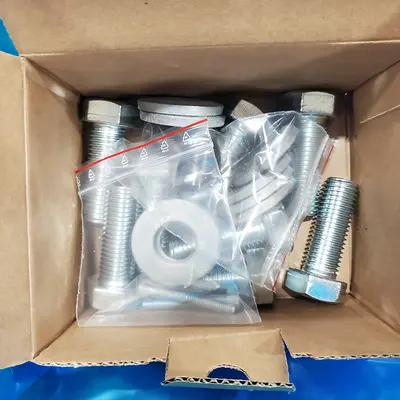

Fastening elements
This mounting variant requires a level and smooth surface on a concrete foundation with adequate load bearing capacity. The concrete foundation must be able to accommodate the forces occurring during operation. The minimum dimensions must be observed.
For use with KUKA QUANTEC Series Robots:
KR 120 R2700-2, R2700-2 F
KR 120 R3100-2, R3100-2 F
KR 120 R3500-2 P
KR 120 R3900-2 K
KR 140 R3200-2 PA
KR 150 R2700-2, R2700-2 F
KR 150 R3100-2, R3100-2 F
KR 180 R2900-2, R2900-2 F
KR 180 R3200-2 PA
KR 180 R3500-2 K, R3500-2 K-F
KR 210 R2700-2, R2700-2 C01, R2700-2 F
KR 210 R3100-2, R3100-2 F
KR 210 R3300-2 K, R3300-2 K-F
KR 240 R2900-2, R2900-2 F
KR 240 R3200-2 PA
KR 250 R2700-2, R2700-2 F
KR 270 R3100-2 K, R3100-2 K-F
KR 300 R2700-2, R2700-2 F
CONDITION: NEW

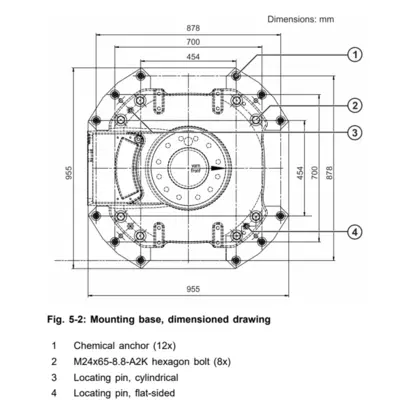

Click here for complete KUKA QUANTEC Robot Mounting Base Specs
