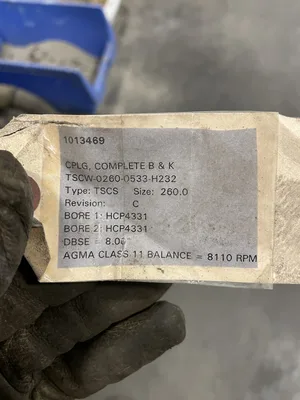

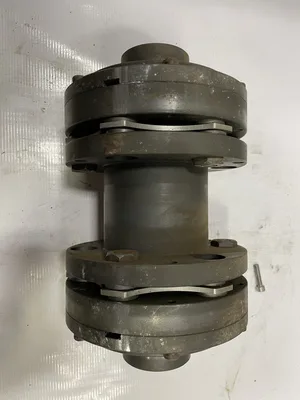

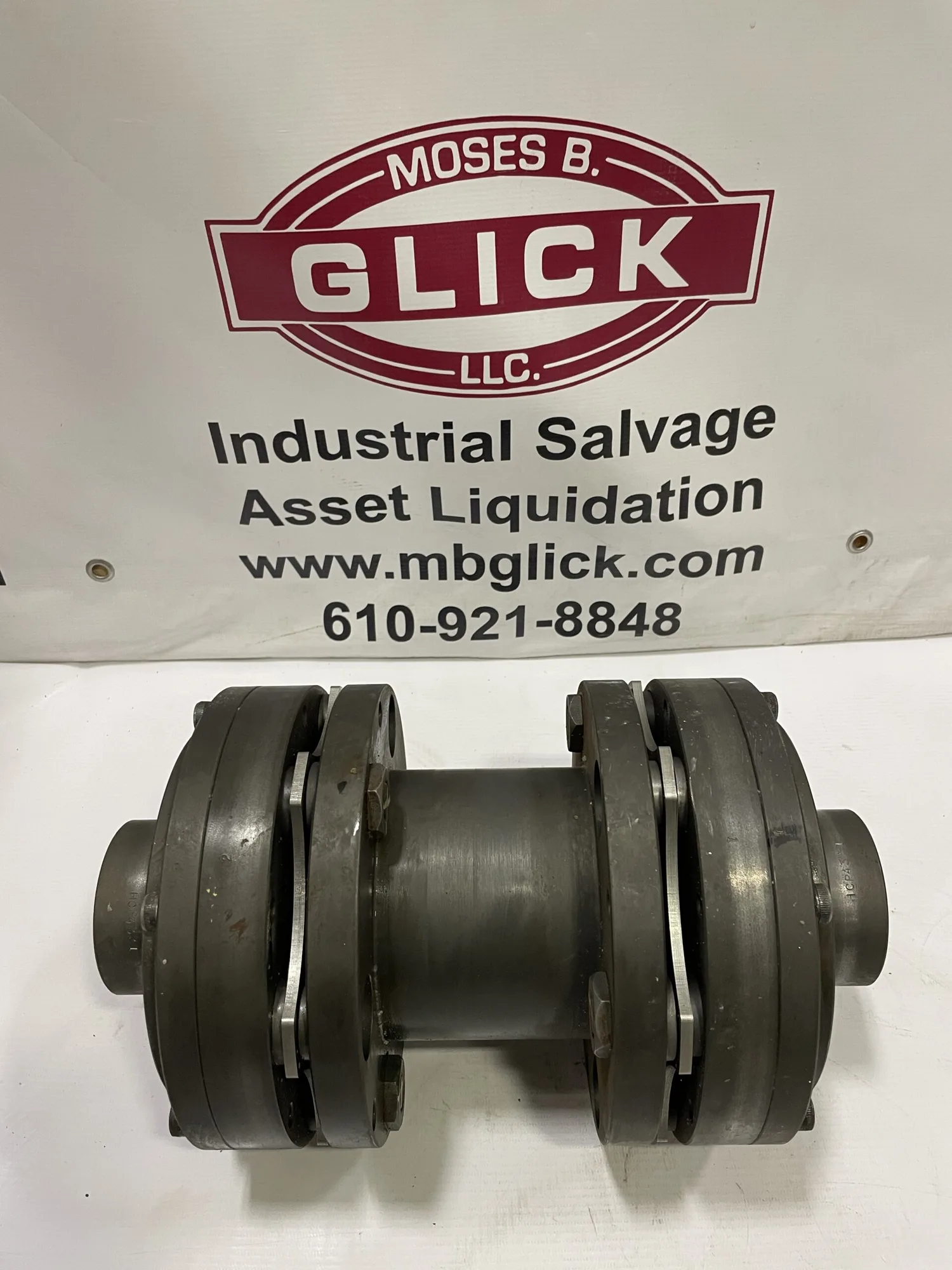

John Crane Metastream Coupling 1013469 TSCW-0260-0533-H232 Size 260.0 x 8”
Overview
Description

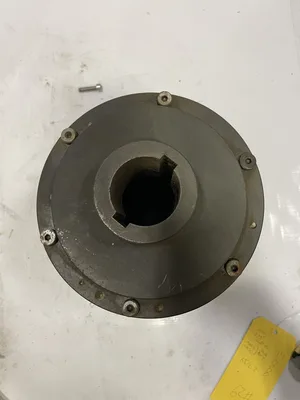

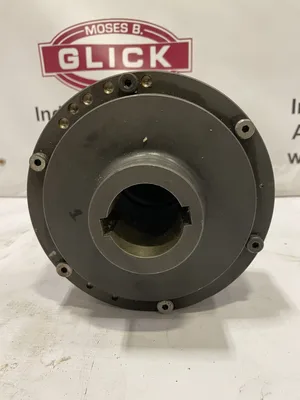

HAS A SHAFT BORE DIAMETER OF APPROXIMATELY 1.975”
The John Crane Metastream Coupling 1013469 is part of the TDC/TSC/TLC series, which are metallic membrane (disc) couplings designed for medium to high torque applications. These couplings feature scalloped stainless steel flexible membranes that provide high misalignment capability while maintaining balance integrity. They comply with API 610 (ISO 13709) and ISO 14691 standards, making them ideal for use in oil and gas, power generation, and industrial applications.
Key Specifications:
Maximum Torque: Up to 4,141,300 lb-in continuous torque
Peak Torque Capacity: 8,282,600 lb-in
Speed Limit: Up to 25,500 RPM
Maximum Shaft Bore: 19.5 inches
Material: Stainless steel flexible membranes for extended life
Features:
Intrinsic balance (AGMA class 9) for reduced vibration
Anti-fly retention system for added safety in case of failure
Overload protection collars for torsional overload
Compression & jacking bolts for easy installation and removal
Applications:
Process pumps
Electric motors
Gearboxes
Centrifugal & other compressors
Steam turbines
Marine propulsion systems
Crude oil pipeline pumps
High-speed pump & gearbox applications
Specifications
| Dimensions | 18 × 12 × 12 in | 18 × 12 × 12 in |
|---|---|---|
| Weight | 72 lbs | 72 lbs |
Weight: 72 lbs
Dimensions: 18 × 12 × 12 in
