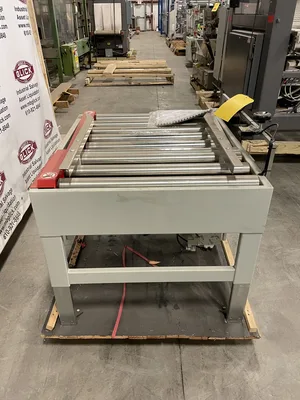

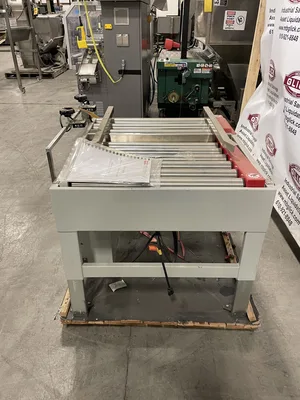

BestPack ARX20 Case Sealer Carton Indexer 110V 1PH 34.3” x 34.2” x 32”
Overview
Description
34.3” x 34.2” x 32” MACHINE DIMENSIONS
The BestPack ARX20 is a uniform carton indexing system designed to work in conjunction with BestPack’s fully automatic carton sealers. It ensures proper spacing and timing of cartons to optimize top flap folding and sealing without jams.
Key Features:
Carton Compatibility: Handles carton sizes ranging from 8.0″ to 27.5″ (L), 6.0″ to 21.0″ (W), and 6.0″ to 20.0″ (H).
Speed: Can process up to 57 cartons per minute.

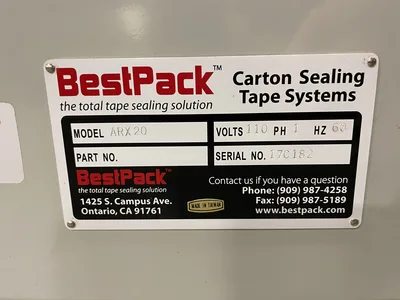

Power Requirements: Runs on 110V, 60Hz.
Air Requirements: Uses 50 PSI, 2 SCFM.
Construction: Heavy-duty 2mm welded steel frame for durability.

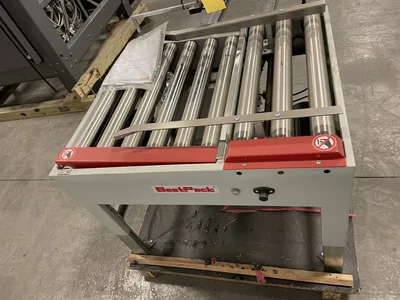

Indexing Mechanism: Two-section powered rollers with a “drop and stop” feature for precise carton spacing.
Adjustable Timer: Controls carton spacing to align with downstream equipment like labelers or palletizers.
No Operator Required: Works automatically with uniform cartons.
Additional Options:
Locking Casters for easy mobility.
Spare Tape Head to minimize downtime.
Leg Extensions to adjust conveyor pass-through height.
Safety Gates for operator protection.
Specifications
| Dimensions | 35 × 38 × 36 in | 35 × 38 × 36 in |
|---|---|---|
| Weight | 260 lbs | 260 lbs |
Weight: 260 lbs
Dimensions: 35 × 38 × 36 in
