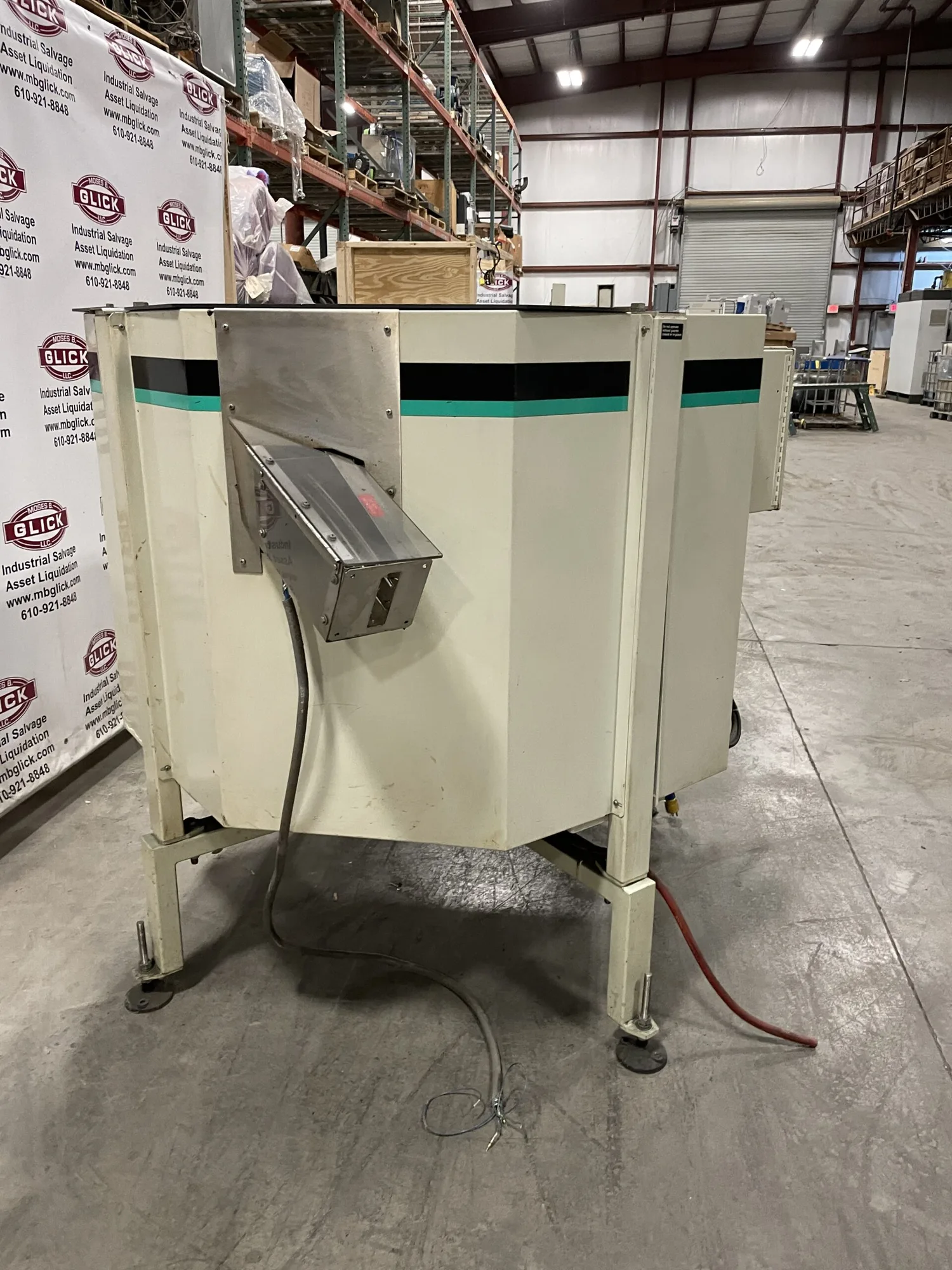

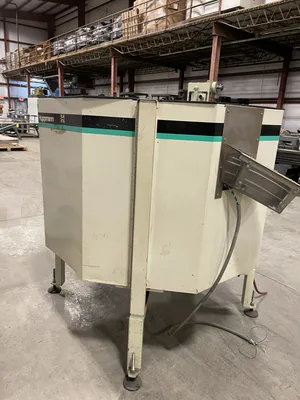

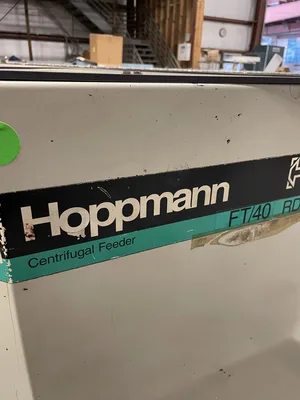

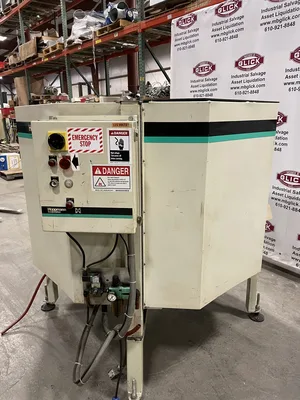

Hoppmann FT/40 RD Centrifugal Cap Feeder

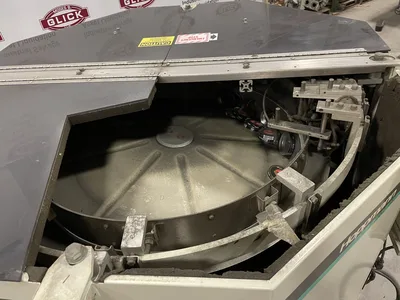

The Hoppmann FT/40 RD Centrifugal Feeder is designed for high-speed product orientation and feeding. It features a stainless steel exterior, an FDA-approved ABS vacuum-formed disc, and a Teflon hard-coated anodized aluminum bowl. The feeder accepts bulk product, singulates and orients it, and delivers it in the correct orientation to downstream operations.
Specifications:
Maximum Bowl Linear Speed: 255 ft/min (78 m/min)
Motor: 1/2 hp (DC 90V or AC 230/460V)
Total Weight: ~850 lbs (385 kg)
Bowl Inside Diameter: 36.25” (921 mm)
Overall Height: 47” ± 1.5” (1194 ± 38 mm)
Discharge Height: 36” ± 2” (914 ± 51 mm)
Optional Features:
Polycarbonate safety covers
Dual motor drive system
Washdown motor(s)
NEMA 1 encased controller

Weight: 936 lbs
Dimensions: 72 × 62 × 63 in
