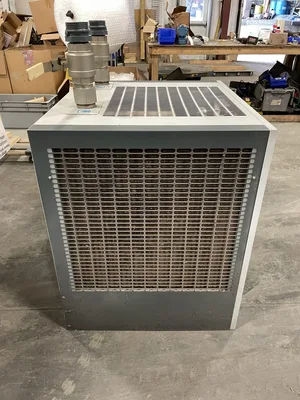

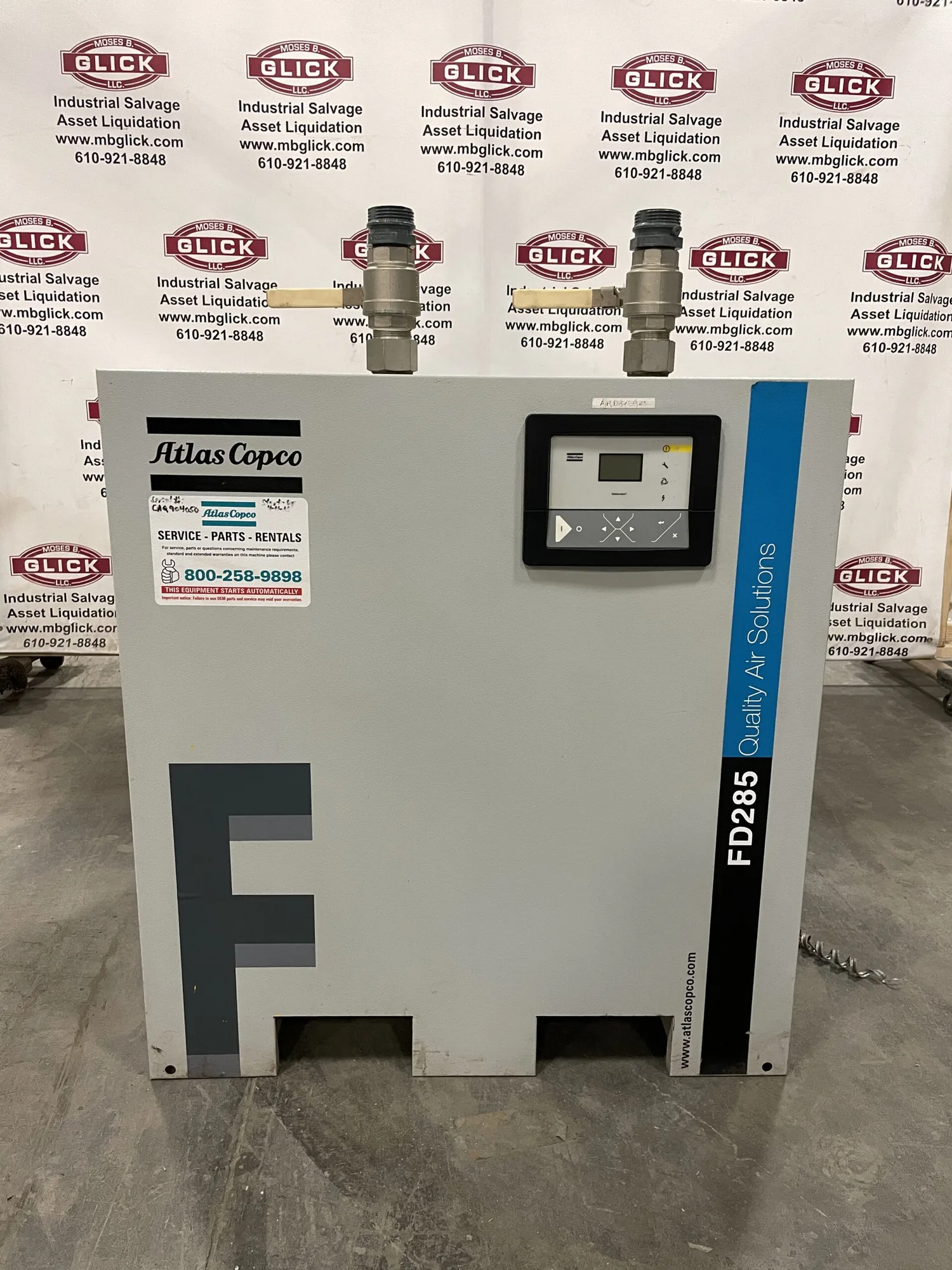

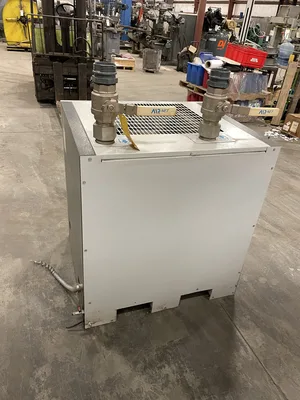

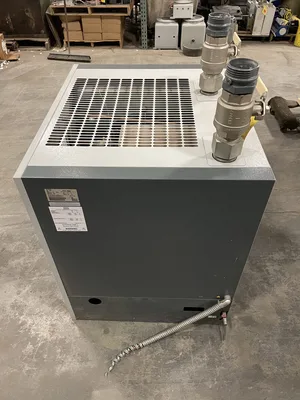

2016 Atlas Copco FD285 Refrigerated Compressed Air Dryer
Overview
Description
The Atlas Copco FD 285 is a high-capacity refrigerated air dryer designed for industrial applications requiring up to 653 CFM of clean, dry compressed air. It utilizes direct expansion technology and is equipped with Saver-Cycle control, making it suitable for environments with varying loads and temperatures.
Key Specifications
Model: FD 285 Saver-Cycle Cycling Refrigerated Air Dryer
Model: FD 285 Saver-Cycle Cycling Refrigerated Air Dryer
Air Flow Capacity: Up to 653 CFM (at 100% load)
Air Flow Capacity: Up to 653 CFM (at 100% load)
Voltage: 460V, 3-phase, 60 Hz
Voltage: 460V, 3-phase, 60 Hz
Refrigerant: R410A, known for its high efficiency and low environmental impact
Refrigerant: R410A, known for its high efficiency and low environmental impact
Dew Point: Stable dew point as low as 37.4°F (3°C)
Dew Point: Stable dew point as low as 37.4°F (3°C)
Dimensions: 36″ L × 32″ W × 39″ H
Dimensions: 36″ L × 32″ W × 39″ H
Weight: Approximately 434 lbs
Weight: Approximately 434 lbs
Connections: 2½” NPT inlet and outlet
Connections: 2½” NPT inlet and outlet
Control System: Mk5 controller for fixed-speed models; Elektronikon® Touch controller with remote monitoring capabilities for VSD models
Control System: Mk5 controller for fixed-speed models; Elektronikon® Touch controller with remote monitoring capabilities for VSD models
Specifications
| Dimensions | 44 × 37 × 54 in | 44 × 37 × 54 in |
|---|---|---|
| Weight | 476 lbs | 476 lbs |
Weight: 476 lbs
Dimensions: 44 × 37 × 54 in
