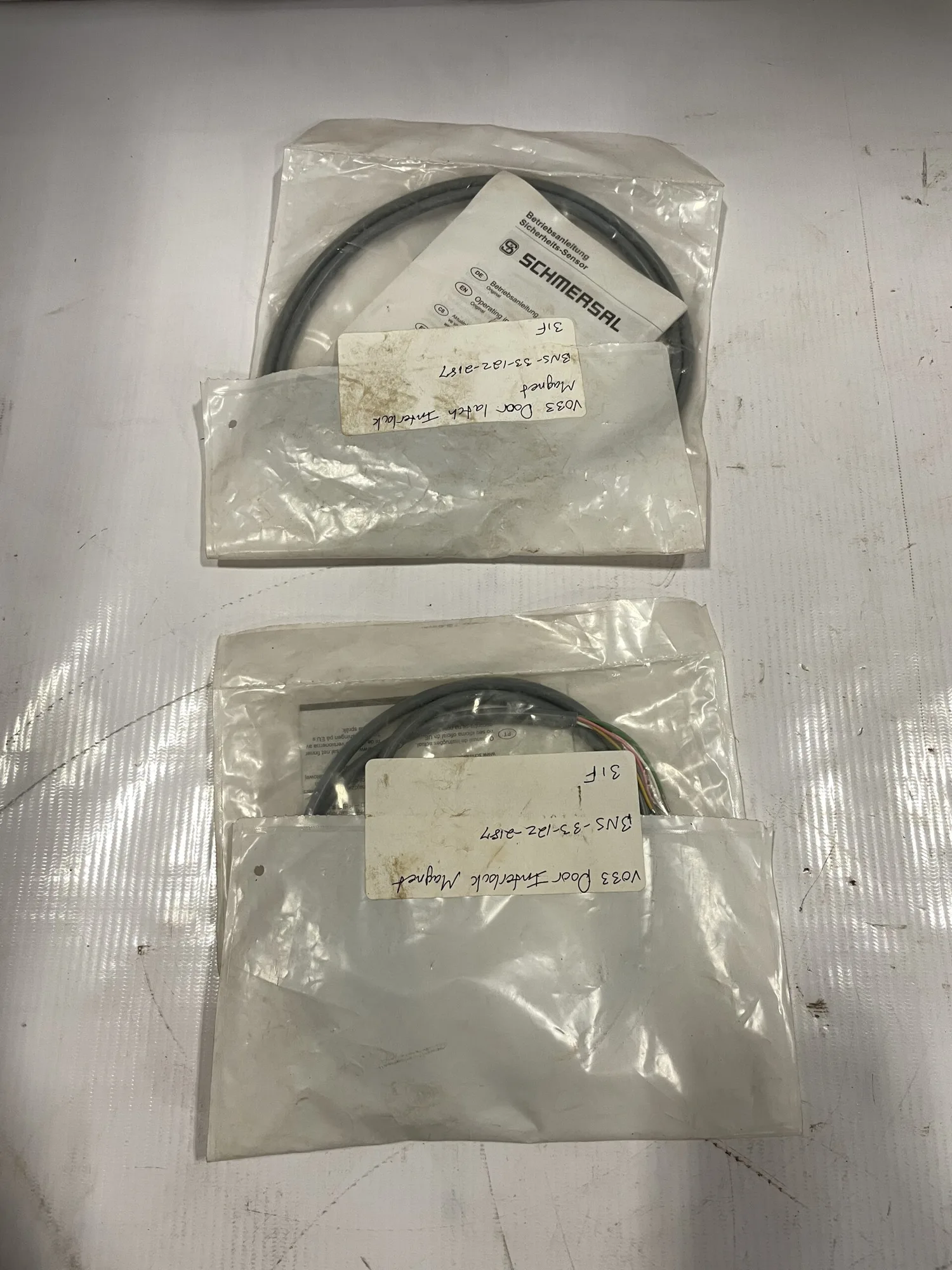

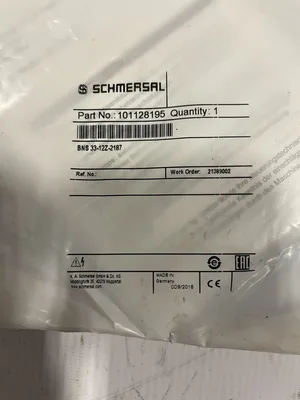

New Schmersal 101128195 Magnetic Safety Sensor -NIB lot of 2
Overview
Description
Key Specifications
Contact Configuration: 1 Normally Open (NO) and 2 Normally Closed (NC) reed contacts
Contact Configuration: 1 Normally Open (NO) and 2 Normally Closed (NC) reed contacts
Housing: Glass-fiber reinforced thermoplastic
Housing: Glass-fiber reinforced thermoplastic
Dimensions: 88 mm (L) × 25 mm (W) × 13 mm (H)
Dimensions: 88 mm (L) × 25 mm (W) × 13 mm (H)
Cable: 1-meter PVC cable
Cable: 1-meter PVC cable
Degree of Protection: IP67
Degree of Protection: IP67
Operating Temperature: -25°C to +70°C
Operating Temperature: -25°C to +70°C
Switching Voltage: Up to 100 VDC
Switching Voltage: Up to 100 VDC
Switching Current: Max 0.25 A
Switching Current: Max 0.25 A
Switching Capacity: 3 W
Switching Capacity: 3 W
Shock Resistance: 30 g / 11 ms
Shock Resistance: 30 g / 11 ms
Vibration Resistance: 10–55 Hz, amplitude 1 mm
Vibration Resistance: 10–55 Hz, amplitude 1 mm
Mounting: Not flush; insensitive to transverse misalignment
Mounting: Not flush; insensitive to transverse misalignment
Standards Compliance: EN 60947-5-3, EN ISO 14119
Standards Compliance: EN 60947-5-3, EN ISO 14119
Specifications
| Dimensions | 10 × 11 × 6 in | 10 × 11 × 6 in |
|---|---|---|
| Weight | 5 lbs | 5 lbs |
Weight: 5 lbs
Dimensions: 10 × 11 × 6 in
