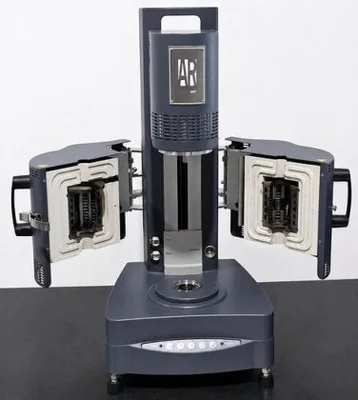

The TA Instruments AR 2000ex Rheometer is a high-performance rotational rheometer designed to measure the flow and deformation behavior of materials under controlled stress, strain, and shear conditions. It is widely used for advanced rheological characterization of liquids, polymers, gels, pastes, and semi-solid materials.
The system features a low-inertia drag-cup motor, air-bearing support, and advanced environmental control systems, enabling highly sensitive measurements across a wide temperature and viscosity range. It supports both steady shear and oscillatory testing modes for comprehensive material analysis.
Key Highlights
- Controlled Stress and Controlled Rate rheology modes
- Ultra-low inertia drag-cup motor for high sensitivity
- Air bearing system for minimal friction and high precision
- Wide temperature capability (approx. -40°C to 600°C with accessories)
- Supports oscillation, creep, and flow curve measurements

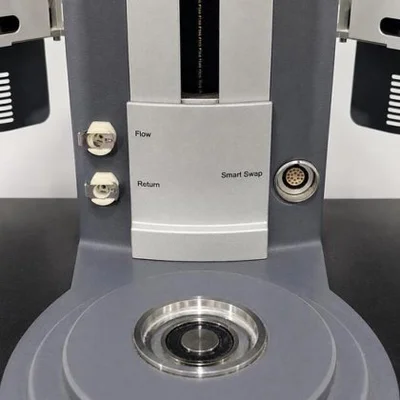

- Smart Swap™ quick-change geometry system
- Suitable for fluids, polymers, gels, and solids
Applications / Uses
- Polymer melt and solution characterization
- Pharmaceutical formulation rheology
- Food and beverage texture/flow analysis
- Paints, coatings, and adhesives testing
- Petrochemical and materials research
- Academic and industrial R&D laboratories
Typical Specifications (Summary)
- Torque range: ~0.1 µN·m to 200 mN·m
- Angular velocity: up to ~300 rad/s
- Frequency range: up to ~628 rad/s
- Temperature range: approx. -40°C to 600°C (with accessories)
- Normal force range: ~0.005 to 50 N
- High-resolution displacement and torque control system
- Multiple geometry options: cone-plate, parallel plate, cylinder
Typical Configuration Includes
- AR 2000ex rheometer main unit
- Control electronics and interface unit
- Motor and air-bearing drive system

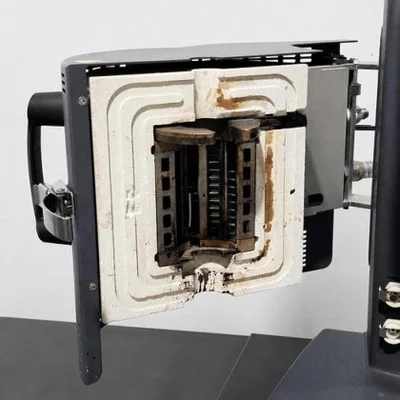

- Peltier plate or environmental test chamber (optional)
- Sample geometries (cone, plate, cylinder sets)
- Software control workstation
- Temperature control accessories
- Calibration and maintenance kit
Sameer Khanna
Sales Manager - BionexScientificUSA
(732) 672-5380Show moreShow lessClick to Request More Info
Type: Rheometers
